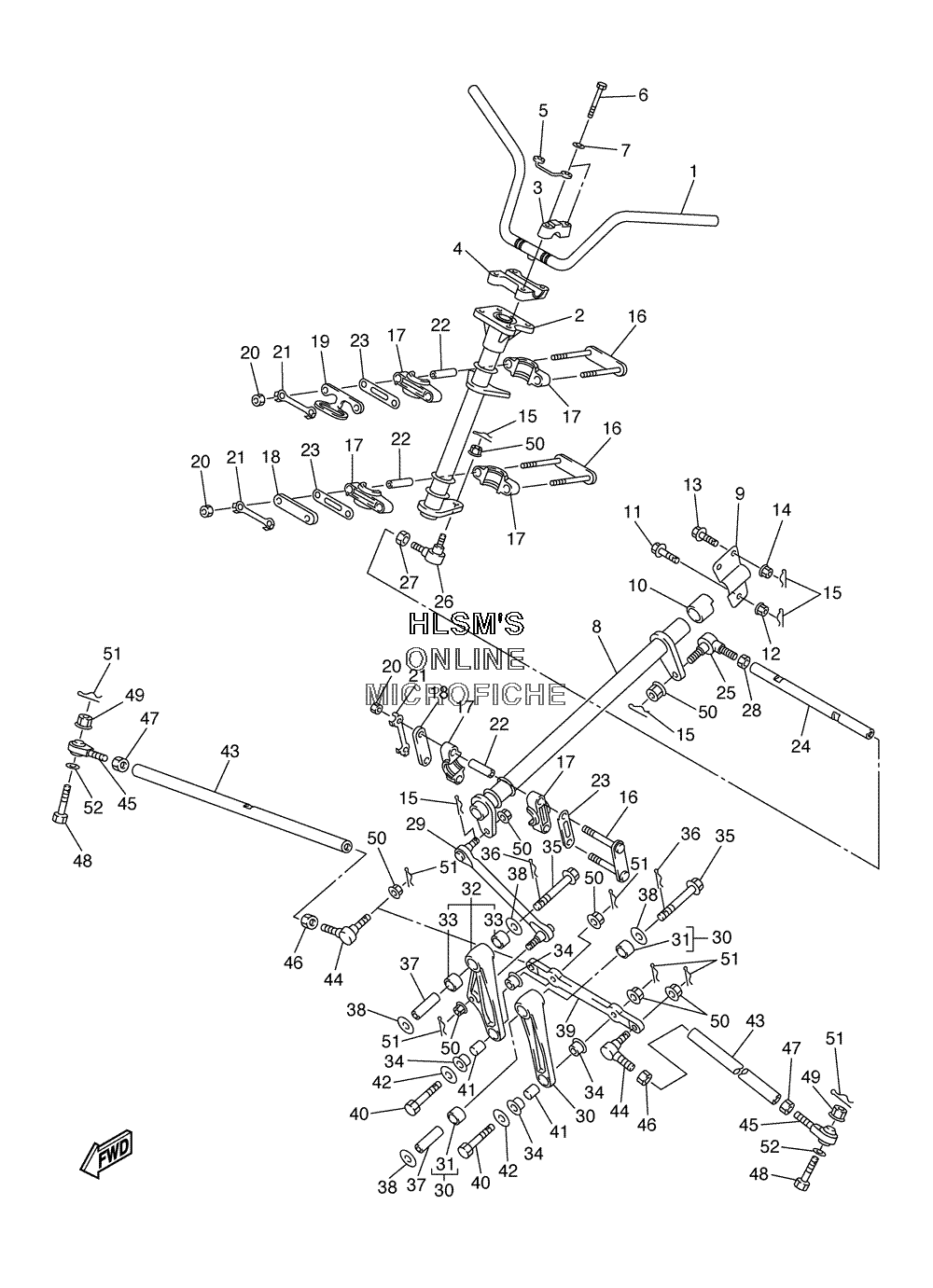

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha RX-1 ER - 2005 года выпуска
-
№АртикулНазвание
-
18ES-26110-00-00 HANDLE COMP.HANDLE COMP.
-
28FA-23813-00-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
38K1-23814-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
48ED-23442-00-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
58DF-23857-00-00 HOLDERHOLDER
-
697027-08055-00 BOLTBOLT
-
792907-08600-00 WASHER, PLATEWASHER, PLATE
-
88FA-23811-00-00 COLUMN, STEERINGCOLUMN, STEERING
-
98FA-23818-00-00 COVER, STEERINGCOVER, STEERING
-
108FA-23873-00-00 BEARING, STEERING UPPERBEARING, STEERING UPPER
-
1190105-10728-00 BOLT, FLANGEBOLT, FLANGE
-
1295607-10200-00 NUT, U FLANGENUT, U FLANGE
-
1390105-08552-00 BOLT, FLANGEBOLT, FLANGE
-
1495607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1590468-12006-00 CLIPCLIP
-
168FA-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
178FA-23812-00-00 BEARING, STEERINGBEARING, STEERING
-
188FA-23867-00-00 HOLDER 2HOLDER 2
-
198CJ-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
2095317-08600-00 NUTNUT
-
211UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
2290387-09006-00 COLLARCOLLAR
-
238FA-23843-00-00 WASHER, PLAINWASHER, PLAIN
-
248FA-23828-00-00 ROD, STEERINGROD, STEERING
-
258CR-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
268CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
2795307-10700-00 NUTNUT
-
2890170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
298FA-23821-00-00 ROD, STEERING RELAYROD, STEERING RELAY
-
308FG-2389K-00-00 ARM PIVOT ASSYARM PIVOT ASSY
-
3190383-17001-00 ...BUSH, FORMED...BUSH, FORMED
-
328FA-2389M-00-00 ARM PIVOT ASSY. , 2ARM PIVOT ASSY. , 2
-
3393317-41785-00 ...BEARING...BEARING
-
3490381-14001-00 BUSH, SOLIDBUSH, SOLID
-
3590105-12017-00 BOLT, FLANGEBOLT, FLANGE
-
368FA-2384N-00-00 CLIP, RINGCLIP, RING
-
378FA-2412G-00-00 COLLARCOLLAR
-
3890201-121U3-00 WASHER, PLATEWASHER, PLATE
-
398FU-23826-00-00 ARM, IDLERARM, IDLER
-
4090102-10044-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
4190387-10008-00 COLLARCOLLAR
-
4290201-10742-00 WASHER, PLATEWASHER, PLATE
-
438FU-23831-00-00 ROD, TIEROD, TIE
-
448CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
458FA-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
4695307-10700-00 NUTNUT
-
4790170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
4890102-10044-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
4995707-10300-00 NUT, FLANGENUT, FLANGE
-
5095707-10500-00 NUT, FLANGENUT, FLANGE
-
5191401-20020-00 PIN, COTTERPIN, COTTER
-
5290201-08759-00 WASHER, PLATEWASHER, PLATE
