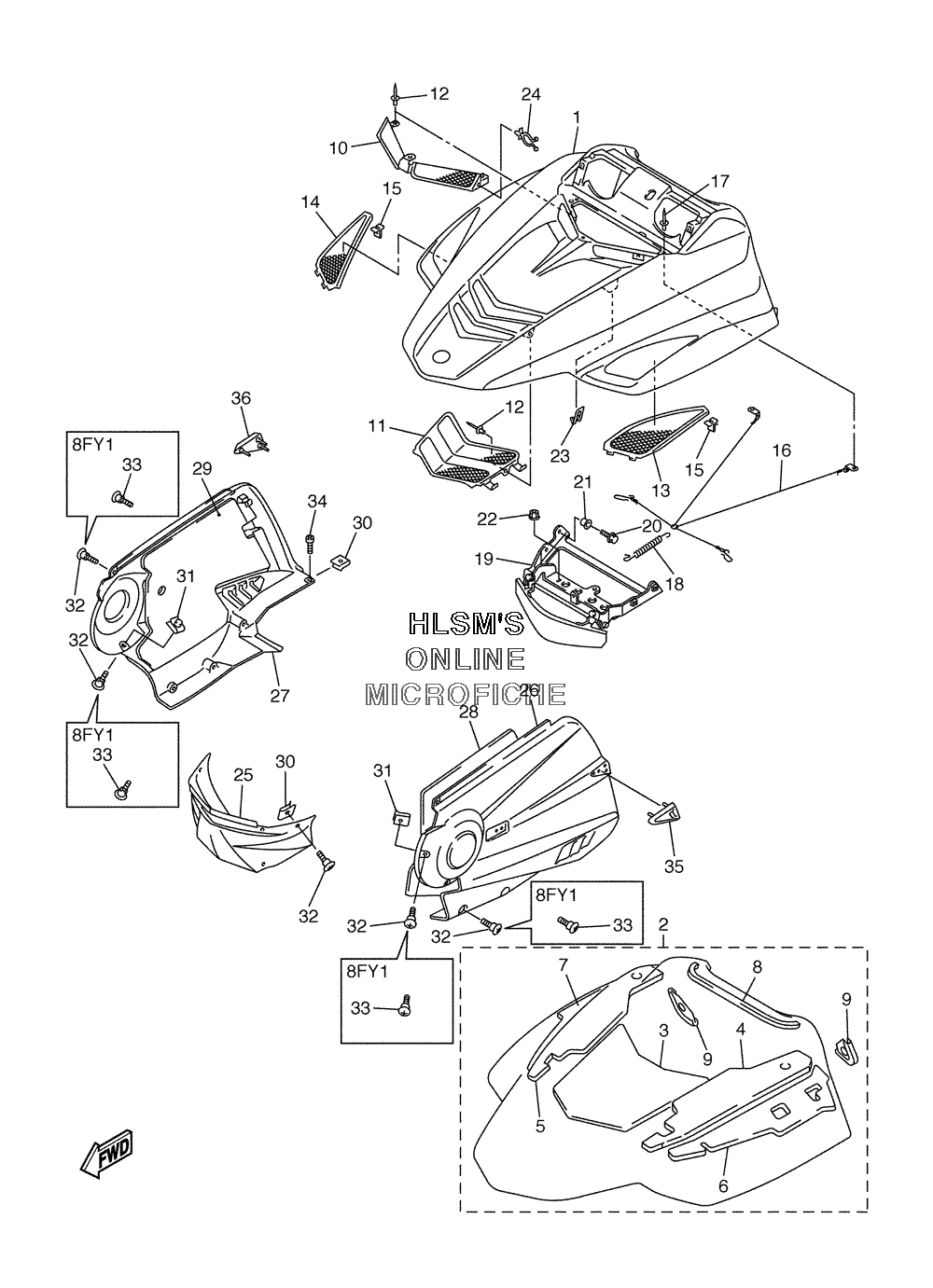

HOOD ASSY для Yamaha RX-1 ER - 2005 года выпуска
-
№АртикулНазвание
-
18FA-77111-01-P1 SHROUD (TEAM YAM. BLUE/WHITE)SHROUD (TEAM YAM. BLUE/WHITE)
-
18FA-77111-01-P4 SHROUD (CANDY RED)SHROUD (CANDY RED)
-
18FA-77111-01-P3 SHROUD (MATTE BLACK)SHROUD (MATTE BLACK)
-
28FA-W7726-11-00 LINING SETLINING SET
-
38FA-77271-01-00 ...DAMPER, NOISE 11...DAMPER, NOISE 11
-
48FA-77272-01-00 ...DAMPER, NOISE 12...DAMPER, NOISE 12
-
58FA-77273-01-00 ...DAMPER, NOISE 13...DAMPER, NOISE 13
-
68FA-77274-01-00 ...DAMPER, NOISE 14...DAMPER, NOISE 14
-
78FA-77275-01-00 ...DAMPER, NOISE 15...DAMPER, NOISE 15
-
88FA-77165-00-00 ...TRIM 1...TRIM 1
-
98FA-77167-10-00 ...TRIM 3...TRIM 3
-
108FA-77133-00-00 LOUVER 3LOUVER 3
-
118FA-77134-00-00 LOUVER 4LOUVER 4
-
1290269-06062-00 RIVETRIVET
-
138FA-77109-00-00 LOUVER 5LOUVER 5
-
148FA-77108-00-00 LOUVER 6LOUVER 6
-
1590468-06001-00 CLIPCLIP
-
168FA-77118-00-00 STOPPER, SHROUDSTOPPER, SHROUD
-
1790267-48018-00 RIVET, BLINDRIVET, BLIND
-
1889A-77159-00-00 CLAMP, RODCLAMP, ROD
-
198FA-77140-00-00 HINGE ASSYHINGE ASSY
-
2095807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2190387-06681-00 COLLARCOLLAR
-
2295607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
238FA-77135-00-00 CLAMP 1CLAMP 1
-
2490464-15M27-00 CLAMPCLAMP
-
258FA-21912-00-00 PANEL, SUB FRAME 1PANEL, SUB FRAME 1
-
268FA-2197H-00-00 HOOD 3 (BLACK)HOOD 3 (BLACK)
-
268FA-2197H-20-00 HOOD 3HOOD 3
-
278FA-2198H-00-00 HOOD 4 (BLACK)HOOD 4 (BLACK)
-
278FA-2198H-20-00 HOOD 4HOOD 4
-
288FA-77276-01-00 DAMPER, NOISE 16DAMPER, NOISE 16
-
298FA-77277-00-00 DAMPER, NOISE 17DAMPER, NOISE 17
-
3090183-06053-00 NUT, SPRINGNUT, SPRING
-
3190183-06100-00 NUT, SPRINGNUT, SPRING
-
3290154-06009-00 SCREW, BINDING FOR ER 8FV1SCREW, BINDING FOR ER 8FV1
-
3390154-06013-00 SCREW, BINDINGSCREW, BINDING
-
3498907-06014-00 SCREW, BINDSCREW, BIND
-
358FA-77561-00-00 PROTECTOR, SIDE 1PROTECTOR, SIDE 1
-
368FA-77562-00-00 PROTECTOR, SIDE 2PROTECTOR, SIDE 2
