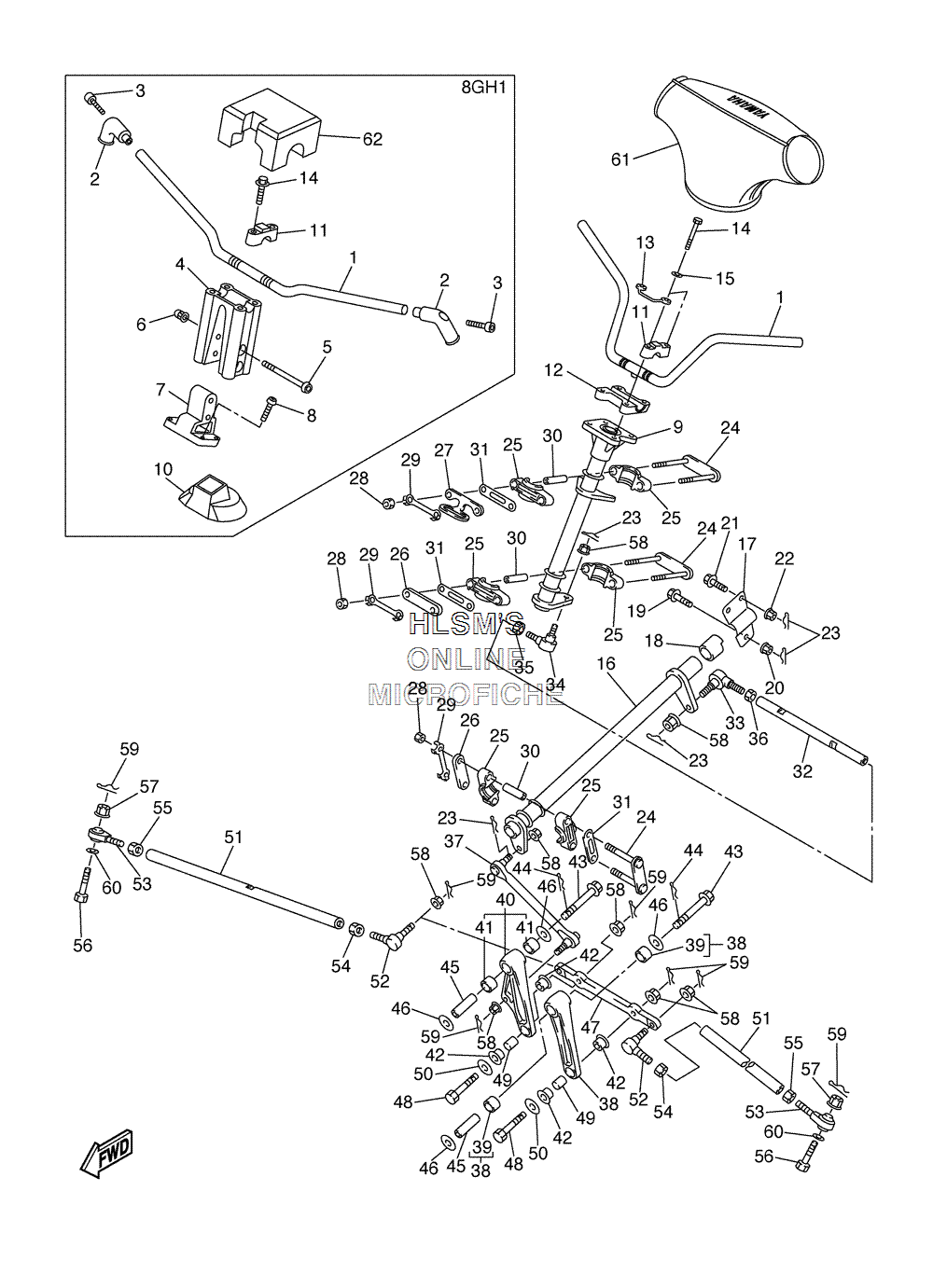

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha VECTOR ER - 2006 года выпуска
-
№АртикулНазвание
-
18ES-26110-00-00 HANDLE COMP.HANDLE COMP.
-
18GF-26111-00-00 HANDLEBARHANDLEBAR
-
28FP-26246-00-00 END, GRIPEND, GRIP
-
391318-06040-00 BOLTBOLT
-
48GF-2381B-00-00 JOINTJOINT
-
592014-08070-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
690176-08068-00 NUT, CROWNNUT, CROWN
-
78GF-2381T-10-00 BRKT 20BRKT 20
-
892014-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
98FA-23813-01-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
108GF-26144-00-00 COVER, HANDLEBAR LOWER 1COVER, HANDLEBAR LOWER 1
-
113SP-23441-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
118K1-23814-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
128ED-23442-00-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
138DF-23857-00-00 WASHER, LOCKWASHER, LOCK
-
1495814-08035-00 BOLT, FLANGEBOLT, FLANGE
-
1497027-08055-00 BOLTBOLT
-
1592907-08600-00 WASHER, PLATEWASHER, PLATE
-
168FA-23811-00-00 COLUMN, STEERINGCOLUMN, STEERING
-
178FA-23818-00-00 COVER, STEERINGCOVER, STEERING
-
188FA-23873-00-00 BEARING, STEERING UPPERBEARING, STEERING UPPER
-
1990105-10728-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2095607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2190105-08552-00 BOLT, FLANGEBOLT, FLANGE
-
2295607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2390468-12006-00 CLIPCLIP
-
248FA-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
258FA-23812-00-00 BEARING, STEERINGBEARING, STEERING
-
268FA-23867-00-00 HOLDER 2HOLDER 2
-
278CJ-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
2895317-08600-00 NUTNUT
-
291UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
3090387-09006-00 COLLARCOLLAR
-
318FA-23843-00-00 WASHER, PLAINWASHER, PLAIN
-
328FA-23828-00-00 ROD, STEERINGROD, STEERING
-
338CR-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
348CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
3595307-10700-00 NUTNUT
-
3690170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
378FA-23821-00-00 ROD, STEERING RELAYROD, STEERING RELAY
-
388FG-2389K-00-00 ARM PIVOT ASSYARM PIVOT ASSY
-
3990383-17001-00 ...BUSH, FORMED...BUSH, FORMED
-
408FA-2389M-00-00 ARM PIVOT ASSY. , 2ARM PIVOT ASSY. , 2
-
4193317-41785-00 ...BEARING...BEARING
-
4290381-14001-00 BUSH, SOLIDBUSH, SOLID
-
4390105-12017-00 BOLT, FLANGEBOLT, FLANGE
-
448FA-2384N-00-00 CLIP, RINGCLIP, RING
-
458FA-2412G-00-00 COLLARCOLLAR
-
4690201-121U3-00 WASHER, PLATEWASHER, PLATE
-
478FU-23826-00-00 ARM, IDLERARM, IDLER
-
4890102-10044-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
4990387-10008-00 COLLARCOLLAR
-
5090201-10742-00 WASHER, PLATEWASHER, PLATE
-
518ES-23831-00-00 ROD, TIEROD, TIE
-
528CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
538FA-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
5495307-10700-00 NUTNUT
-
5590170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
5690102-10044-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
5795707-10300-00 NUT, NYLONNUT, NYLON
-
5895707-10500-00 NUT, FLANGENUT, FLANGE
-
5991401-20020-00 PIN, COTTERPIN, COTTER
-
6090201-08759-00 WASHER, PLATEWASHER, PLATE
-
618ES-23815-00-00 PAD, STEERINGPAD, STEERING
-
628FP-23815-00-00 PAD, STEERINGPAD, STEERING
