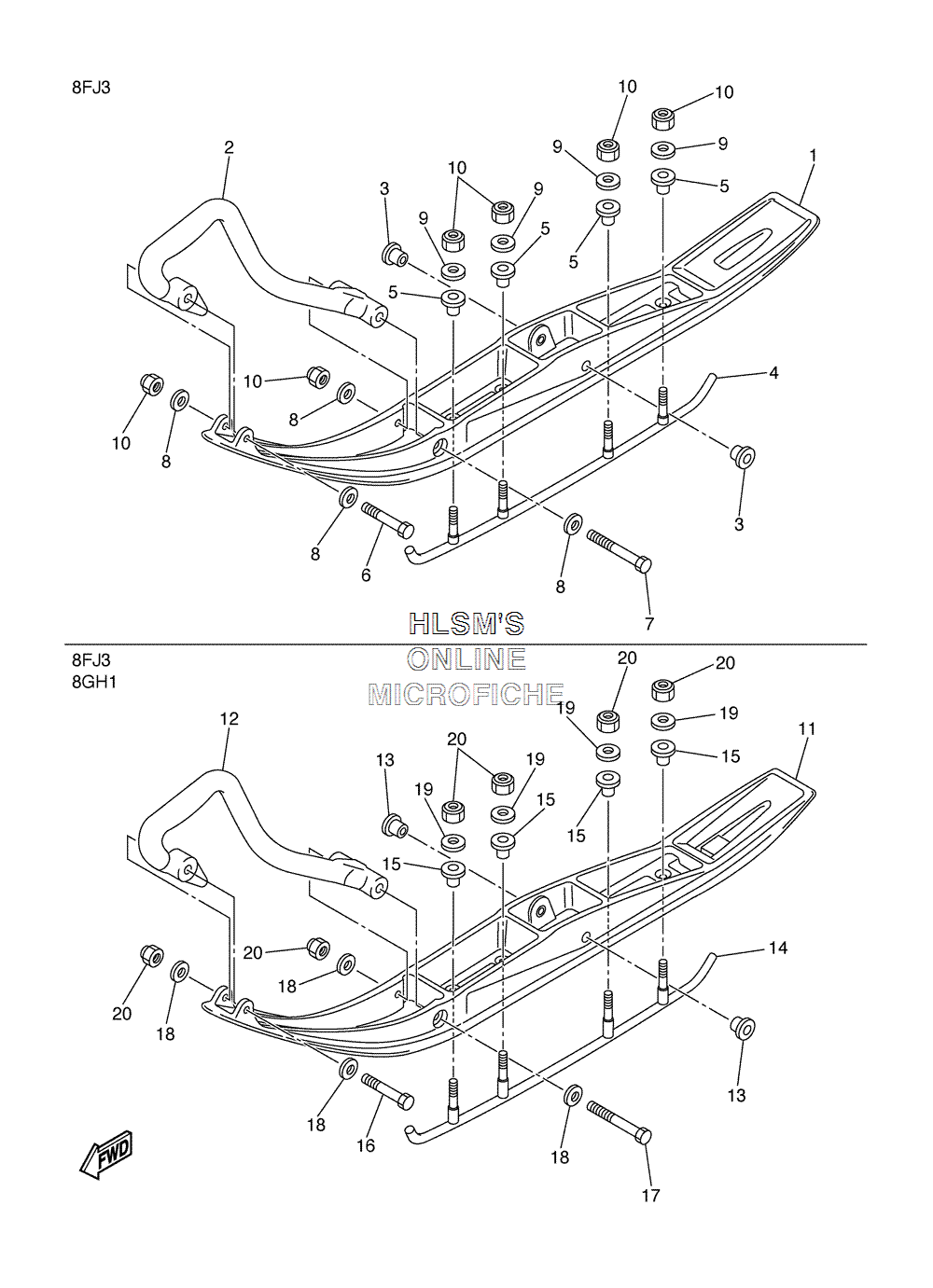

SUSPENSION - ALTERNATE SKI для Yamaha VECTOR ER - 2006 года выпуска
-
№АртикулНазвание
-
18EX-F3711-00-00 SKI 1 (BLACK)SKI 1 (BLACK)
-
28EK-F3712-00-00 REINFORCEMENT, HEAD (BLUE)REINFORCEMENT, HEAD (BLUE)
-
28FB-F3712-00-00 REINFORCEMENT, HEAD (RED)REINFORCEMENT, HEAD (RED)
-
38EX-F3754-00-00 COLLAR, 1COLLAR, 1
-
48EK-F3731-00-00 RUNNER 1RUNNER 1
-
58EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
69702M-08055-00 BOLTBOLT
-
79702M-08100-00 BOLTBOLT
-
890201-08784-00 WASHER, PLATEWASHER, PLATE
-
990201-086P8-00 WASHER, PLATEWASHER, PLATE
-
109570M-08300-00 NUT, NYLONNUT, NYLON
-
118FE-F3711-00-00 SKI 1 (BLACK)SKI 1 (BLACK)
-
128EK-F3712-00-00 HANDLE PLASTIC (BLUE)HANDLE PLASTIC (BLUE)
-
128FB-F3712-00-00 HANDLE PLASTIC (RED)HANDLE PLASTIC (RED)
-
128ES-F3712-00-00 HANDLE PLASTIC (YELLOW)HANDLE PLASTIC (YELLOW)
-
138EX-F3754-00-00 COLLAR, 1COLLAR, 1
-
148EN-F3731-00-00 RUNNER 1RUNNER 1
-
158EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
169702M-08055-00 BOLTBOLT
-
179702M-08100-00 BOLTBOLT
-
1890201-08784-00 WASHER, PLATEWASHER, PLATE
-
1990201-086P8-00 WASHER, PLATEWASHER, PLATE
-
209570M-08300-00 NUT, NYLONNUT, NYLON
