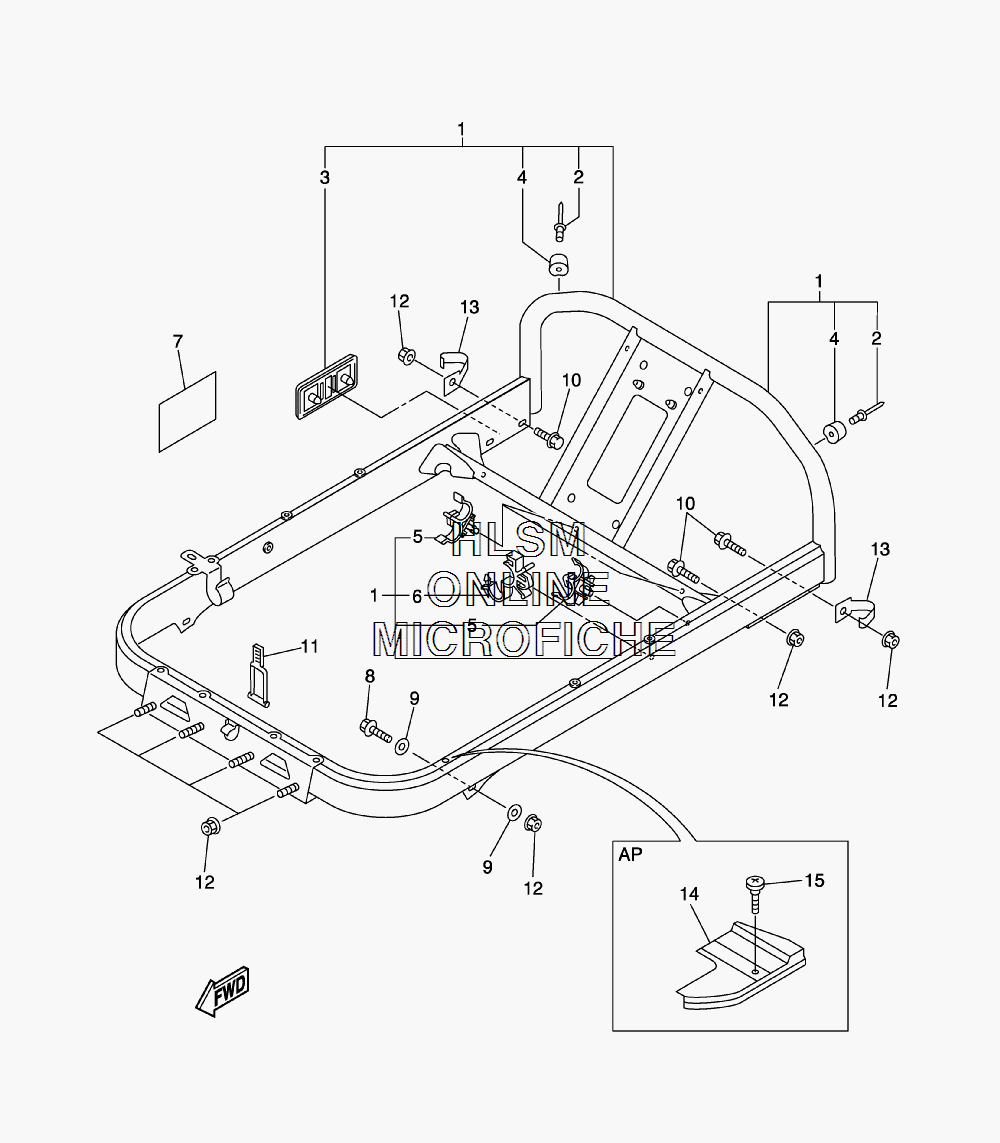

HANDLEBAR PAD W/ STEERING GATE для Yamaha VECTOR GT - 2007 года выпуска
-
№АртикулНазвание
-
18ES-23870-02-00 STEERING GATE COMP.STEERING GATE COMP.
-
290267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
38FA-83614-00-00 ...BRACKET...BRACKET
-
48FA-23858-00-00 ...DAMPER...DAMPER
-
590464-11007-00 ...CLAMP...CLAMP
-
690464-16006-00 ...CLAMP...CLAMP
-
78FA-2389C-E0-00 LABEL, CAUTIONLABEL, CAUTION
-
890105-081A7-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
990201-08326-00 WASHER, PLATEWASHER, PLATE
-
1095827-08030-00 BOLT, FLANGEBOLT, FLANGE
-
118FA-2389E-00-00 LATCHLATCH
-
1295607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1390462-10022-00 CLAMPCLAMP
-
148ES-14146-00-00 PLATE (OPT)PLATE (OPT)
-
1590150-06015-00 SCREW, ROUND HEAD (OPT)SCREW, ROUND HEAD (OPT)
