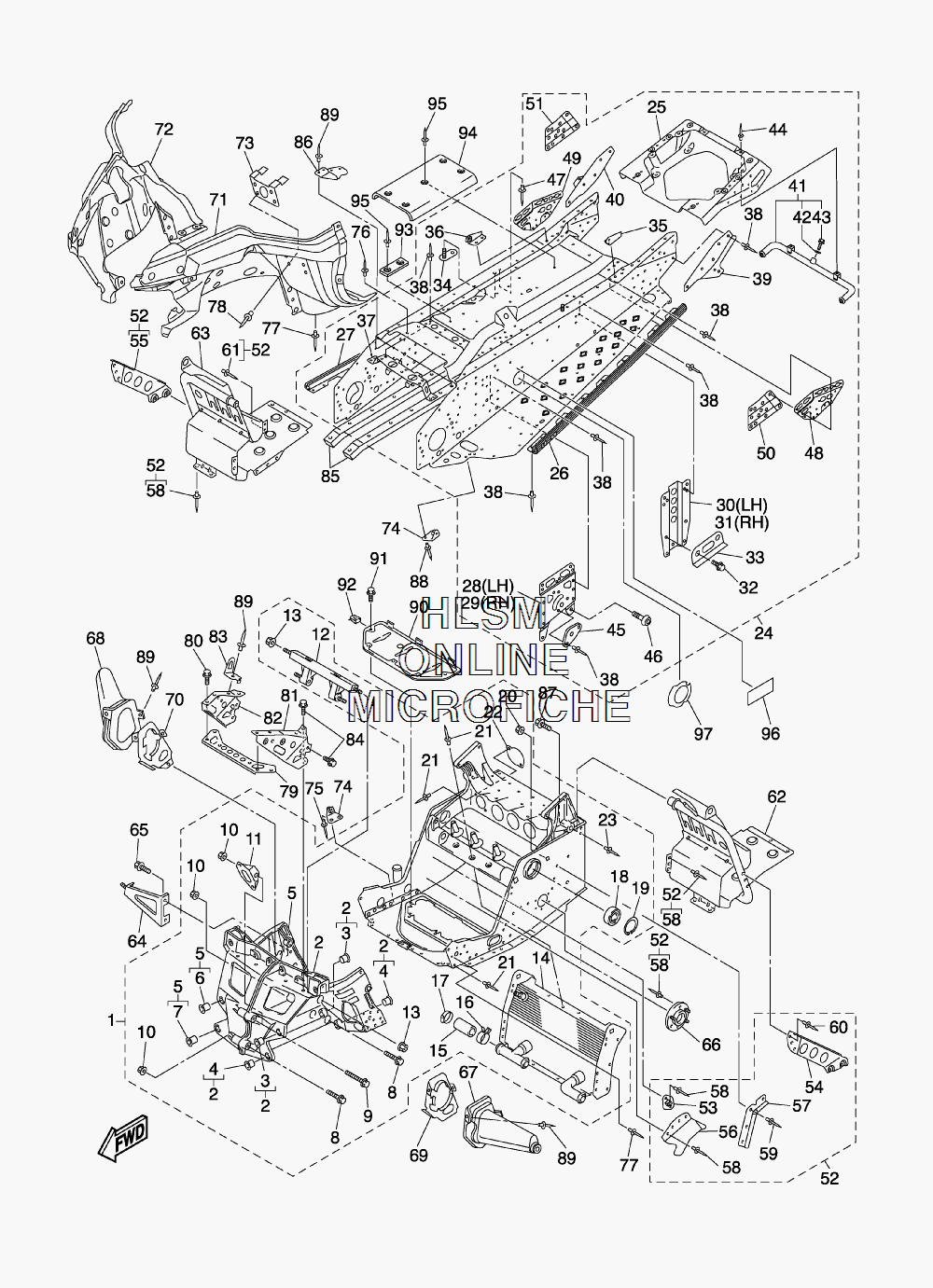

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha VECTOR GT - 2007 года выпуска
-
№АртикулНазвание
-
18ES-21940-01-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-11-00 ...BULKHEAD...BULKHEAD
-
390381-15001-00 ...BUSH, SOLID...BUSH, SOLID
-
490381-16001-00 ...BUSH, SOLID...BUSH, SOLID
-
58FA-W2198-11-00 BULKHEAD 2BULKHEAD 2
-
690381-15001-00 ...BUSH, SOLID...BUSH, SOLID
-
790381-16001-00 ...BUSH, SOLID...BUSH, SOLID
-
895827-08060-00 ...BOLT, FLANGE...BOLT, FLANGE
-
995827-08065-00 ...BOLT,WASHER BASED...BOLT,WASHER BASED
-
1095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
118FA-2128A-00-00 ...BRACKET, REGULATOR...BRACKET, REGULATOR
-
128FG-21947-00-00 ...BRACKET, STEERING 1...BRACKET, STEERING 1
-
1395607-10200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
148FA-12440-00-00 ...HEAT EXCHANGER ASSY...HEAT EXCHANGER ASSY
-
158FA-12551-00-00 ...HOSE 7...HOSE 7
-
1690467-28046-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
1790450-35001-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
1893306-20650-00 ...BEARING...BEARING
-
1999009-62500-00 ...CIRCLIP...CIRCLIP
-
2095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
2190267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
228ES-2131D-00-00 ...PLATE, COVER...PLATE, COVER
-
2390267-48176-00 ...RIVET, BLIND...RIVET, BLIND
-
248GG-21950-01-00 REAR FRAME COMP.REAR FRAME COMP.
-
258FA-W2199-10-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
268FU-21926-00-00 ...REINFORCEMENT, FOOTREST 1...REINFORCEMENT, FOOTREST 1
-
278FU-21936-00-00 ...REINFORCEMENT, FOOTREST 2...REINFORCEMENT, FOOTREST 2
-
288FU-21943-00-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
298FU-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
308FP-21944-00-00 ...BRACKET, RR.TRACK SUSPENSION...BRACKET, RR.TRACK SUSPENSION
-
318FP-21954-00-00 ...BRACKET, RR.TRACK SUSPENSION...BRACKET, RR.TRACK SUSPENSION
-
3295817-10020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
338FP-21988-00-00 ...PATCH 8...PATCH 8
-
348CR-2194N-00-00 ...BRACKET, FUEL TANK 1...BRACKET, FUEL TANK 1
-
358FA-2194X-00-00 ...BRACKET 1...BRACKET 1
-
368FA-2195X-00-00 ...BRACKET 2...BRACKET 2
-
378ES-2194H-00-00 ...PROTECTOR, MUFFLER...PROTECTOR, MUFFLER
-
3890267-47186-00 ...RIVET, BLIND (QTY:136)...RIVET, BLIND (QTY:136)
-
398FU-21963-00-00 ...PATCH 3...PATCH 3
-
408FU-21964-00-00 ...PATCH 4...PATCH 4
-
418FU-1241A-00-00 ...HEAT EXCHANGER ASSY 4...HEAT EXCHANGER ASSY 4
-
4290210-06006-00 ...WASHER, SEAL...WASHER, SEAL
-
4395817-06016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
4490267-48095-00 ...RIVET, BLIND...RIVET, BLIND
-
458FP-21919-00-00 ...BRACKET, MAIN TRACK 3...BRACKET, MAIN TRACK 3
-
4692017-10020-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
4790267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
488FP-21928-00-00 ...REINF., SUB FRAME 1...REINF., SUB FRAME 1
-
498FP-21938-00-00 ...REINF., SUB FRAME 2...REINF., SUB FRAME 2
-
508FJ-21924-00-00 ...REINFORCEMENT, FRAME REAR 3...REINFORCEMENT, FRAME REAR 3
-
518FJ-21934-00-00 ...REINFORCEMENT, FRAME REAR 4...REINFORCEMENT, FRAME REAR 4
-
528FK-W2195-10-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
538CR-21939-01-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
548FU-2196M-00-00 ...BRACKET, 5...BRACKET, 5
-
558FU-2197M-00-00 ...BRACKET, 6...BRACKET, 6
-
568FU-2198G-00-00 ...COVER 2...COVER 2
-
578FA-21999-00-00 ...CLAMP, WIREHARNESS...CLAMP, WIREHARNESS
-
5890267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
5990267-48018-00 ...RIVET, BLIND...RIVET, BLIND
-
6090267-48177-00 ...RIVET, BLIND...RIVET, BLIND
-
6190267-47186-00 ...RIVET, BLIND...RIVET, BLIND
-
628FU-21960-01-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
638FU-21970-01-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
648ES-2193E-00-00 BRACKET, OIL TANK 1BRACKET, OIL TANK 1
-
6595827-08014-00 BOLT, FLANGEBOLT, FLANGE
-
668EK-21920-01-00 HOUSING, REINF SUB-ASSY (L.H)HOUSING, REINF SUB-ASSY (L.H)
-
678FU-2198F-00-00 COVER 1COVER 1
-
688FU-2198J-00-00 COVER 3COVER 3
-
698FU-2195E-01-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
708FU-2195F-01-00 PLATE, STRG BRACKET 2PLATE, STRG BRACKET 2
-
718ES-2196A-00-00 FRAME UNDER 1FRAME UNDER 1
-
728FA-2196E-00-00 FRAME, UNDER 2FRAME, UNDER 2
-
738FA-21972-01-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
748FA-2196F-00-00 BRACKET 3BRACKET 3
-
7590267-48083-00 RIVET, BLINDRIVET, BLIND
-
7690267-48169-00 RIVET, BLINDRIVET, BLIND
-
7790267-48018-00 RIVET, BLINDRIVET, BLIND
-
7890267-47200-00 RIVET, BLINDRIVET, BLIND
-
798FA-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
8095827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
818FA-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
828FA-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
838FA-77125-00-00 STAY 1STAY 1
-
8495827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
858FA-21978-01-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
868FU-2197N-00-00 BRACKET 7BRACKET 7
-
8795827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
8890267-48095-00 RIVET, BLINDRIVET, BLIND
-
8990267-47195-00 RIVET, BLINDRIVET, BLIND
-
908FA-2197E-01-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
9190109-065F3-00 BOLTBOLT
-
9290183-06053-00 NUT, SPRINGNUT, SPRING
-
938FA-21998-00-00 SPACERSPACER
-
948FG-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
9590267-48059-00 RIVET, BLINDRIVET, BLIND
-
968FJ-2179D-00-00 PLETE, EPA OFFROAD 2PLETE, EPA OFFROAD 2
-
978FU-474AA-00-00 GRAPHIC, 1GRAPHIC, 1
