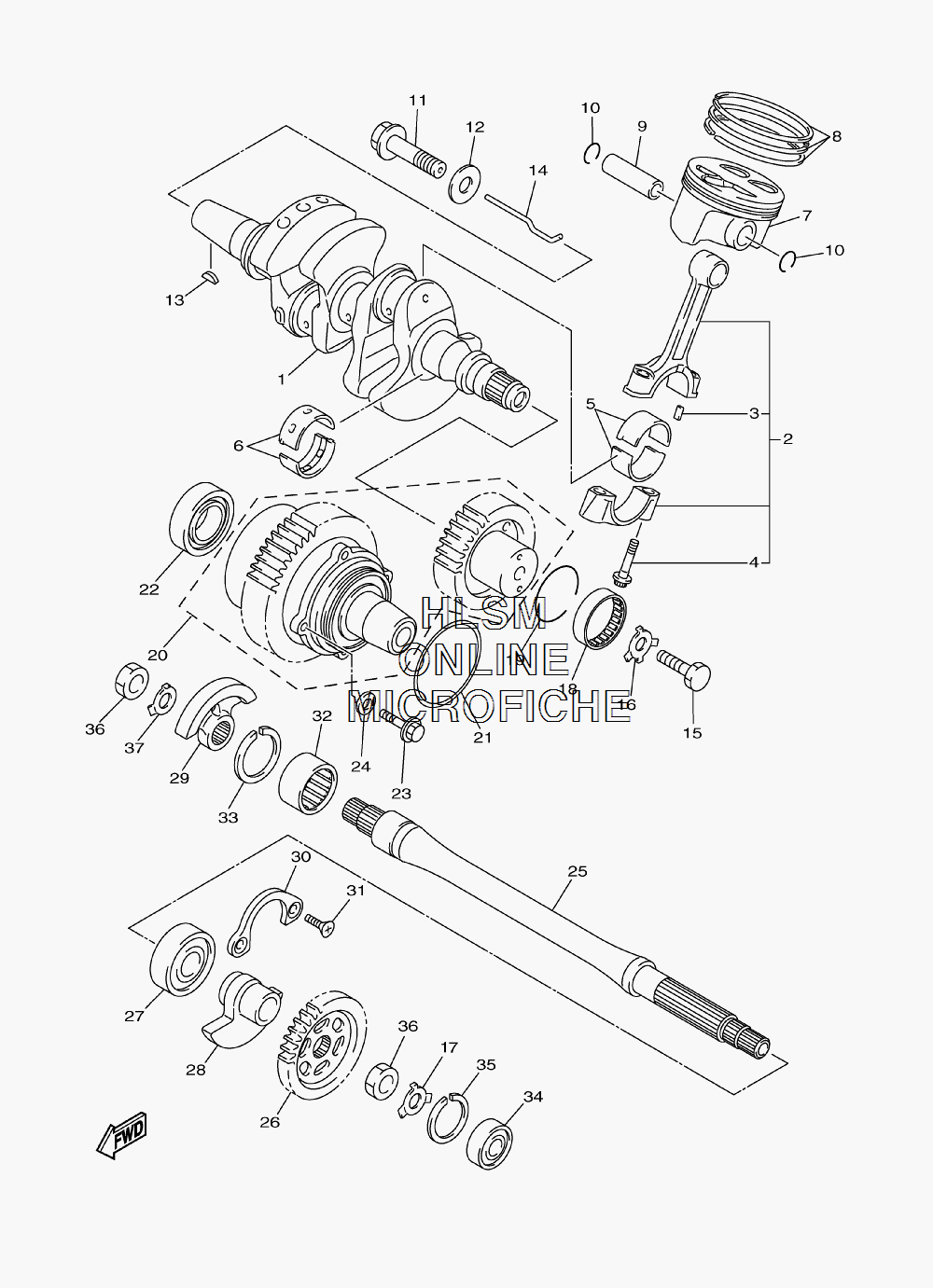

CRANKSHAFT W/ PISTON ASSY для Yamaha VENTURE LITE 2-PASS - 2007 года выпуска
-
№АртикулНазвание
-
18GC-11411-00-00 CRANKSHAFTCRANKSHAFT
-
28GC-11650-00-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
393603-07073-00 ...PIN, DOWEL...PIN, DOWEL
-
45VY-11654-01-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
55VY-11656-00-00 PLANE BEARING, CONNECTING ROD (OPT) (BLUE)PLANE BEARING, CONNECTING ROD (OPT) (BLUE)
-
55VY-11656-10-00 PLANE BEARING, CONNECTING ROD (OPT) (BLACK)PLANE BEARING, CONNECTING ROD (OPT) (BLACK)
-
55VY-11656-20-00 PLANE BEARING, CONNECTING ROD (OPT) (BROWN)PLANE BEARING, CONNECTING ROD (OPT) (BROWN)
-
55VY-11656-A0-00 PLANE BEARING, CONNECTING ROD (OPT) (WHITE)PLANE BEARING, CONNECTING ROD (OPT) (WHITE)
-
65VY-11416-A0-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (WHITE)PLANE BEARING, CRANKSHAFT 1 (OPT) (WHITE)
-
65VY-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)
-
65VY-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)
-
65VY-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)
-
65VY-11416-00-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLUE)PLANE BEARING, CRANKSHAFT 1 (OPT) (BLUE)
-
78GC-11631-00-00 PISTON (STD)PISTON (STD)
-
85VY-11603-01-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
95VY-11633-00-00 PIN, PISTONPIN, PISTON
-
1090468-12069-00 CLIPCLIP
-
1190105-12032-00 BOLT, FLANGEBOLT, FLANGE
-
1290201-121H0-00 WASHER, PLATEWASHER, PLATE
-
1390280-03045-00 KEY, WOODRUFFKEY, WOODRUFF
-
1459J-11455-00-00 SHAFT 1SHAFT 1
-
1590101-10009-00 BOLTBOLT
-
1690215-10007-00 WASHER, LOCKWASHER, LOCK
-
1790215-14001-00 WASHER, LOCKWASHER, LOCK
-
1893311-33588-00 BEARINGBEARING
-
1993450-46113-00 CIRCLIPCIRCLIP
-
208GC-W114B-00-00 DRIVE GEAR SETDRIVE GEAR SET
-
2193210-53679-00 O-RINGO-RING
-
2293306-27209-00 BEARINGBEARING
-
2395812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2490430-06166-00 GASKETGASKET
-
258GC-11407-00-00 SHAFT ASSY., 2SHAFT ASSY., 2
-
268GC-11531-00-00 GEAR, BALANCE WEIGHTGEAR, BALANCE WEIGHT
-
2793306-30324-00 BEARINGBEARING
-
288GC-11454-01-00 WEIGHT 1WEIGHT 1
-
298GC-11464-00-00 WEIGHT 2WEIGHT 2
-
304JT-15383-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
3190151-06024-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
3293311-62574-00 BEARING, CYL.(3YL)BEARING, CYL.(3YL)
-
3399009-37500-00 CIRCLIP, R-TYPECIRCLIP, R-TYPE
-
3493306-20119-00 BEARINGBEARING
-
3599009-32500-00 CIRCLIPCIRCLIP
-
3690170-14003-00 NUTNUT
-
3790215-14001-00 WASHER, LOCKWASHER, LOCK
