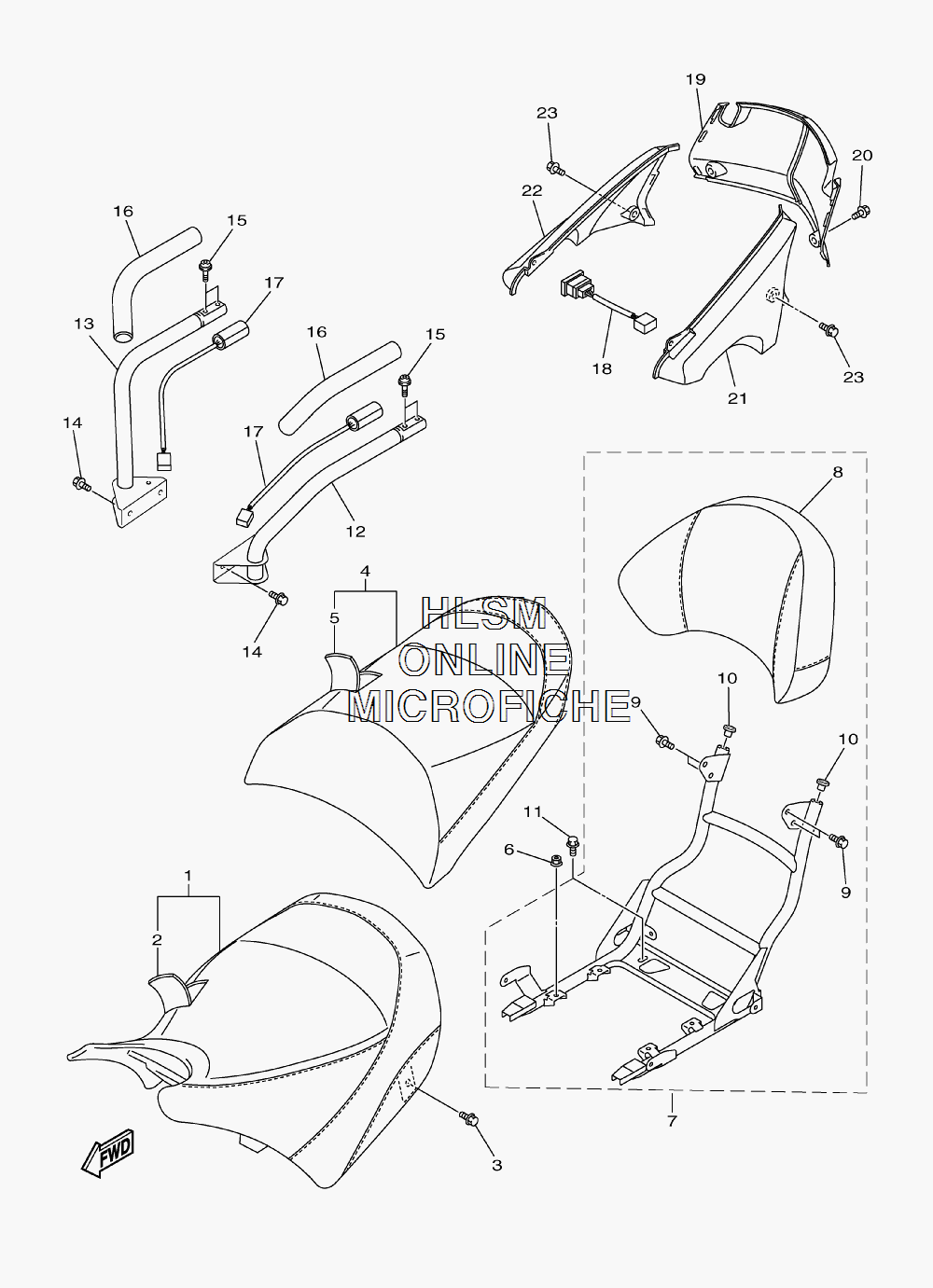

SEAT ASSY для Yamaha VENTURE LITE 2-PASS - 2007 года выпуска
-
№АртикулНазвание
-
18GJ-24710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
28GJ-2470F-00-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
395822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
48GJ-24750-00-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
58GJ-2470H-00-00 ...SEAT COVER COMP. ,2...SEAT COVER COMP. ,2
-
695702-06500-00 NUT, WITH WASHERNUT, WITH WASHER
-
78GJ-24790-00-00 SEAT BACK ASSYSEAT BACK ASSY
-
88GJ-24771-00-00 ...SEMI-DOUBLE SEAT...SEMI-DOUBLE SEAT
-
995802-08014-00 ...BOLT, FLANGE...BOLT, FLANGE
-
108GJ-24742-00-00 ...GROMMET...GROMMET
-
1195822-08014-00 BOLT, FLANGEBOLT, FLANGE
-
128GJ-2474A-00-00 ASSIST, GRIPASSIST, GRIP
-
138GJ-2474W-00-00 ASSIST,GRIP 2ASSIST,GRIP 2
-
1495822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
1592012-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
168ET-24796-00-00 COVERCOVER
-
178GJ-2474B-00-00 ASSIST GRIP WARMER ASSY 1ASSIST GRIP WARMER ASSY 1
-
188ET-82917-00-00 SWITCHSWITCH
-
198GJ-24845-00-00 COVER 1COVER 1
-
2090109-06220-00 BOLTBOLT
-
218GJ-24846-00-00 COVER 2COVER 2
-
228GJ-24844-00-00 COVER 3COVER 3
-
2390109-06220-00 BOLTBOLT
