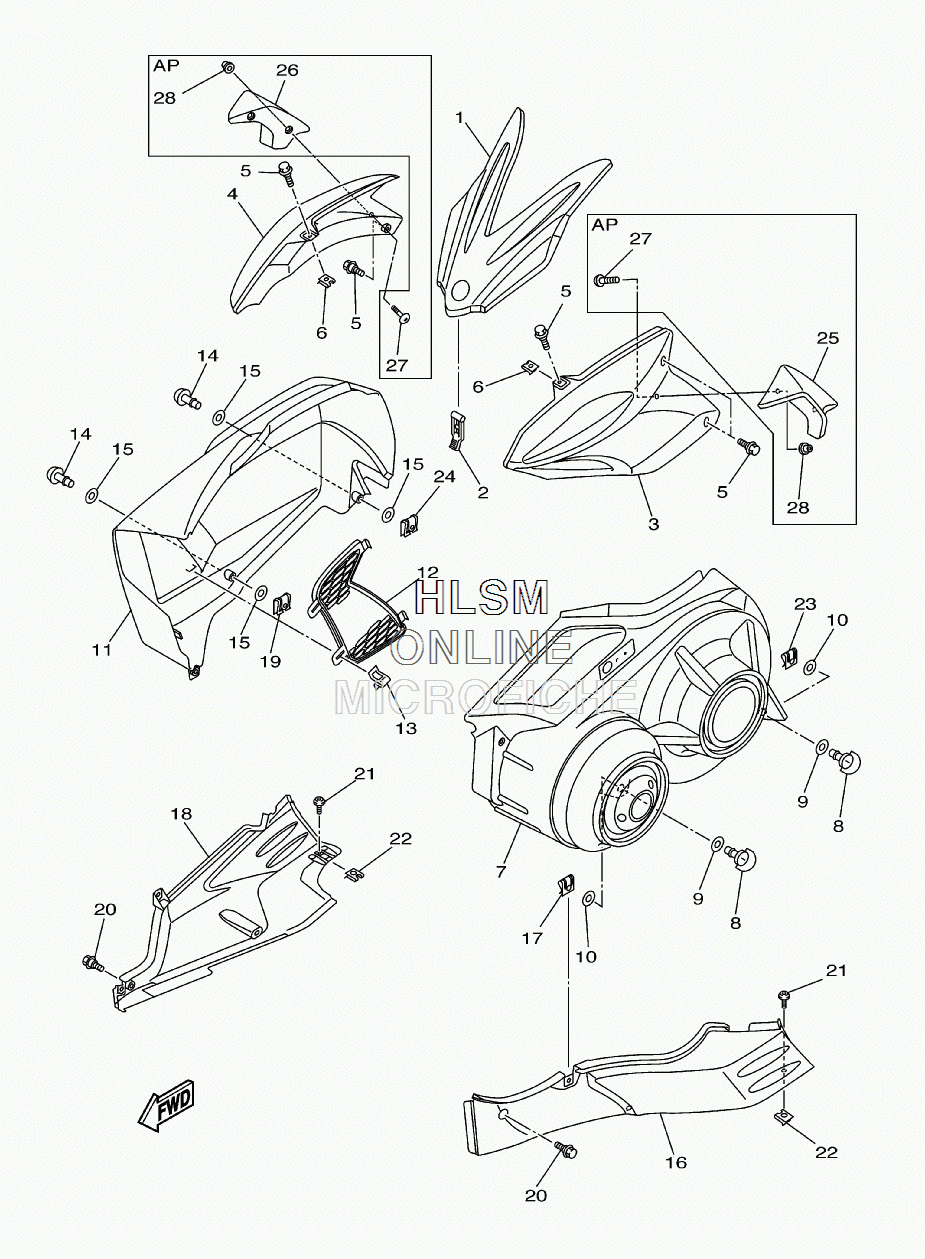

HOOD ASSY для Yamaha PHAZER RTX - 2008 года выпуска
-
№АртикулНазвание
-
18GC-77111-00-00 SHROUD FOR DPBSESHROUD FOR DPBSE
-
18GC-77111-30-00 SHROUD FOR BWS1SHROUD FOR BWS1
-
259V-21646-00-00 BANDBAND
-
38GC-2835U-00-00 PANEL 1 FOR DPBSEPANEL 1 FOR DPBSE
-
38GC-2835U-30-00 PANEL 1 FOR BWS1PANEL 1 FOR BWS1
-
48GC-2835V-00-00 PANEL 2 FOR DPBSEPANEL 2 FOR DPBSE
-
48GC-2835V-30-00 PANEL 2 FOR BWS1PANEL 2 FOR BWS1
-
590109-06220-00 BOLTBOLT
-
690183-06100-00 NUT, SPRINGNUT, SPRING
-
78GC-2197H-20-00 HOOD 3HOOD 3
-
83FV-28386-00-00 HEAD (SPECIAL FASTENER)HEAD (SPECIAL FASTENER)
-
92TK-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
105TJ-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
118GC-2198H-21-00 HOOD 4HOOD 4
-
128GC-77134-00-00 LOUVER 4LOUVER 4
-
1390468-06001-00 CLIPCLIP
-
145PW-28386-00-00 HEADHEAD
-
152TK-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
168GC-2196A-20-00 FRAME UNDER 1FRAME UNDER 1
-
174XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
188GC-2196E-20-00 FRAME, UNDER 2FRAME, UNDER 2
-
195PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
2090109-06220-00 BOLTBOLT
-
2190149-06105-00 SCREWSCREW
-
2290183-06100-00 NUT, SPRINGNUT, SPRING
-
234XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
245PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
258GK-77561-00-00 PROTECTOR, SIDE 1 (OPT)PROTECTOR, SIDE 1 (OPT)
-
268GK-77562-00-00 PROTECTOR, SIDE 2 (OPT)PROTECTOR, SIDE 2 (OPT)
-
2798902-05016-00 SCREW, BIND (OPT)SCREW, BIND (OPT)
-
2890179-05523-00 NUT, SPEC'L SHAPE (OPT)NUT, SPEC'L SHAPE (OPT)
