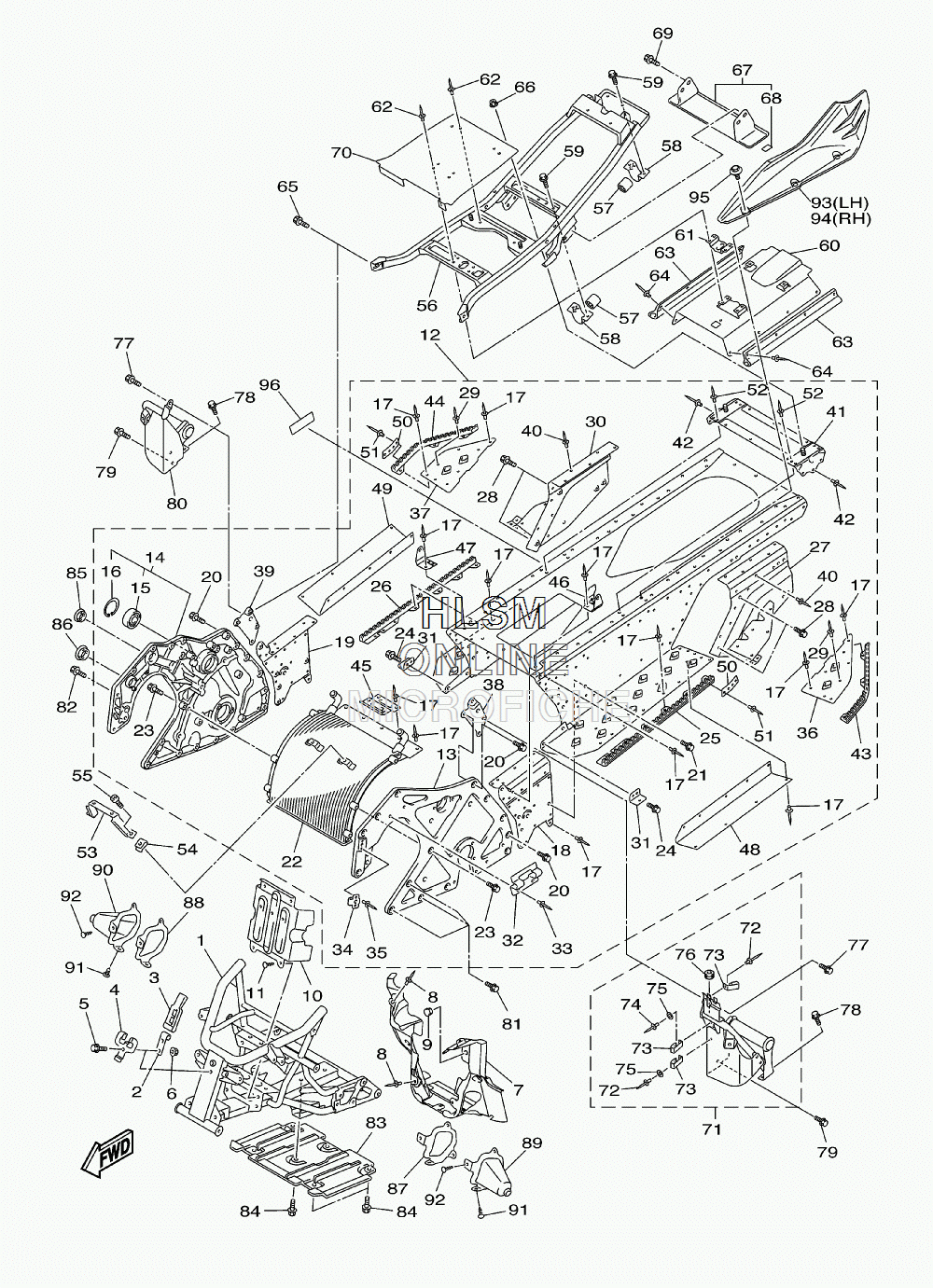

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha PHAZER RTX - 2008 года выпуска`
-
№АртикулНазвание
-
18GK-21940-00-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28GC-2175V-00-00 BRACKET 3BRACKET 3
-
359V-21646-00-00 BANDBAND
-
48GC-2175W-00-00 BRACKET 4BRACKET 4
-
592017-05040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
695702-05500-00 NUT, FLANGE (SILVER)NUT, FLANGE (SILVER)
-
78GC-21912-21-00 PANEL, SUB FRAME 1PANEL, SUB FRAME 1
-
890267-48086-00 RIVET, BLINDRIVET, BLIND
-
990338-12192-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
108GC-2195A-10-00 PROTECTOR, FRAME APROTECTOR, FRAME A
-
1190269-05003-00 RIVETRIVET
-
128GK-21950-20-00 REAR FRAME COMP.REAR FRAME COMP.
-
138GC-21991-00-00 ...REINF., PANELL FRAME 1...REINF., PANELL FRAME 1
-
148GK-21930-20-00 ...HOUSING, REINF SUB-ASSY (R.H)...HOUSING, REINF SUB-ASSY (R.H)
-
1593306-20511-00 ...BEARING...BEARING
-
1699009-52500-00 ...CIRCLIP...CIRCLIP
-
1790267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
188GK-21943-00-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
198GK-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
2095022-08020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2195822-08012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
228GC-12440-00-00 ...HEAT EXCHANGER ASSY...HEAT EXCHANGER ASSY
-
2395822-08020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2490109-065G4-00 ...BOLT...BOLT
-
258GC-21926-01-00 ...REINFORCEMENT, FOOTREST 1...REINFORCEMENT, FOOTREST 1
-
268GC-21936-01-00 ...REINFORCEMENT, FOOTREST 2...REINFORCEMENT, FOOTREST 2
-
278GK-21944-00-00 ...BRACKET, RR.TRACK SUSPENSION...BRACKET, RR.TRACK SUSPENSION
-
2895822-08014-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2990267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
308GK-21954-00-00 ...BRACKET, RR.TRACK SUSPENSION...BRACKET, RR.TRACK SUSPENSION
-
318GC-21967-00-00 ...PATCH 7...PATCH 7
-
328GC-21973-00-00 ...HOOK...HOOK
-
3390267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
342TK-2177L-00-00 ...PLATE, SPRING...PLATE, SPRING
-
3590267-32192-00 ...RIVET, BLIND...RIVET, BLIND
-
368GC-27452-00-00 ...BRACKET, FOOTREST 1...BRACKET, FOOTREST 1
-
378GC-27462-00-00 ...BRACKET, FOOTREST 2...BRACKET, FOOTREST 2
-
388GC-21963-00-00 ...PATCH 3...PATCH 3
-
398GC-21964-00-00 ...PATCH 4...PATCH 4
-
4090267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
418GK-21341-00-00 ...BRACKET, SEAT 1...BRACKET, SEAT 1
-
4290267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
438GC-21927-01-00 ...REINFORCEMENT, RR. FOOTREST 1...REINFORCEMENT, RR. FOOTREST 1
-
448GC-21937-01-00 ...REINFORCEMENT, RR. FOOTREST 2...REINFORCEMENT, RR. FOOTREST 2
-
458GC-2164G-00-00 ...STAY 2...STAY 2
-
468GC-21238-00-00 ...BRACKET...BRACKET
-
478GC-21239-00-00 ...BRACKET 2...BRACKET 2
-
488GC-21961-00-00 ...PATCH 1...PATCH 1
-
498GC-21962-00-00 ...PATCH 2...PATCH 2
-
508GC-21988-00-00 ...PATCH 8...PATCH 8
-
5190267-48010-00 ...RIVET, BLIND...RIVET, BLIND
-
5290267-47197-00 ...RIVET, BLIND...RIVET, BLIND
-
538GC-2164F-00-00 STAY 1STAY 1
-
5490183-06053-00 NUT, SPRINGNUT, SPRING
-
5591312-06012-00 BOLTBOLT
-
568GC-21160-10-00 SEAT RAIL COMPSEAT RAIL COMP
-
578GC-14747-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
588GC-21121-00-00 BRACKET, DAMPERBRACKET, DAMPER
-
5995822-06010-00 BOLT, FLANGEBOLT, FLANGE
-
608GC-2199H-10-00 SHIELD, HEATSHIELD, HEAT
-
618GC-1467H-00-00 BRACKET, SILENCER 1BRACKET, SILENCER 1
-
6290267-47195-00 RIVET, BLINDRIVET, BLIND
-
638GC-21852-00-00 DAMPERDAMPER
-
6490267-50010-00 RIVET, BLINDRIVET, BLIND
-
6595822-10016-00 BOLT, FLANGEBOLT, FLANGE
-
6695607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
678GC-24708-00-00 SEAT BRACKET ASSYSEAT BRACKET ASSY
-
688GC-77151-00-00 ...PAD 1...PAD 1
-
6995822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
708GC-21917-00-00 PANEL, SUB FRAME 6PANEL, SUB FRAME 6
-
718GJ-21960-00-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
7290267-48010-00 ...RIVET, BLIND...RIVET, BLIND
-
7390465-08368-00 ...CLAMP...CLAMP
-
7490267-48083-00 ...RIVET, BLIND...RIVET, BLIND
-
7590201-043H7-00 ...WASHER, PLATE...WASHER, PLATE
-
7690480-13163-00 ...GROMMET...GROMMET
-
7795822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
7895022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
7990105-06080-00 BOLT, FLANGEBOLT, FLANGE
-
808GJ-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
8195822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
8290105-08190-00 BOLT, FLANGEBOLT, FLANGE
-
838GC-2193A-00-00 PROTECTORPROTECTOR
-
8490109-066G1-00 BOLTBOLT
-
8590480-27001-00 GROMMETGROMMET
-
8690480-40003-00 GROMMETGROMMET
-
878GC-2195E-00-00 PLATE, STEERING BRACKET 1PLATE, STEERING BRACKET 1
-
888GC-2195F-00-00 PLATE, STEERING BRACKET 2PLATE, STEERING BRACKET 2
-
898GC-2198F-00-00 COVER 1COVER 1
-
908GC-2198J-00-00 COVER 3COVER 3
-
9190269-05003-00 RIVETRIVET
-
9290269-05002-00 RIVETRIVET
-
938GC-22361-00-00 GUARD 1GUARD 1
-
948GC-22362-00-00 GUARD 2GUARD 2
-
9590109-06220-00 BOLTBOLT
-
968GC-2179D-10-00 PLATE, EPA OFFROAD 2PLATE, EPA OFFROAD 2
