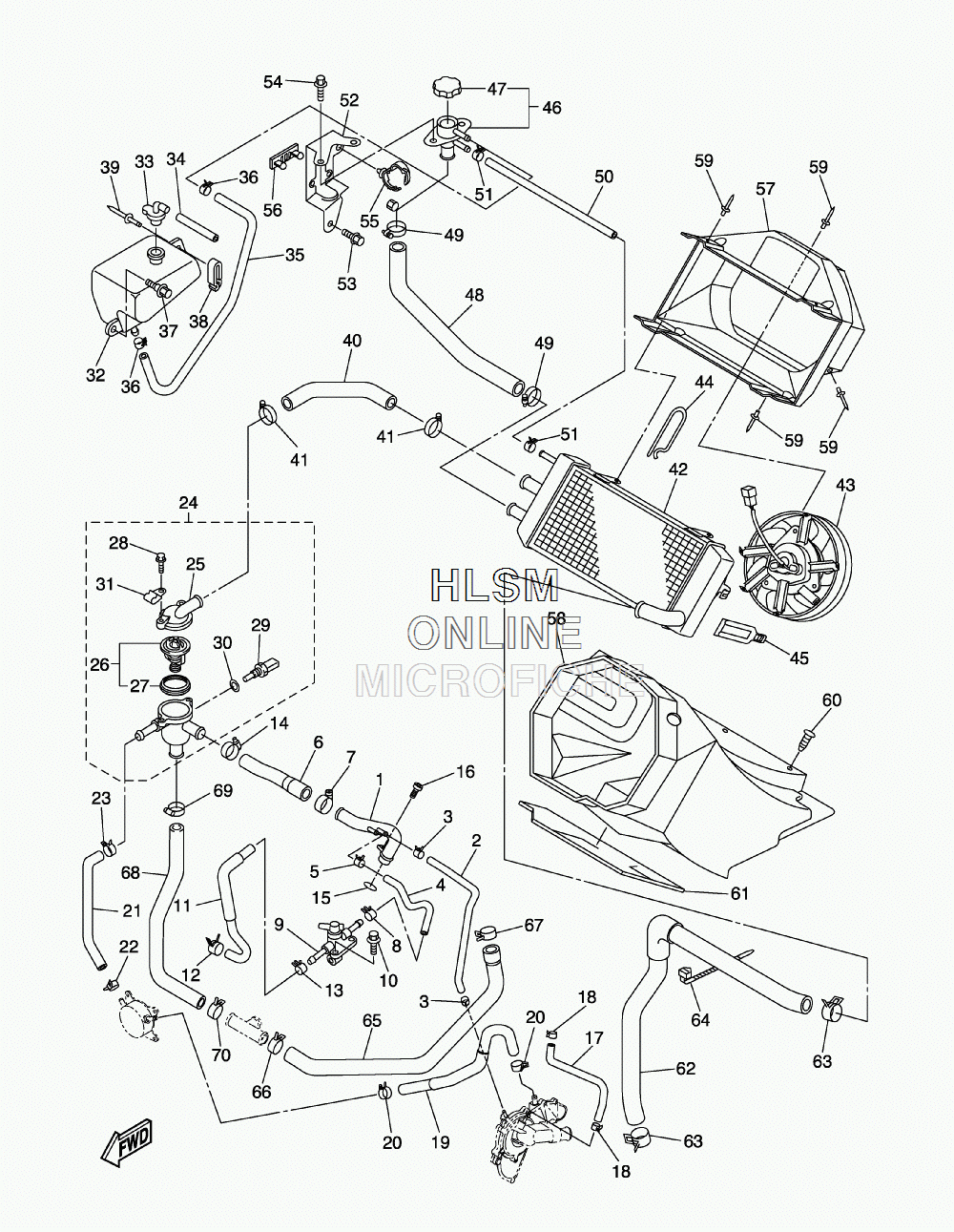

COOLING SYSTEM для Yamaha VK PROFESSIONAL - 2008 года выпуска
-
№АртикулНазвание
-
18ES-12482-00-00 PIPE 2PIPE 2
-
28ES-12485-00-00 PIPE 5PIPE 5
-
390467-11090-00 CLIP, SCISSORCLIP, SCISSOR
-
48FN-12577-00-00 HOSE 2HOSE 2
-
590467-11090-00 CLIP, SCISSORCLIP, SCISSOR
-
68FN-1243E-00-00 HOSE 2HOSE 2
-
790450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
890467-11090-00 CLIP, SCISSORCLIP, SCISSOR
-
98FW-1249A-00-00 COCK ASSYCOCK ASSY
-
1095817-06014-00 BOLT, FLANGEBOLT, FLANGE
-
118FN-12579-00-00 HOSE 4HOSE 4
-
1290467-11090-00 CLIP, SCISSORCLIP, SCISSOR
-
1390467-11090-00 CLIP, SCISSORCLIP, SCISSOR
-
1490450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1593210-26006-00 O-RINGO-RING
-
1691317-06016-00 BOLTBOLT
-
178ES-12578-00-00 HOSE 3HOSE 3
-
1890467-11090-00 CLIP, SCISSORCLIP, SCISSOR
-
198ES-12588-00-00 HOSE 5HOSE 5
-
2090467-17089-00 CLIPCLIP
-
218FN-12589-00-00 HOSE 6HOSE 6
-
2290467-17089-00 CLIPCLIP
-
2390467-17089-00 CLIPCLIP
-
248FN-12580-00-00 JOINT ASSYJOINT ASSY
-
255EB-12413-00-00 ...COVER, THERMOSTAT...COVER, THERMOSTAT
-
268FN-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
278EK-12412-00-00 ...SEAL, THERMOSTAT...SEAL, THERMOSTAT
-
2895027-06020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
298CC-85790-01-00 ...THERMOSENSOR ASSY...THERMOSENSOR ASSY
-
3090201-12790-00 ...WASHER, PLATE...WASHER, PLATE
-
3190465-06M28-00 ...CLAMP...CLAMP
-
328FN-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
3389A-21815-00-00 CAPCAP
-
3490445-112E0-00 HOSE (L70)HOSE (L70)
-
3590445-120J8-00 HOSE (L450)HOSE (L450)
-
3690467-11032-00 CLIP, SCISSORCLIP, SCISSOR
-
3790149-06148-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
3890465-10048-00 CLAMPCLAMP
-
3990267-48182-00 RIVET, BLINDRIVET, BLIND
-
408FN-1244G-00-00 HOSE, 4HOSE, 4
-
4190450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
428FN-12460-00-00 RADIATOR ASSYRADIATOR ASSY
-
438FN-12405-01-00 BLOWER ASSYBLOWER ASSY
-
448CR-77384-01-00 PINPIN
-
458FA-2389E-00-00 LATCHLATCH
-
468FN-12590-00-00 CONDUCTION ASSYCONDUCTION ASSY
-
473XP-12462-00-00 ...CAP, RADIATOR...CAP, RADIATOR
-
488FN-1244H-00-00 HOSE 5HOSE 5
-
4990450-28014-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
5090445-120J6-00 HOSE (L250)HOSE (L250)
-
5190467-11032-00 CLIP, SCISSORCLIP, SCISSOR
-
528FN-1244E-00-00 BRACKET 1BRACKET 1
-
5395827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
5495812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
5590464-20181-00 CLAMPCLAMP
-
568FA-83614-00-00 BRACKETBRACKET
-
578FN-12467-00-00 COVER, RADIATORCOVER, RADIATOR
-
588FN-21851-00-00 DUCT, COOLERDUCT, COOLER
-
5990267-48141-00 RIVET, BLINDRIVET, BLIND
-
6090269-05055-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
618FN-77261-00-00 LINING, SHROUD 1LINING, SHROUD 1
-
628FN-12477-01-00 PIPE 7PIPE 7
-
6390467-28144-00 CLIPCLIP
-
6490460-15126-00 CLAMP, HOSECLAMP, HOSE
-
658FN-1248A-00-00 PIPE 8PIPE 8
-
6690467-28046-00 CLIP, SCISSORCLIP, SCISSOR
-
6790467-310A0-00 CLIPCLIP
-
688FN-1248E-00-00 PIPE 9PIPE 9
-
6990450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
7090467-28144-00 CLIPCLIP
