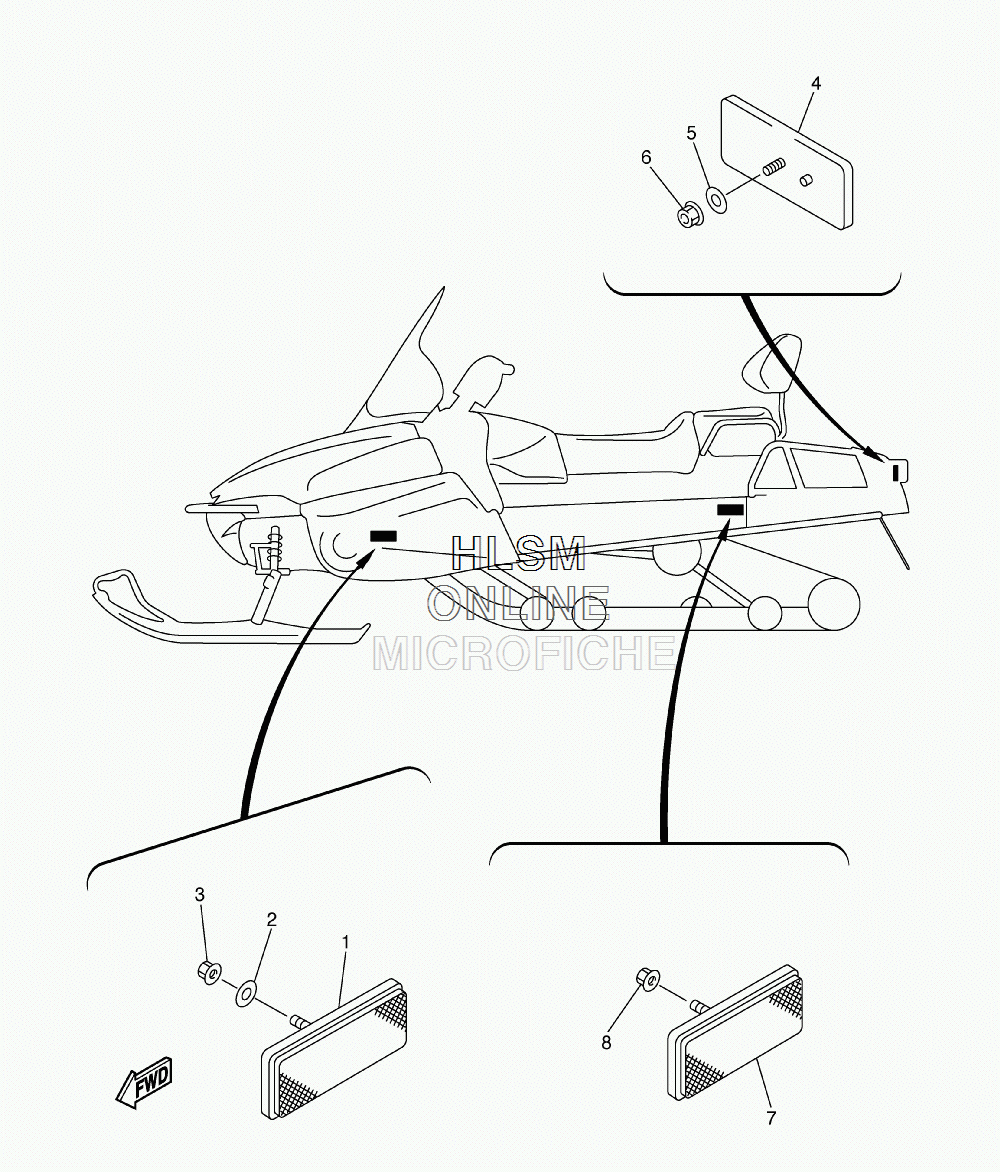

REFLECTOR ASSY для Yamaha VK PROFESSIONAL - 2008 года выпуска
-
№АртикулНазвание
-
111H-85110-01-00 FRT REFLECTOR ASYFRT REFLECTOR ASY
-
290201-05036-00 WASHER, PLATEWASHER, PLATE
-
395707-05300-00 NUT, FLANGENUT, FLANGE
-
43Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
590201-05036-00 WASHER, PLATEWASHER, PLATE
-
695707-05300-00 NUT, FLANGENUT, FLANGE
-
73Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
895707-05500-00 NUT, FLANGENUT, FLANGE
