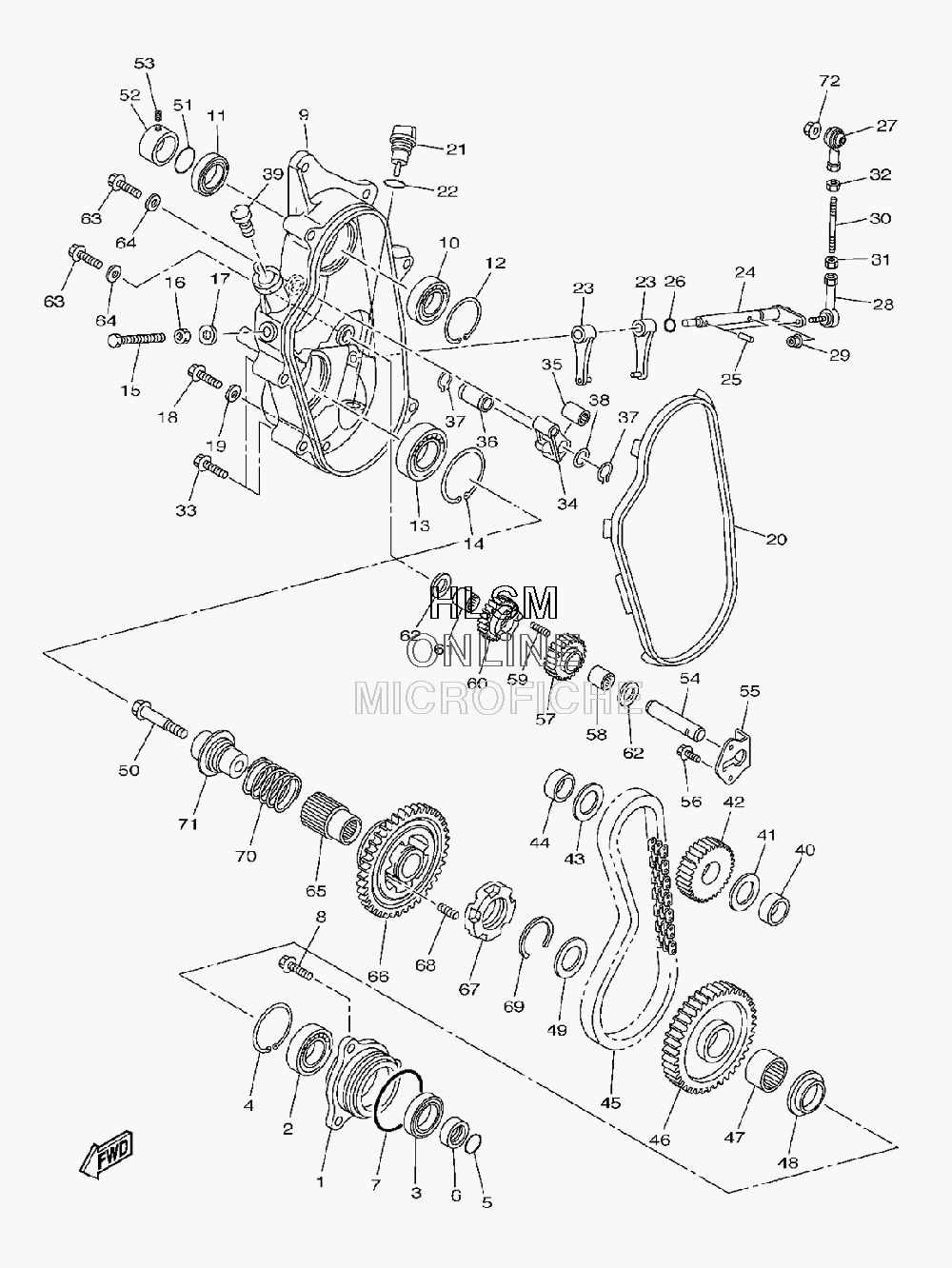

CHAINCASE ASSY для Yamaha FX NYTRO RTX - 2009 года выпуска
-
№АртикулНазвание
-
18GL-47633-00-00 HOUSING, BEARING 2HOUSING, BEARING 2
-
293306-205A9-00 BEARINGBEARING
-
393102-35010-00 OIL SEALOIL SEAL
-
499009-52500-00 CIRCLIPCIRCLIP
-
593210-25071-00 O-RINGO-RING
-
690387-2508C-00 COLLARCOLLAR
-
793210-60426-00 O-RINGO-RING
-
895822-08025-00 BOLT,FLANGE(4LN)BOLT,FLANGE(4LN)
-
98GL-47543-01-00 CAP, HOUSINGCAP, HOUSING
-
1093306-20511-00 BEARINGBEARING
-
1193102-35473-00 OIL SEALOIL SEAL
-
1299009-52500-00 CIRCLIPCIRCLIP
-
1393306-00711-00 BEARINGBEARING
-
1499009-62500-00 CIRCLIPCIRCLIP
-
1590101-10357-00 BOLTBOLT
-
1695302-10700-00 NUTNUT
-
1790210-10004-00 WASHER, SEALWASHER, SEAL
-
1897002-08016-00 BOLTBOLT
-
1990210-08017-00 WASHER, SEALWASHER, SEAL
-
208GL-47558-00-00 RING, HOUSINGRING, HOUSING
-
218GL-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
2293210-19522-00 O-RINGO-RING
-
238GL-18511-01-00 FORK, SHIFT 1FORK, SHIFT 1
-
248GL-18197-00-00 SHAFTSHAFT
-
2591609-50022-00 PIN, SPRINGPIN, SPRING
-
2693210-12131-00 O-RINGO-RING
-
278CW-18156-00-00 JOINT 1JOINT 1
-
2888T-18157-00-00 JOINT 2JOINT 2
-
2995602-06200-00 NUT-UNUT-U
-
308GL-18115-00-00 ROD, SHIFTROD, SHIFT
-
3190170-06289-00 NUT,HEXAGONNUT,HEXAGON
-
3295302-06600-00 NUTNUT
-
3390105-08179-00 BOLT, FLANGEBOLT, FLANGE
-
348ES-47613-00-00 HOLDERHOLDER
-
3593311-32685-00 BEARINGBEARING
-
3690387-22005-00 COLLARCOLLAR
-
3799009-26400-00 CIRCLIPCIRCLIP
-
3890201-266P2-00 WASHER, PLATEWASHER, PLATE
-
398GL-47575-00-00 PLUGPLUG
-
4090387-30011-00 COLLARCOLLAR
-
4190208-30001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
428FA-17682-10-00 SPROCKET, CHAIN DRIVE (21T)SPROCKET, CHAIN DRIVE (21T)
-
4390208-26002-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
4490387-26007-00 COLLARCOLLAR
-
4594890-09068-00 CHAIN (68L)CHAIN (68L)
-
468FB-47587-90-00 SPROCKET, CHAIN DRIVEN (39T)SPROCKET, CHAIN DRIVEN (39T)
-
4793317-33179-00 BEARINGBEARING
-
4890387-2008G-00 COLLARCOLLAR
-
4990201-320S3-00 WASHER, PLATEWASHER, PLATE
-
5090105-10320-00 BOLT, FLANGEBOLT, FLANGE
-
5193210-25642-00 O-RINGO-RING
-
5290387-25018-00 COLLARCOLLAR
-
5390113-06064-00 BOLT, SETBOLT, SET
-
548CW-1761A-00-00 SHAFT, 1SHAFT, 1
-
558CW-47591-00-00 PLATEPLATE
-
5690105-060A6-00 BOLT, FLANGEBOLT, FLANGE
-
578FB-17692-00-00 SPROCKET, DRIVE (18T)SPROCKET, DRIVE (18T)
-
5893317-21578-00 BEARINGBEARING
-
5990501-060A1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
608CW-17143-00-00 GEAR, REVERSE PINION 1 (18T)GEAR, REVERSE PINION 1 (18T)
-
6193317-21578-00 BEARINGBEARING
-
6290201-16245-00 WASHER, PLATEWASHER, PLATE
-
6390105-060A6-00 BOLT, FLANGEBOLT, FLANGE
-
6490210-06006-00 WASHER, SEALWASHER, SEAL
-
658CW-47571-00-00 JOURNAL 1JOURNAL 1
-
668CW-17243-00-00 GEAR, REVERSE WHEEL 1 (50T)GEAR, REVERSE WHEEL 1 (50T)
-
678CW-17492-00-00 DOG, TRANSMISSION SHIFTDOG, TRANSMISSION SHIFT
-
6890501-066J5-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
6993440-39175-00 CIRCLIPCIRCLIP
-
7090501-260A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
718GL-48566-00-00 COLLARCOLLAR
-
7295602-06200-00 NUT-UNUT-U
