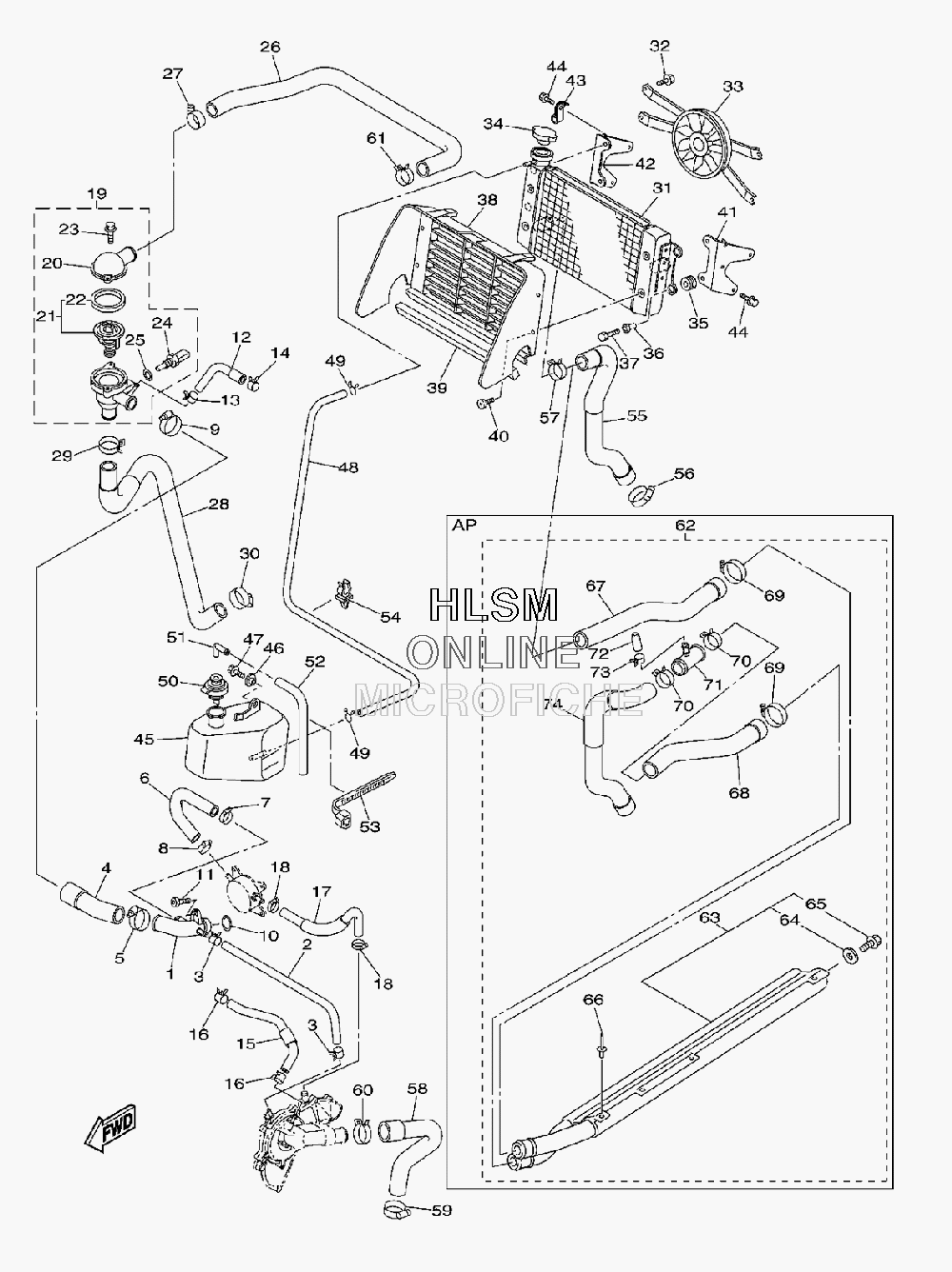

COOLING SYSTEM для Yamaha FX NYTRO RTX - 2009 года выпуска
-
№АртикулНазвание
-
18GL-12482-00-00 PIPE 2PIPE 2
-
28GL-12485-00-00 PIPE 5PIPE 5
-
390467-110A2-00 CLIPCLIP
-
48GL-1243E-00-00 HOSE 2HOSE 2
-
590450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
68GL-12589-00-00 HOSE 6HOSE 6
-
790450-19001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
890450-19001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
990450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1093210-235A1-00 O-RINGO-RING
-
1191312-06016-00 BOLTBOLT
-
128GL-12577-00-00 HOSE 2HOSE 2
-
1390467-110A2-00 CLIPCLIP
-
1490467-120A5-00 CLIPCLIP
-
158GL-12578-00-00 HOSE 3HOSE 3
-
1690467-110A2-00 CLIPCLIP
-
178ES-12588-00-00 HOSE 5HOSE 5
-
1890450-19001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
198GL-12580-00-00 JOINT ASSYJOINT ASSY
-
208FP-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
218FP-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
228FP-12412-00-00 SEAL, THERMOSTATSEAL, THERMOSTAT
-
2395022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
248CC-85790-01-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
2590201-12790-00 WASHER, PLATEWASHER, PLATE
-
268GL-1244G-00-00 HOSE, 4HOSE, 4
-
2790450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
288GL-1248A-00-00 PIPE 8PIPE 8
-
2990450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3090467-28046-00 CLIPCLIP
-
318GL-12461-00-00 RADIATOR ASSYRADIATOR ASSY
-
325GJ-12675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
338GL-12405-00-00 BLOWER ASSYBLOWER ASSY
-
345SL-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
3590480-15363-00 GROMMETGROMMET
-
3690387-07391-00 COLLARCOLLAR
-
3797022-06025-00 BOLT,HEXAGONBOLT,HEXAGON
-
388GL-12661-00-00 DUCTDUCT
-
398GL-12465-00-00 DAMPER, RADIATORDAMPER, RADIATOR
-
4090149-06165-00 SCREWSCREW
-
418GL-12464-00-00 STAY, RADIATORSTAY, RADIATOR
-
428GL-12464-10-00 STAY, RADIATORSTAY, RADIATOR
-
438GL-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
4495822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
458GL-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
4690387-06071-00 COLLARCOLLAR
-
4795822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
4890445-096F4-00 HOSEHOSE
-
4990467-08003-00 CLIPCLIP
-
508GL-21875-00-00 CAPCAP
-
5126H-21828-00-00 ELBOWELBOW
-
5290445-094K7-00 HOSE (L180)HOSE (L180)
-
5390464-15195-00 CLAMPCLAMP
-
5490464-09008-00 CLAMPCLAMP
-
558GL-1244H-00-00 HOSE 5HOSE 5
-
5690450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
5790467-28046-00 CLIPCLIP
-
588GL-1244J-00-00 HOSE 6HOSE 6
-
5990450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
6090467-310A0-00 CLIPCLIP
-
6190467-28046-00 CLIPCLIP
-
628HA-124A0-00-00 HEAT EXCHANGER KIT APHEAT EXCHANGER KIT AP
-
638HA-1241A-00-00 HEAT EXCHANGER ASSY 4 APHEAT EXCHANGER ASSY 4 AP
-
6490210-06006-00 WASHER, SEAL APWASHER, SEAL AP
-
6597022-06010-00 BOLT(3JP) APBOLT(3JP) AP
-
6690267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW) APRIVET, BLIND (4.7X16.4 YELLOW) AP
-
678HA-1244H-00-00 HOSE 5 APHOSE 5 AP
-
688HA-12551-00-00 HOSE 7 APHOSE 7 AP
-
6990450-35001-00 HOSE CLAMP ASSY APHOSE CLAMP ASSY AP
-
7090467-28046-00 CLIP APCLIP AP
-
718HA-12481-00-00 PIPE 1 APPIPE 1 AP
-
7216G-13569-00-00 PLUG, BLIND APPLUG, BLIND AP
-
7390467-11028-00 CLIP APCLIP AP
-
748HA-12552-00-00 HOSE 8 APHOSE 8 AP
