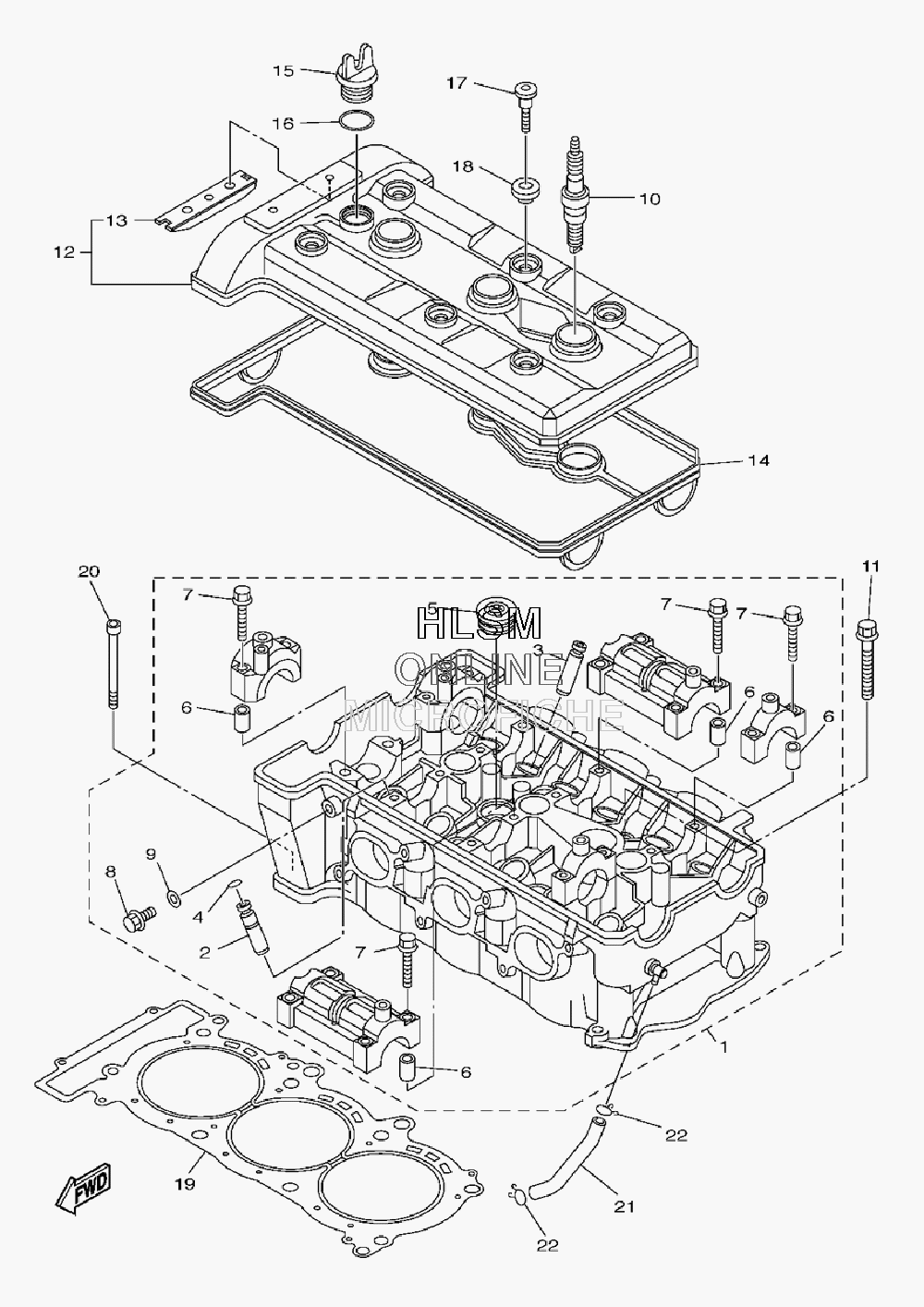

CYLINDER W/ HEAD ASSY для Yamaha RS VIKING PROFESSIONAL 2-PASS - 2009 года выпуска
-
№АртикулНазвание
-
18ES-11101-02-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
25JW-11133-10-00 GUIDE, INTAKE VALVEGUIDE, INTAKE VALVE
-
33P6-11134-10-00 GUIDE, VALVE 2GUIDE, VALVE 2
-
493440-09141-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
590340-27001-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
691808-16023-00 PIN, DOWELPIN, DOWEL
-
790105-06026-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
895022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
990430-08119-00 GASKETGASKET
-
10NGK-CR8E0-00-00 PLUG, SPARK (NGK R CR8E)PLUG, SPARK (NGK R CR8E)
-
1190119-10004-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
128ES-11191-01-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
135BE-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
148ES-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
153Y1-15363-00-00 PLUG, OILPLUG, OIL
-
1693210-19123-00 O-RINGO-RING
-
1790109-066F0-00 BOLTBOLT
-
184KG-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
198ES-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
2091312-06065-00 BOLTBOLT
-
218ES-13416-00-00 PIPE, OIL 1PIPE, OIL 1
-
2290467-100A1-00 CLIPCLIP
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CAMSHAFT W/ CAMSHAFT CHAIN ASSY
- CARBURETOR ASSY
- CHAINCASE ASSY
- CHAINCASE ASSY 2
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - TUNE-UP KIT - SPROCKETS (OPTION)
- CLUTCH - TUNE-UP KIT - WEIGHTS (OPTION)
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKCASE COVER
- CRANKSHAFT W/ PISTON ASSY
- • CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - COLOR CHART
- OIL COOLER ASSY W/ OIL FILTER
- OIL PUMP ASSY
- OIL TANK ASSY
- REFLECTOR ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - REDUCTION GEAR W/ CLUTCH ASSY
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ TRACK
- SUSPENSION - IDLER WHEELS W/ TRACK 2
- SUSPENSION - IDLER WHEELS W/ TRACK 3
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
- VALVE ASSY
- WATER PUMP ASSY
