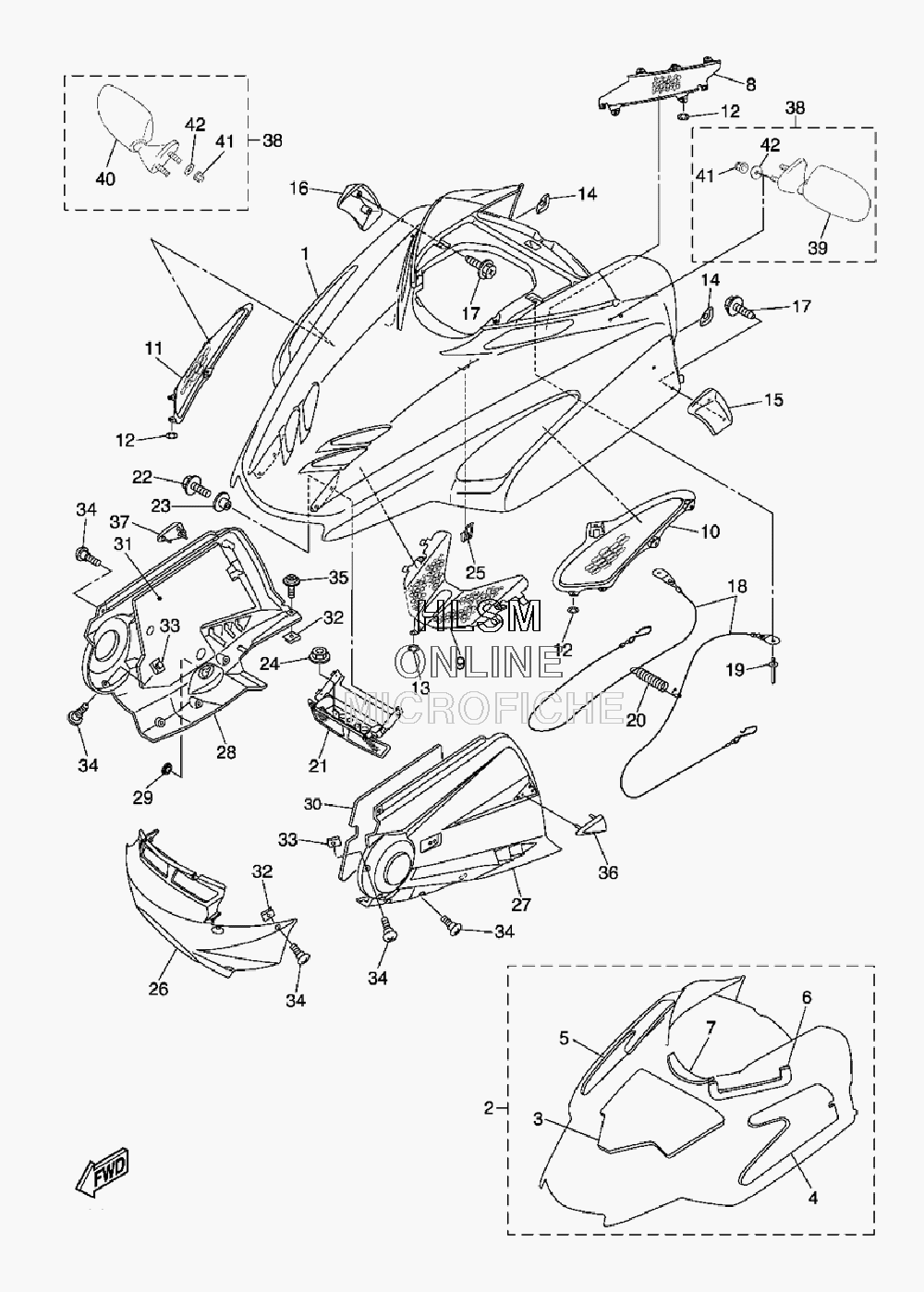

HOOD ASSY для Yamaha RS VIKING PROFESSIONAL 2-PASS - 2009 года выпуска
-
№АртикулНазвание
-
18FN-77111-00-P2 SHROUD FOR DRMKSHROUD FOR DRMK
-
18FN-77111-00-P3 SHROUD FOR BBNM8SHROUD FOR BBNM8
-
28FN-W7726-00-00 LINING SETLINING SET
-
38FN-77271-00-00 DAMPER, NOISE 11DAMPER, NOISE 11
-
48FN-77272-00-00 DAMPER, NOISE 12DAMPER, NOISE 12
-
58FN-77273-00-00 DAMPER, NOISE 13DAMPER, NOISE 13
-
68FN-77264-00-00 LINING, SHROUD 4LINING, SHROUD 4
-
78DS-84366-00-00 DAMPER, HEADLIGHT 1DAMPER, HEADLIGHT 1
-
88FN-77130-00-00 LOUVER COMP.LOUVER COMP.
-
98FN-77134-00-00 LOUVER 4LOUVER 4
-
108FN-77109-00-00 LOUVER 5LOUVER 5
-
118FN-77108-00-00 LOUVER 6LOUVER 6
-
1290183-05068-00 NUT, SPRINGNUT, SPRING
-
1390183-08065-00 NUT, SPRINGNUT, SPRING
-
148FA-77167-10-00 TRIM 3TRIM 3
-
158FN-77161-00-00 STRIP, WEATHER 1STRIP, WEATHER 1
-
168FN-77162-00-00 STRIP, WEATHER 2STRIP, WEATHER 2
-
1797702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
188FN-77118-00-00 STOPPER, SHROUDSTOPPER, SHROUD
-
1990267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
2089A-77159-00-00 CLAMP, RODCLAMP, ROD
-
218FN-77140-00-00 HINGE ASSYHINGE ASSY
-
2295802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2390387-06681-00 COLLARCOLLAR
-
2495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
258FA-77135-00-00 CLAMP 1CLAMP 1
-
268FN-21912-00-00 PANEL, SUB FRAME 1PANEL, SUB FRAME 1
-
278ES-2197H-01-00 HOOD 3HOOD 3
-
288GS-2198H-00-00 HOOD 4HOOD 4
-
2990338-30256-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
308ES-77276-00-00 DAMPER, NOISE 16DAMPER, NOISE 16
-
318GS-77277-00-00 DAMPER, NOISE 17DAMPER, NOISE 17
-
3290183-06053-00 NUT, SPRINGNUT, SPRING
-
3390183-06100-00 NUT, SPRINGNUT, SPRING
-
3490154-06009-00 SCREW, BINDINGSCREW, BINDING
-
3590159-06011-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
368FA-77561-00-00 PROTECTOR, SIDE 1PROTECTOR, SIDE 1
-
378FA-77562-00-00 PROTECTOR, SIDE 2PROTECTOR, SIDE 2
-
388CR-W2628-10-00 REAR VIEW MIRROR SETREAR VIEW MIRROR SET
-
394SV-26280-00-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
404SV-26290-00-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
4195602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4290201-06072-00 WASHER, PLATEWASHER, PLATE
