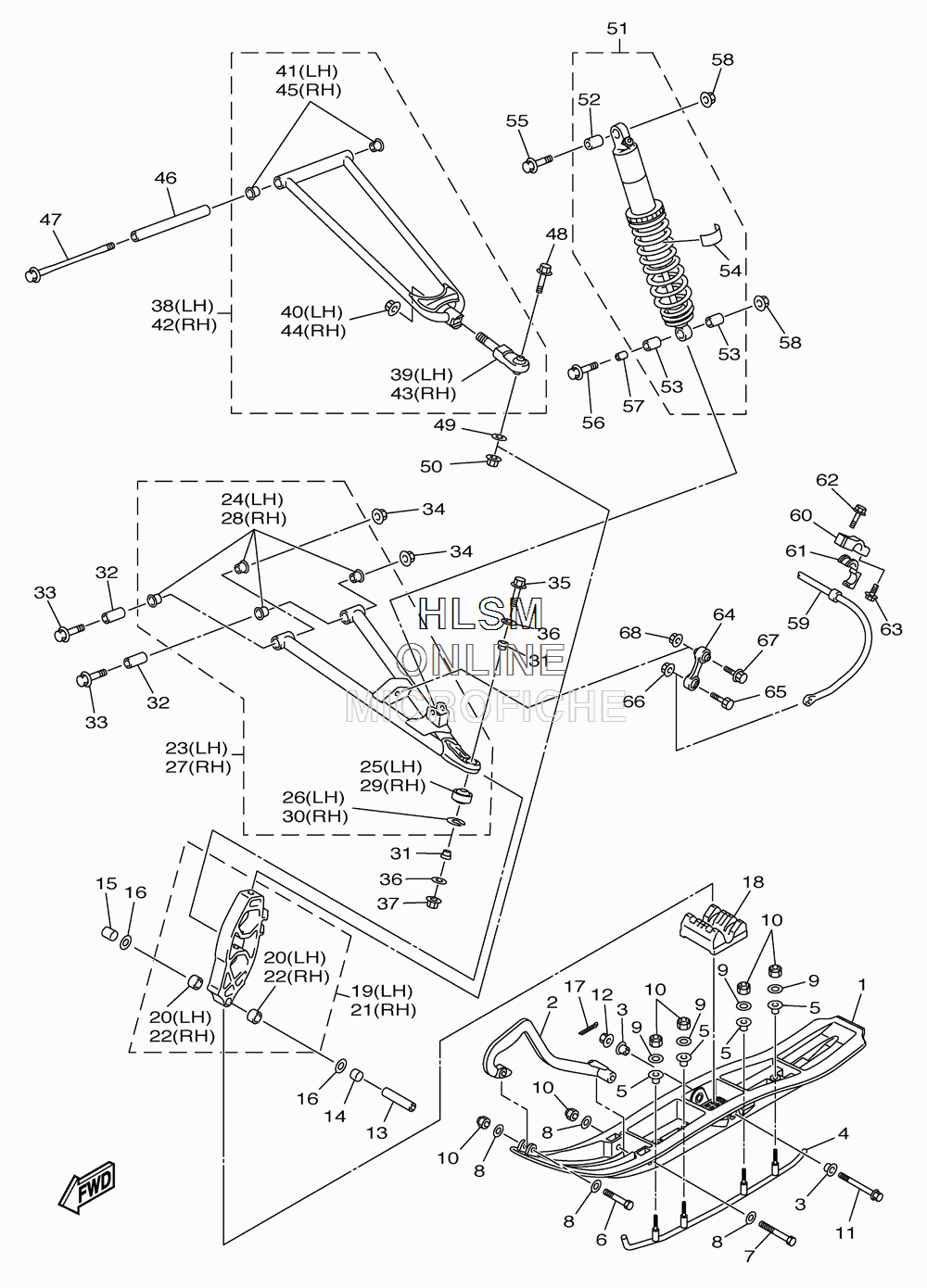

SUSPENSION - FRONT W/ SKI ASSY для Yamaha FX NYTRO MTX - 2010 года выпуска
-
№АртикулНазвание
-
18FK-F3711-00-00 SKI 1SKI 1
-
28EK-F3712-00-00 BLUE 8DM HANDLE PLASBLUE 8DM HANDLE PLAS
-
38EX-F3754-00-00 COLLAR, 1COLLAR, 1
-
48GP-F3731-00-00 RUNNER 1RUNNER 1
-
58EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
69702M-08055-00 BOLT,HEXAGONBOLT,HEXAGON
-
79702M-08100-00 BOLT (83L)BOLT (83L)
-
890201-08784-00 WASHER, PLATEWASHER, PLATE
-
990201-086P8-00 WASHER, PLATEWASHER, PLATE
-
109570M-08300-00 NUT,LOCKNUT,LOCK
-
1190105-10106-00 BOLT, FLANGEBOLT, FLANGE
-
1295602-10200-00 NUT, U FLANGENUT, U FLANGE
-
1390387-10036-00 COLLARCOLLAR
-
1490387-16022-00 COLLARCOLLAR
-
1590387-16023-00 COLLARCOLLAR
-
1690201-16022-00 WASHER, PLATEWASHER, PLATE
-
1791401-20020-00 PIN, COTTERPIN, COTTER
-
188GP-23743-00-00 STOPPER 1STOPPER 1
-
198GL-23501-00-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
2090384-16N51-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
218GL-23502-00-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
2290384-16N51-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
238HA-23570-10-P0 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
2490381-18N51-00 BUSH, SOLIDBUSH, SOLID
-
258HK-23579-00-00 BALL JOINT 2BALL JOINT 2
-
2699009-35700-00 CIRCLIPCIRCLIP
-
278HA-23580-10-P0 FRONT LOWER ARM COMP. (SILVER)FRONT LOWER ARM COMP. (SILVER)
-
2890381-18N51-00 BUSH, SOLIDBUSH, SOLID
-
298HK-23579-00-00 BALL JOINT 2BALL JOINT 2
-
3099009-35700-00 CIRCLIPCIRCLIP
-
318HK-23754-00-00 COLLAR, 1COLLAR, 1
-
3290387-10065-00 COLLARCOLLAR
-
3390105-10211-00 BOLT, FLANGEBOLT, FLANGE
-
3495602-10200-00 NUT, U FLANGENUT, U FLANGE
-
3590105-10210-00 BOLT, FLANGEBOLT, FLANGE
-
3690201-10051-00 WASHER, PLATEWASHER, PLATE
-
3795602-10200-00 NUT, U FLANGENUT, U FLANGE
-
388HA-23540-00-P0 FRONT UPPER ARM COMP. (LEFT) (SILVER)FRONT UPPER ARM COMP. (LEFT) (SILVER)
-
398GK-23549-00-00 BALL JOINT 1BALL JOINT 1
-
4095602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4190381-15N50-00 BUSH, SOLIDBUSH, SOLID
-
428HA-23550-00-P0 FRONT UPPER ARM COMP. (RIGHT) (SILVER)FRONT UPPER ARM COMP. (RIGHT) (SILVER)
-
438GK-23549-00-00 BALL JOINT 1BALL JOINT 1
-
4495602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4590381-15N50-00 BUSH, SOLIDBUSH, SOLID
-
4690387-10058-00 COLLARCOLLAR
-
4790105-10353-00 BOLT, FLANGEBOLT, FLANGE
-
4891312-10045-00 BOLTBOLT
-
4990201-10052-00 WASHER, PLATEWASHER, PLATE
-
5095602-10200-00 NUT, U FLANGENUT, U FLANGE
-
518HA-2376A-30-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
528FA-2331R-00-00 DAMPER, BUSH BDAMPER, BUSH B
-
5390384-15N51-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
544AA-22259-70-00 LABEL, WARNINGLABEL, WARNING
-
5590105-10122-00 BOLT, FLANGEBOLT, FLANGE
-
5690105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
5790387-10N59-00 COLLARCOLLAR
-
5895602-10200-00 NUT, U FLANGENUT, U FLANGE
-
598GN-2386E-00-00 BAR, STABILIZER FRONT AP (14MM)BAR, STABILIZER FRONT AP (14MM)
-
598GN-2386E-10-00 BAR, STABILIZER FRONT AP (15MM WHITE)BAR, STABILIZER FRONT AP (15MM WHITE)
-
598GN-2386E-20-00 BAR, STABILIZER FRONT STD (13MM YELLOW)BAR, STABILIZER FRONT STD (13MM YELLOW)
-
608GL-2386C-00-00 HOLDER, STABILIZER FRONTHOLDER, STABILIZER FRONT
-
618GN-2386G-10-00 BUSH, STABILIZER FRONT (15.1MM)BUSH, STABILIZER FRONT (15.1MM)
-
618GN-2386G-00-00 BUSH, STABILIZER FRONT (14.1MM)BUSH, STABILIZER FRONT (14.1MM)
-
618GN-2386G-20-00 BUSH, STABILIZER FRONT (13.1MM)BUSH, STABILIZER FRONT (13.1MM)
-
6292012-08030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
6392012-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
648GN-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
6597012-10035-00 BOLT, HEXBOLT, HEX
-
6695602-10200-00 NUT, U FLANGENUT, U FLANGE
-
6795812-08040-00 BOLT, FLANGEBOLT, FLANGE
-
6895602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
