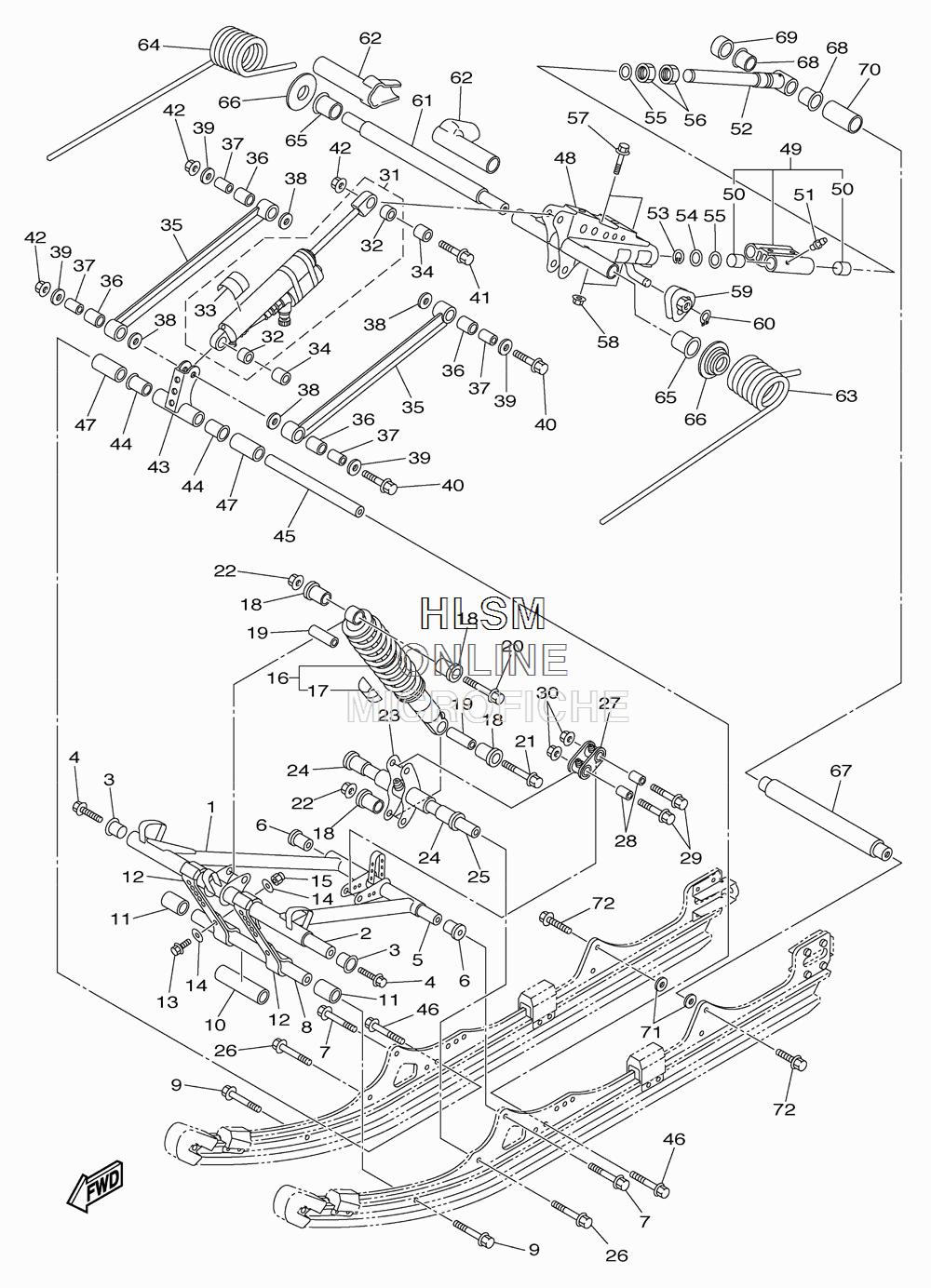

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha FX NYTRO MTX - 2010 года выпуска
-
№АртикулНазвание
-
18HA-47331-00-00 ARM, PIVOT 1ARM, PIVOT 1
-
28HA-47465-00-00 SHAFT 1SHAFT 1
-
390386-22001-00 BUSHBUSH
-
490105-103A1-00 BOLT, FLANGEBOLT, FLANGE
-
58ES-47486-00-00 SHAFT 4SHAFT 4
-
690387-10022-00 COLLARCOLLAR
-
790105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
88ES-47485-00-00 SHAFT 3SHAFT 3
-
990105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
1090387-19002-00 COLLARCOLLAR
-
1190387-19001-00 COLLARCOLLAR
-
128ES-47495-00-00 STOPPER 1STOPPER 1
-
1397002-06025-00 BOLT,HEXAGONBOLT,HEXAGON
-
1490201-06081-00 WASHER, PLATEWASHER, PLATE
-
1595702-06300-00 NUT,FLANGENUT,FLANGE
-
168HA-47481-30-00 SHOCK ABSORBER 2SHOCK ABSORBER 2
-
174AA-22259-70-00 LABEL, WARNINGLABEL, WARNING
-
1890381-14101-00 BUSH, SOLIDBUSH, SOLID
-
1990387-105G5-00 COLLARCOLLAR
-
2095812-10045-00 BOLT,FLANGE (4GB)BOLT,FLANGE (4GB)
-
2190101-10738-00 BOLTBOLT
-
2295602-10200-00 NUT, U FLANGENUT, U FLANGE
-
238ES-47349-01-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
2490386-20001-00 BUSHBUSH
-
258GN-47487-00-00 SHAFT 5SHAFT 5
-
2690105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
278FK-47416-01-00 BRACKET 2BRACKET 2
-
2890387-10024-00 COLLARCOLLAR
-
2995812-10045-00 BOLT,FLANGE (4GB)BOLT,FLANGE (4GB)
-
3095602-10200-00 NUT, U FLANGENUT, U FLANGE
-
318HA-47480-30-00 SHOCK ABSORBERSHOCK ABSORBER
-
3290384-18190-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
334AA-22259-70-00 LABEL, WARNINGLABEL, WARNING
-
3490387-10023-00 COLLARCOLLAR
-
358FK-47494-00-00 ROD, RELAYROD, RELAY
-
3690386-16001-00 BUSHBUSH
-
3790387-101A1-00 COLLARCOLLAR
-
3890201-10046-00 WASHER, PLATEWASHER, PLATE
-
3990201-10043-00 WASHER, PLATEWASHER, PLATE
-
4090105-10185-00 BOLT, FLANGEBOLT, FLANGE
-
4195812-10040-00 BOLT, FLANGEBOLT, FLANGE
-
4295602-10200-00 NUT, U FLANGENUT, U FLANGE
-
438FK-47349-10-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
4490386-20001-00 BUSHBUSH
-
458ES-47487-00-00 SHAFT 5SHAFT 5
-
4690105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
4790387-20020-00 COLLARCOLLAR
-
488ET-47332-01-00 ARM, PIVOT 2ARM, PIVOT 2
-
498ES-4745D-00-00 STOPPER, CONT. 1STOPPER, CONT. 1
-
5090380-24001-00 BUSH, SOLIDBUSH, SOLID
-
5193700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
528HA-4745A-00-00 ROD, CONTROL 1ROD, CONTROL 1
-
5399009-24400-00 CIRCLIPCIRCLIP
-
5490201-24015-00 WASHER, PLATEWASHER, PLATE
-
5590202-25001-00 WASHER, PLATEWASHER, PLATE
-
568ES-48142-00-00 STOPPER, ADJUSTING NUTSTOPPER, ADJUSTING NUT
-
5795812-10055-00 BOLT, FLANGEBOLT, FLANGE
-
5895602-10200-00 NUT, U FLANGENUT, U FLANGE
-
598ES-47447-00-00 HOOK 2HOOK 2
-
6099009-14400-00 CIRCLIPCIRCLIP
-
618ES-47475-01-00 SHAFT 2SHAFT 2
-
628ES-47445-00-00 PROTECTORPROTECTOR
-
638FS-47473-00-00 SPRING, REAR 1(K=1500NMM/DEG) APSPRING, REAR 1(K=1500NMM/DEG) AP
-
638HA-47473-10-00 SPRING, REAR 1(K=1100NMM/DEG)SPRING, REAR 1(K=1100NMM/DEG)
-
648FS-47474-00-00 SPRING, REAR 2(K=1500NMM/DEG) APSPRING, REAR 2(K=1500NMM/DEG) AP
-
648HA-47474-10-00 SPRING, REAR 2(K=1100NMM/DEG)SPRING, REAR 2(K=1100NMM/DEG)
-
6590381-28108-00 BUSH, SOLIDBUSH, SOLID
-
668ES-47467-00-00 PLATE, GUIDEPLATE, GUIDE
-
678ES-47337-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
6890386-25001-00 BUSHBUSH
-
6990387-26002-00 COLLARCOLLAR
-
7090387-26003-00 COLLARCOLLAR
-
7190201-10028-00 WASHER, PLATEWASHER, PLATE
-
7295812-10030-00 BOLT, FLANGEBOLT, FLANGE
