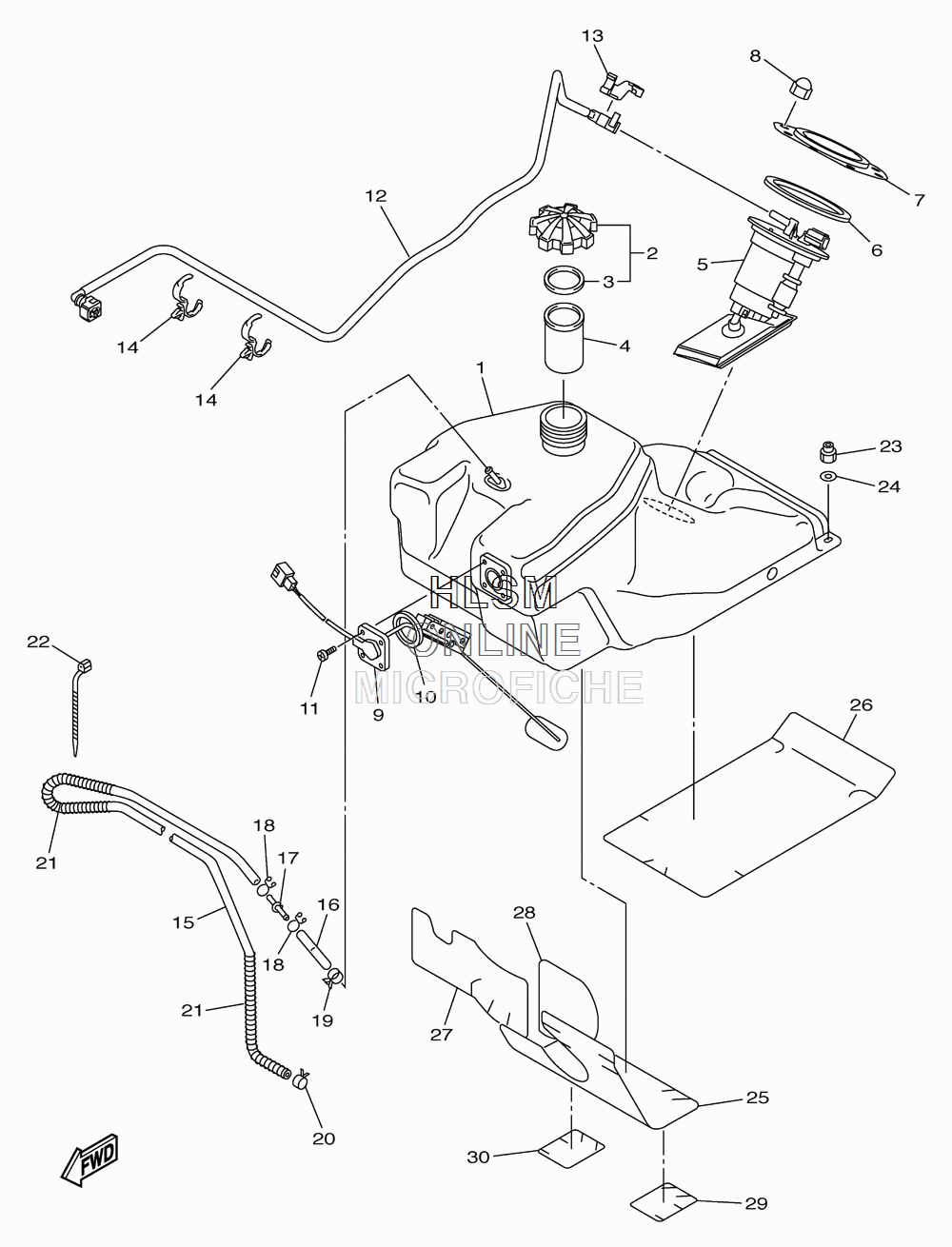

FUEL TANK ASSY для Yamaha RS VENTURE GT - 2010 года выпуска
-
№АртикулНазвание
-
18HF-24111-00-00 TANK, FUELTANK, FUEL
-
28FG-24610-00-00 CAP ASSYCAP ASSY
-
38FG-24641-00-00 GASKET, CAP 1GASKET, CAP 1
-
48FP-24114-00-00 TUBE, FILLERTUBE, FILLER
-
58GL-13907-01-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
68FP-24486-00-00 O-RINGO-RING
-
78FP-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
895302-06800-00 NUT, CROWNNUT, CROWN
-
98HF-85752-00-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
1093210-41041-00 O-RINGO-RING
-
1198902-05008-00 SCREW, BINDSCREW, BIND
-
128HF-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
1390464-14004-00 CLAMPCLAMP
-
1490464-18246-00 CLAMPCLAMP
-
1591A20-05110-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
168FR-24461-00-00 PIPE, JOINTPIPE, JOINT
-
178H8-24376-00-00 PIPE, JOINT 1PIPE, JOINT 1
-
1890467-08017-00 CLIP, SCISSORCLIP, SCISSOR
-
1990467-09026-00 CLIP, SCISSORCLIP, SCISSOR
-
2090467-09026-00 CLIP, SCISSORCLIP, SCISSOR
-
2190501-08668-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2290464-13073-00 CLAMPCLAMP
-
2395702-08300-00 NUT, LOCKNUT, LOCK
-
2490201-08053-00 WASHER, PLATEWASHER, PLATE
-
258FP-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
268FA-24141-10-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
278FP-2416F-00-00 INSULATOR, FUEL TANK 1INSULATOR, FUEL TANK 1
-
288FP-2416F-10-00 INSULATOR, FUEL TANK 1INSULATOR, FUEL TANK 1
-
298HF-2416F-00-00 INSULATOR, FUEL TANK 1INSULATOR, FUEL TANK 1
-
308HF-2416G-00-00 INSULATOR, FUEL TANK 2INSULATOR, FUEL TANK 2
