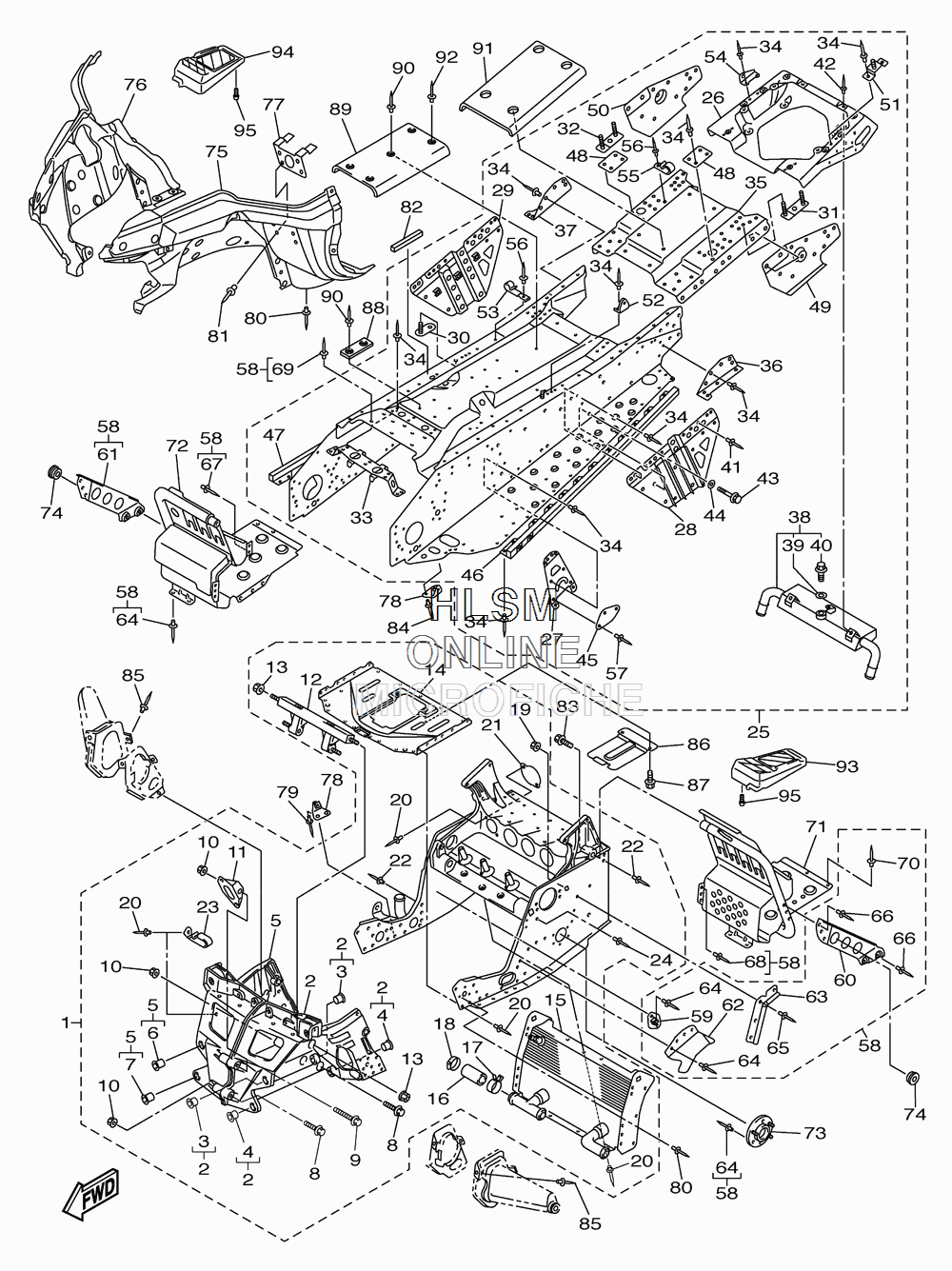

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha RS VENTURE GT - 2010 года выпуска
-
№АртикулНазвание
-
18HF-21940-01-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-12-00 BULKHEADBULKHEAD
-
390381-15001-00 BUSH, SOLIDBUSH, SOLID
-
490381-16004-00 BUSH, SOLIDBUSH, SOLID
-
58FA-W2198-12-00 BULKHEAD 2BULKHEAD 2
-
690381-15001-00 BUSH, SOLIDBUSH, SOLID
-
790381-16004-00 BUSH, SOLIDBUSH, SOLID
-
895827-08060-00 BOLT, FLANGEBOLT, FLANGE
-
995827-08065-00 BOLT, FLANGEBOLT, FLANGE
-
1095607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
118FA-2128A-01-00 BRACKET, REGULATORBRACKET, REGULATOR
-
128FG-21947-00-00 BRACKET, STEERING 1BRACKET, STEERING 1
-
1395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
148FR-2193A-01-00 PROTECTORPROTECTOR
-
158HF-12440-00-00 HEAT EXCHANGER ASSYHEAT EXCHANGER ASSY
-
168FA-12551-00-00 HOSE 7HOSE 7
-
1790467-28046-00 CLIP, SCISSORCLIP, SCISSOR
-
1890450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1995607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2090267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
218ES-2131D-00-00 PLATE, COVERPLATE, COVER
-
2290267-48176-00 RIVET, BLINDRIVET, BLIND
-
2390465-08368-00 CLAMP (51Y)CLAMP (51Y)
-
2490267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
258HF-21950-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
268FA-W2199-10-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
278HF-21943-00-00 BRACKET, MAIN TRACK 1BRACKET, MAIN TRACK 1
-
288HF-21944-00-00 BRACKET, RR.TRACK SUSPENTIONBRACKET, RR.TRACK SUSPENTION
-
298HF-21954-00-00 BRACKET, RR.TRACK SUSPENTIONBRACKET, RR.TRACK SUSPENTION
-
308CR-2194N-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
318ET-2194X-00-00 BRACKET 1BRACKET 1
-
328ET-2195X-00-00 BRACKET 2BRACKET 2
-
338ES-2194H-00-00 PROTECTOR, MUFFLERPROTECTOR, MUFFLER
-
3490267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
358HF-21916-00-00 PANEL, SUB FRAME 5PANEL, SUB FRAME 5
-
368ET-21963-00-00 PATCH 3PATCH 3
-
378ET-21964-00-00 PATCH 4PATCH 4
-
388ET-1241A-02-00 HEAT EXCHANGER ASSY 4HEAT EXCHANGER ASSY 4
-
3990210-06006-00 WASHER, SEALWASHER, SEAL
-
4095812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
4190267-47197-00 RIVET, BLIND (4.7X19.5 SILVER)RIVET, BLIND (4.7X19.5 SILVER)
-
4290267-48095-00 RIVET,BLIND (4.8X12.6 SILVER)RIVET,BLIND (4.8X12.6 SILVER)
-
4395814-10020-00 BOLT, FLANGEBOLT, FLANGE
-
4490201-10064-00 WASHER, PLATEWASHER, PLATE
-
458ET-21953-00-00 BRACKET, MAIN TRACK 2BRACKET, MAIN TRACK 2
-
468ET-21926-00-00 REINFORCEMENT, FOOTREST 1REINFORCEMENT, FOOTREST 1
-
478ET-21936-00-00 REINFORCEMENT, FOOTREST 2REINFORCEMENT, FOOTREST 2
-
488HF-2196F-00-00 BRACKET 3BRACKET 3
-
498ET-21989-00-00 PATCH 9PATCH 9
-
508ET-21997-00-00 PATCH 10PATCH 10
-
518ET-2196G-00-00 BRACKET 4BRACKET 4
-
528HF-2194X-00-00 BRACKET 1BRACKET 1
-
5390462-08081-00 CLAMPCLAMP
-
548HF-2196G-00-00 BRACKET 4BRACKET 4
-
5590462-06022-00 CLAMPCLAMP
-
5690267-48023-00 RIVET, BLIND (4.8X12.1 YELLOW)RIVET, BLIND (4.8X12.1 YELLOW)
-
5790267-48176-00 RIVET, BLINDRIVET, BLIND
-
588HF-W2195-00-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
598CR-21939-01-00 BRACKET, CHAIN HOUSINGBRACKET, CHAIN HOUSING
-
608FP-2196M-01-00 BRACKET, 5BRACKET, 5
-
618FP-2197M-01-00 BRACKET, 6BRACKET, 6
-
628FP-2198G-01-00 COVER 2COVER 2
-
638FA-21999-00-00 CLAMP, WIRE HARNESSCLAMP, WIRE HARNESS
-
6490267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
6590267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
6690267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
6790267-47186-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
6890267-47197-00 RIVET, BLIND (4.7X19.5 SILVERRIVET, BLIND (4.7X19.5 SILVER
-
6990267-48169-00 RIVET, BLINDRIVET, BLIND
-
7090267-48023-00 RIVET, BLIND (4.8X12.1 YELLOW)RIVET, BLIND (4.8X12.1 YELLOW)
-
718HF-21960-00-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
728GM-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
738EK-21920-01-00 HOUSING, REINF SUB-ASSY(L.H)HOUSING, REINF SUB-ASSY(L.H)
-
7490480-13567-00 GROMMETGROMMET
-
758GM-2196A-01-00 FRAME UNDER 1FRAME UNDER 1
-
768FP-2196E-02-00 FRAME, UNDER 2FRAME, UNDER 2
-
778FP-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
788FA-2196F-00-00 BRACKET 3BRACKET 3
-
7990267-48083-00 RIVET,BLIND (4.8X15.2 SILVER)RIVET,BLIND (4.8X15.2 SILVER)
-
8090267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
8190267-47200-00 RIVET, BLIND (4.7X19.5 BLACK)RIVET, BLIND (4.7X19.5 BLACK)
-
828HF-84553-00-00 DAMPERDAMPER
-
8395822-08020-00 BOLT, FLANGE (8AB)BOLT, FLANGE (8AB)
-
8490267-48095-00 RIVET,BLIND (4.8X12.6 SILVER)RIVET,BLIND (4.8X12.6 SILVER)
-
8590267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
868FR-2197E-00-00 PROTECTOR, FRAME FRPROTECTOR, FRAME FR
-
8792012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
888FA-21998-00-00 SPACERSPACER
-
898FG-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
9090267-48059-00 RIVET, BLIND (4.8X12.3)RIVET, BLIND (4.8X12.3)
-
918ET-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
9290267-47004-00 RIVET, BLIND (4.7X13.1 YELLOW)RIVET, BLIND (4.7X13.1 YELLOW)
-
938DM-27431-02-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
948DM-27441-02-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
9597702-50020-00 SCREW, TAPPINGSCREW, TAPPING
