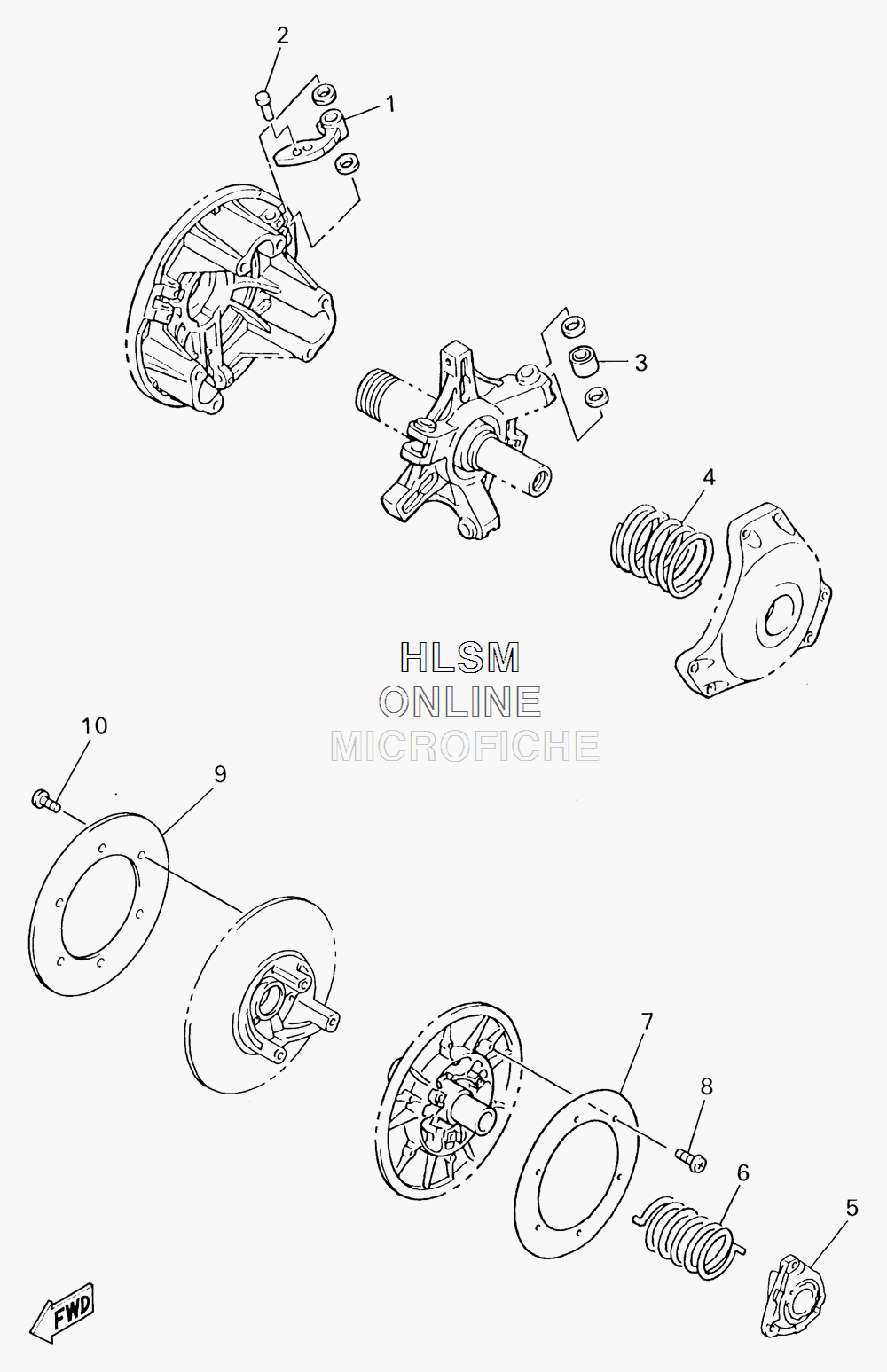

CLUTCH - WEIGHTS AND SPRINGS (OPTION) для Yamaha RS VENTURE - 2010 года выпуска
-
№АртикулНазвание
-
18DJ-17605-00-00 WEIGHT COMP URWEIGHT COMP UR
-
18FA-17605-10-00 WEIGHT COMP URWEIGHT COMP UR
-
18ES-17605-00-00 WEIGHT COMP URWEIGHT COMP UR
-
18FP-17605-00-00 WEIGHT COMP URWEIGHT COMP UR
-
18HF-17605-00-00 WEIGHT COMP URWEIGHT COMP UR
-
18FS-17605-00-00 WEIGHT COMP URWEIGHT COMP UR
-
18GC-17605-00-00 WEIGHT COMP URWEIGHT COMP UR
-
18DN-17605-30-00 WEIGHT COMP URWEIGHT COMP UR
-
18FN-17605-00-00 WEIGHT COMP URWEIGHT COMP UR
-
290261-06019-00 RIVET, COUNTERSUNK (ST13.3MM) URRIVET, COUNTERSUNK (ST13.3MM) UR
-
290266-06001-00 RIVET (AL13.3) URRIVET (AL13.3) UR
-
290266-06002-00 RIVET (ST13.3) URRIVET (ST13.3) UR
-
290269-06006-00 RIVET (ST17.2) URRIVET (ST17.2) UR
-
290261-06034-00 RIVET, COUNTERSUNK (ST13.9MM) URRIVET, COUNTERSUNK (ST13.9MM) UR
-
290261-06015-00 RIVET, COUNTERSUNK (ST10.3MM) URRIVET, COUNTERSUNK (ST10.3MM) UR
-
290261-06028-00 RIVET, COUNTERSUNK (AL10.3MM) URRIVET, COUNTERSUNK (AL10.3MM) UR
-
290261-06033-00 RIVET, COUNTERSUNK (ST17.2MM) URRIVET, COUNTERSUNK (ST17.2MM) UR
-
38FG-17624-00-00 ROLLER, COMP URROLLER, COMP UR
-
38FG-17624-20-00 ROLLER, COMP URROLLER, COMP UR
-
38FG-17624-10-00 ROLLER, COMP URROLLER, COMP UR
-
38FG-17624-30-00 ROLLER, COMP URROLLER, COMP UR
-
38FG-17624-40-00 ROLLER, COMP URROLLER, COMP UR
-
490501-582L7-00 SPRING, COMPRESSION UR (Y-GR-Y)SPRING, COMPRESSION UR (Y-GR-Y)
-
490501-600A1-00 SPRING, COMPRESSION UR (P-BL-P)SPRING, COMPRESSION UR (P-BL-P)
-
490501-580A1-00 SPRING, COMPRESSION UR (Y-BL-Y)SPRING, COMPRESSION UR (Y-BL-Y)
-
490501-550A2-00 SPRING, COMPRESSION UR (BL-BL-BL)SPRING, COMPRESSION UR (BL-BL-BL)
-
490501-624L8-00 SPRING, COMPRESSION UR (OR-SL-OR)SPRING, COMPRESSION UR (OR-SL-OR)
-
490501-603L3-00 SPRING, COMPRESSION UR (GR-WH-GR)SPRING, COMPRESSION UR (GR-WH-GR)
-
490501-603L2-00 SPRING, COMPRESSION UR (Y-WH-Y)SPRING, COMPRESSION UR (Y-WH-Y)
-
490501-602L9-00 SPRING, COMPRESSION UR (P-GR-P)SPRING, COMPRESSION UR (P-GR-P)
-
490501-602L8-00 SPRING, COMPRESSION UR (GR-GR-GR)SPRING, COMPRESSION UR (GR-GR-GR)
-
490501-602L3-00 SPRING, COMPRESSION UR (P-SL-P)SPRING, COMPRESSION UR (P-SL-P)
-
490501-601L8-00 SPRING, COMPRESSION UR (OR-P-OR)SPRING, COMPRESSION UR (OR-P-OR)
-
490501-601L7-00 SPRING, COMPRESSION UR (P-P-P)SPRING, COMPRESSION UR (P-P-P)
-
490501-583L5-00 SPRING, COMPRESSION UR (WH-P-WH)SPRING, COMPRESSION UR (WH-P-WH)
-
490501-583L4-00 SPRING, COMPRESSION UR (WH-SL-WH)SPRING, COMPRESSION UR (WH-SL-WH)
-
490501-583L1-00 SPRING, COMPRESSION UR (WH-WH-WH)SPRING, COMPRESSION UR (WH-WH-WH)
-
490501-583L0-00 SPRING, COMPRESSION UR (BL-WH-BL)SPRING, COMPRESSION UR (BL-WH-BL)
-
490501-582L6-00 SPRING, COMPRESSION UR (WH-GR-WH)SPRING, COMPRESSION UR (WH-GR-WH)
-
490501-582L2-00 SPRING, COMPRESSION UR (GR-SL-GR)SPRING, COMPRESSION UR (GR-SL-GR)
-
490501-551L3-00 SPRING, COMPRESSION UR (BL-P-BL)SPRING, COMPRESSION UR (BL-P-BL)
-
490501-551L9-00 SPRING, COMPRESSION UR (BL-SL-BL)SPRING, COMPRESSION UR (BL-SL-BL)
-
490501-552L5-00 SPRING, COMPRESSION UR (BL-GR-BL)SPRING, COMPRESSION UR (BL-GR-BL)
-
490501-581L5-00 SPRING, COMPRESSION UR (Y-P-Y)SPRING, COMPRESSION UR (Y-P-Y)
-
490501-581L6-00 SPRING, COMPRESSION UR (GR-P-GR)SPRING, COMPRESSION UR (GR-P-GR)
-
490501-582L1-00 SPRING, COMPRESSION UR (Y-SL-Y)SPRING, COMPRESSION UR (Y-SL-Y)
-
58BV-17604-11-00 SEAT SPRING SET URSEAT SPRING SET UR
-
58BV-17604-51-00 SEAT SPRING SET URSEAT SPRING SET UR
-
58BV-17604-31-00 SEAT SPRING SET URSEAT SPRING SET UR
-
58FA-17604-00-00 SEAT SPRING SET URSEAT SPRING SET UR
-
58BV-17604-91-00 SEAT SPRING SET URSEAT SPRING SET UR
-
58BV-17604-71-00 SEAT SPRING SET URSEAT SPRING SET UR
-
690508-556A7-00 SPRING, TORSION UR (SILVER)SPRING, TORSION UR (SILVER)
-
690508-556A2-00 SPRING, TORSION UR (GREEN)SPRING, TORSION UR (GREEN)
-
690508-536A9-00 SPRING, TORSION UR (RED)SPRING, TORSION UR (RED)
-
690508-500B1-00 SPRING, TORSION UR (BROWN)SPRING, TORSION UR (BROWN)
-
690508-60012-00 SPRING, TORSION UR (PINK)SPRING, TORSION UR (PINK)
-
690508-60007-00 SPRING, TORSION UR (WHITE)SPRING, TORSION UR (WHITE)
-
690508-60016-00 SPRING, TORSION UR (WH-WH)SPRING, TORSION UR (WH-WH)
-
690508-60018-00 SPRING, TORSION UR (P-P)SPRING, TORSION UR (P-P)
-
78CM-17665-00-00 PLATE 1 URPLATE 1 UR
-
890150-05040-00 SCREW, ROUND HEAD (JN2) URSCREW, ROUND HEAD (JN2) UR
-
98CM-17675-00-00 PLATE 2 URPLATE 2 UR
-
1090150-05040-00 SCREW, ROUND HEAD (JN2) URSCREW, ROUND HEAD (JN2) UR
