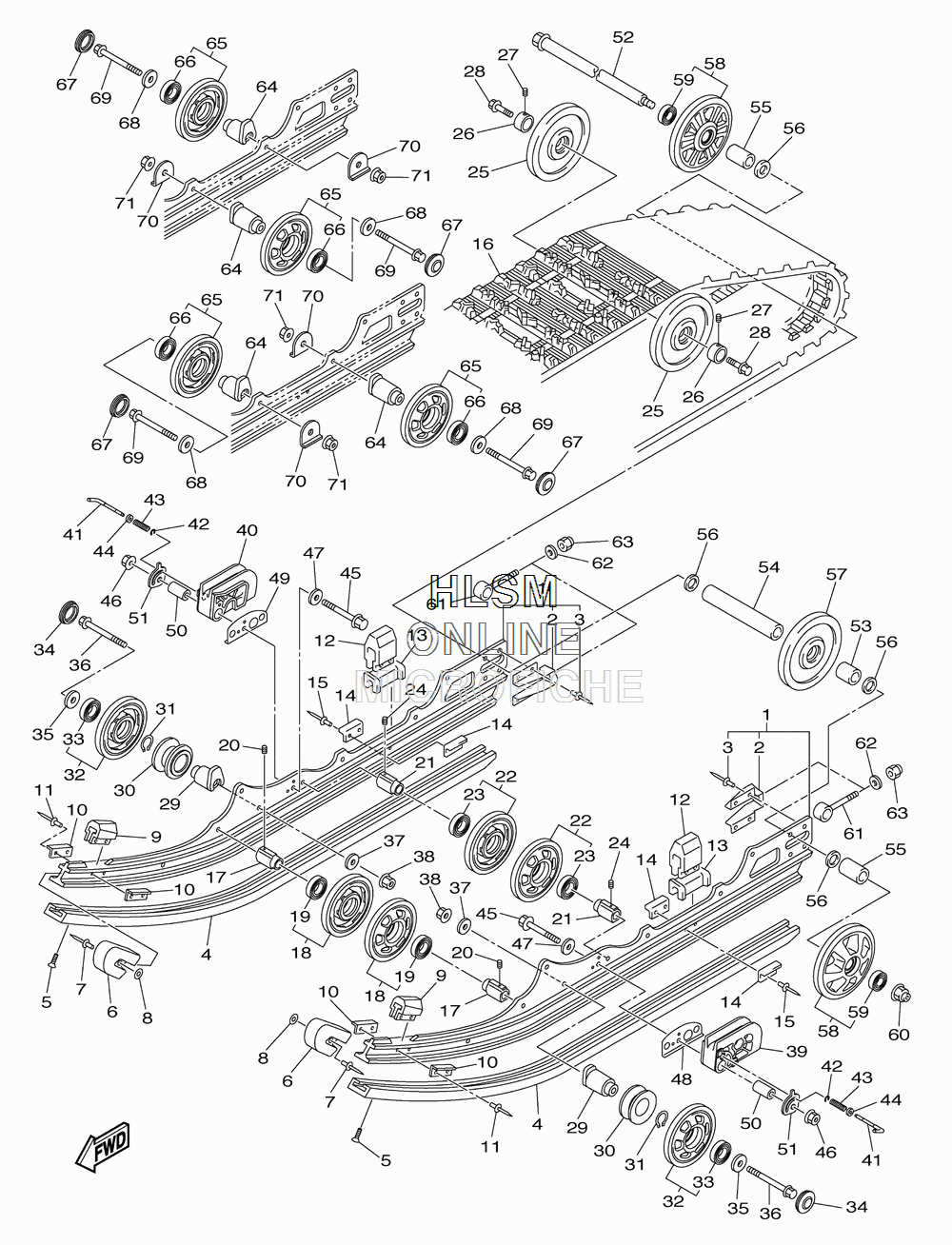

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha RS VENTURE - 2010 года выпуска
-
№АртикулНазвание
-
18ET-W4741-11-00 FRAME, SLIDINGFRAME, SLIDING
-
28DM-4741B-00-00 BRACKETBRACKET
-
38V0-47468-00-00 RIVETRIVET
-
48ET-47421-00-00 SLIDE RUNNER BLK 144SLIDE RUNNER BLK 144
-
590151-06005-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
68ED-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
790267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
890201-047R8-00 WASHER, PLATEWASHER, PLATE
-
98ES-47456-00-00 DAMPER 1DAMPER 1
-
108K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1190267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
128CM-47457-00-00 DAMPER 2DAMPER 2
-
138CM-47341-00-00 SPACERSPACER
-
148AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1590267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
168ET-47110-10-00 TRACK ASSYTRACK ASSY
-
178ES-47319-01-00 COLLARCOLLAR
-
188HF-47310-10-00 WHEEL BLK 130MMWHEEL BLK 130MM
-
1993306-00507-00 BEARINGBEARING
-
2090113-06039-00 BOLT, SETBOLT, SET
-
218ES-47319-01-00 COLLARCOLLAR
-
228HF-47310-10-00 WHEEL BLK 130MMWHEEL BLK 130MM
-
2393306-00507-00 BEARINGBEARING
-
2490113-06039-00 BOLT, SETBOLT, SET
-
258CR-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
268ES-47365-00-00 COLLAR 1COLLAR 1
-
2790113-06039-00 BOLT, SETBOLT, SET
-
2890105-103A1-00 BOLT, FLANGEBOLT, FLANGE
-
298ES-47419-10-00 BRACKET 7BRACKET 7
-
308ET-47446-00-00 HOOK 1HOOK 1
-
3199009-35400-00 CIRCLIP (6U2)CIRCLIP (6U2)
-
328HF-47310-10-00 WHEEL BLK 130MMWHEEL BLK 130MM
-
3393306-00507-00 BEARINGBEARING
-
348HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
3590201-104A7-00 WASHER, PLATEWASHER, PLATE
-
3695817-10080-00 BOLT, FLANGEBOLT, FLANGE
-
3790201-106F2-00 WASHER, PLATEWASHER, PLATE
-
3895607-10200-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
398ET-47435-10-00 SPRING, OUTSIDE 1SPRING, OUTSIDE 1
-
408ET-47436-10-00 SPRING, OUTSIDE 2SPRING, OUTSIDE 2
-
418ET-47449-10-00 PIN 1PIN 1
-
4299001-04600-00 CLIPCLIP
-
4390501-08665-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4490387-061Y1-00 WASHER,PLATEWASHER,PLATE
-
4590105-10029-00 BOLT, FLANGEBOLT, FLANGE
-
4695607-10200-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
4790201-106F2-00 WASHER, PLATEWASHER, PLATE
-
488ET-47374-10-00 WASHER 1WASHER 1
-
498ET-47375-10-00 WASHER 2WASHER 2
-
5090387-106K8-00 COLLARCOLLAR
-
518ET-47347-00-00 WASHER, LOCKWASHER, LOCK
-
528L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
5390387-20015-00 COLLARCOLLAR
-
5490387-20016-00 COLLARCOLLAR
-
5590387-20019-00 COLLARCOLLAR
-
5690201-205R6-00 WASHER, PLATEWASHER, PLATE
-
578CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
588HF-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
5993306-00444-00 BEARINGBEARING
-
6095607-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
618DM-47479-00-00 COLLAR 3COLLAR 3
-
6292902-10600-00 WASHERWASHER
-
6395702-10300-00 NUT, NYLONNUT, NYLON
-
648ES-47419-00-00 BRACKET 7BRACKET 7
-
658HF-47310-10-00 WHEEL BLK 130MMWHEEL BLK 130MM
-
6693306-00507-00 BEARINGBEARING
-
678HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
6890201-104A7-00 WASHER, PLATEWASHER, PLATE
-
6995817-10080-00 BOLT, FLANGEBOLT, FLANGE
-
7090214-10003-00 WASHER, CLAWWASHER, CLAW
-
7195607-10200-00 NUT SELF-LOCKINGNUT SELF-LOCKING
