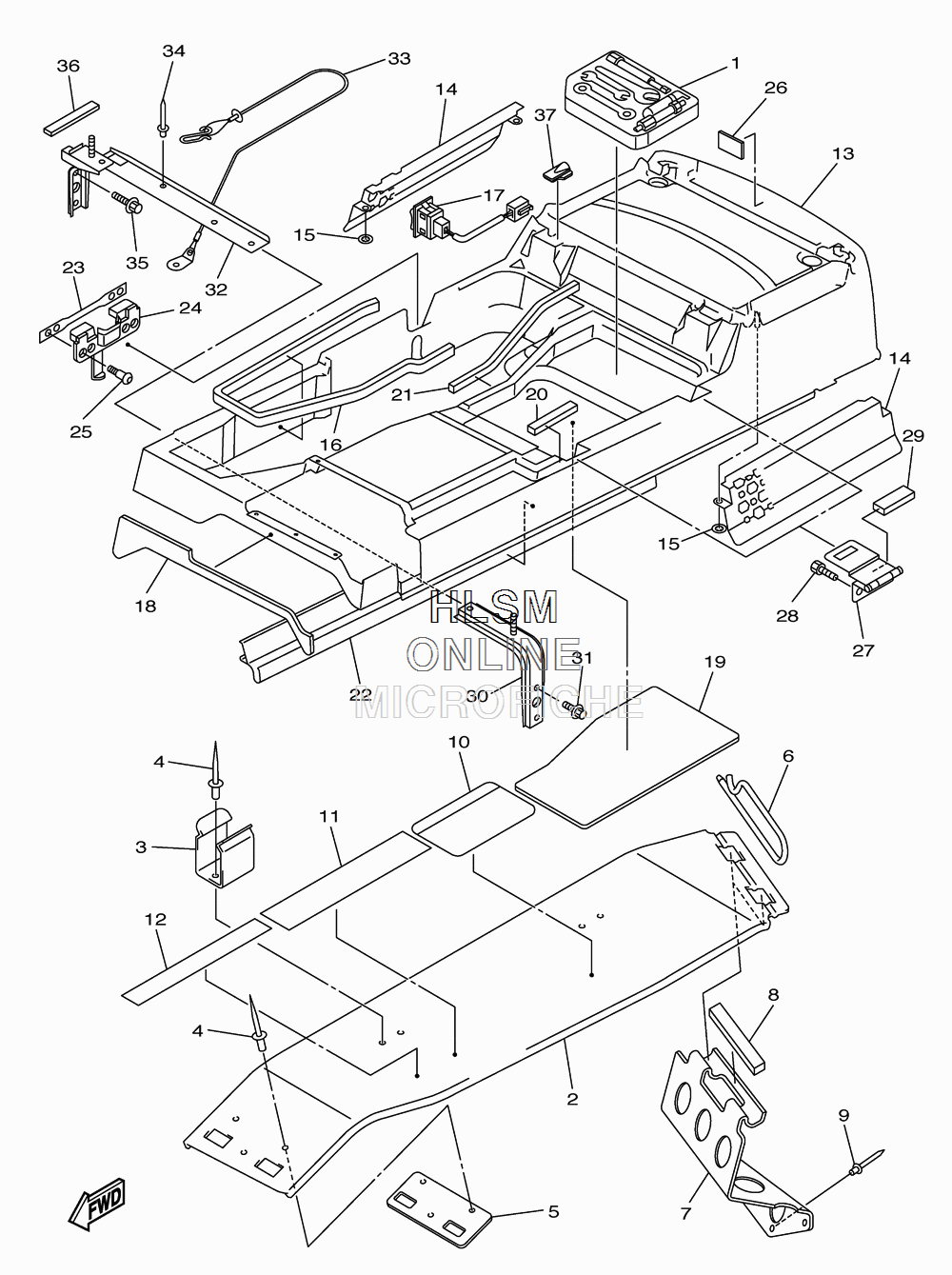

DRIVE GUARD W/ LUGGAGE BOX для Yamaha RS VIKING PRO - 2010 года выпуска
-
№АртикулНазвание
-
18FN-28100-01-00 TOOL KITTOOL KIT
-
28FA-77311-02-00 GUARD, DRIVEGUARD, DRIVE
-
38CR-77338-00-00 STAY, BELTSTAY, BELT
-
490267-48010-00 RIVET, BLIND (4.8X12 YELLOW)RIVET, BLIND (4.8X12 YELLOW)
-
58FA-77373-00-00 PROTECTORPROTECTOR
-
68CR-77384-01-00 PINPIN
-
78FN-21973-00-00 HOOKHOOK
-
88CR-77319-00-00 DAMPER 1DAMPER 1
-
990267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
108BD-77762-00-00 LABEL, WARNING 2LABEL, WARNING 2
-
118GS-47578-00-00 LABEL 1LABEL 1
-
128ES-1417E-00-00 LABEL, CAUTIONLABEL, CAUTION
-
138FN-77390-00-00 LUGGAGE BOX ASSYLUGGAGE BOX ASSY
-
148FN-77133-00-00 LOUVER 3LOUVER 3
-
1590183-05068-00 NUT, SPRINGNUT, SPRING
-
168FN-2414G-00-00 SEALSEAL
-
178ET-82917-00-00 SWITCHSWITCH
-
188FN-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
198FN-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
208FN-241A3-00-00 SEAL 3SEAL 3
-
218FN-241A4-00-00 SEAL 4SEAL 4
-
228FN-2196T-00-00 TRIM 1TRIM 1
-
238FN-2478C-00-00 BAR, SEAT LEVERBAR, SEAT LEVER
-
248FN-24723-00-00 DAMPER, SEATDAMPER, SEAT
-
2590111-05020-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
265TG-84163-00-00 DAMPERDAMPER
-
278FN-24772-00-00 HINGE ASSYHINGE ASSY
-
2890110-06043-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
298FN-2414E-00-00 SEAL 2SEAL 2
-
308FN-2194N-01-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
3195812-08014-00 BOLT, FLANGEBOLT, FLANGE
-
328FN-2194R-01-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
338FN-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
3490267-47186-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
3595812-08014-00 BOLT, FLANGEBOLT, FLANGE
-
368FN-241A3-00-00 SEAL 3SEAL 3
-
378FN-24742-00-00 GROMMETGROMMET
