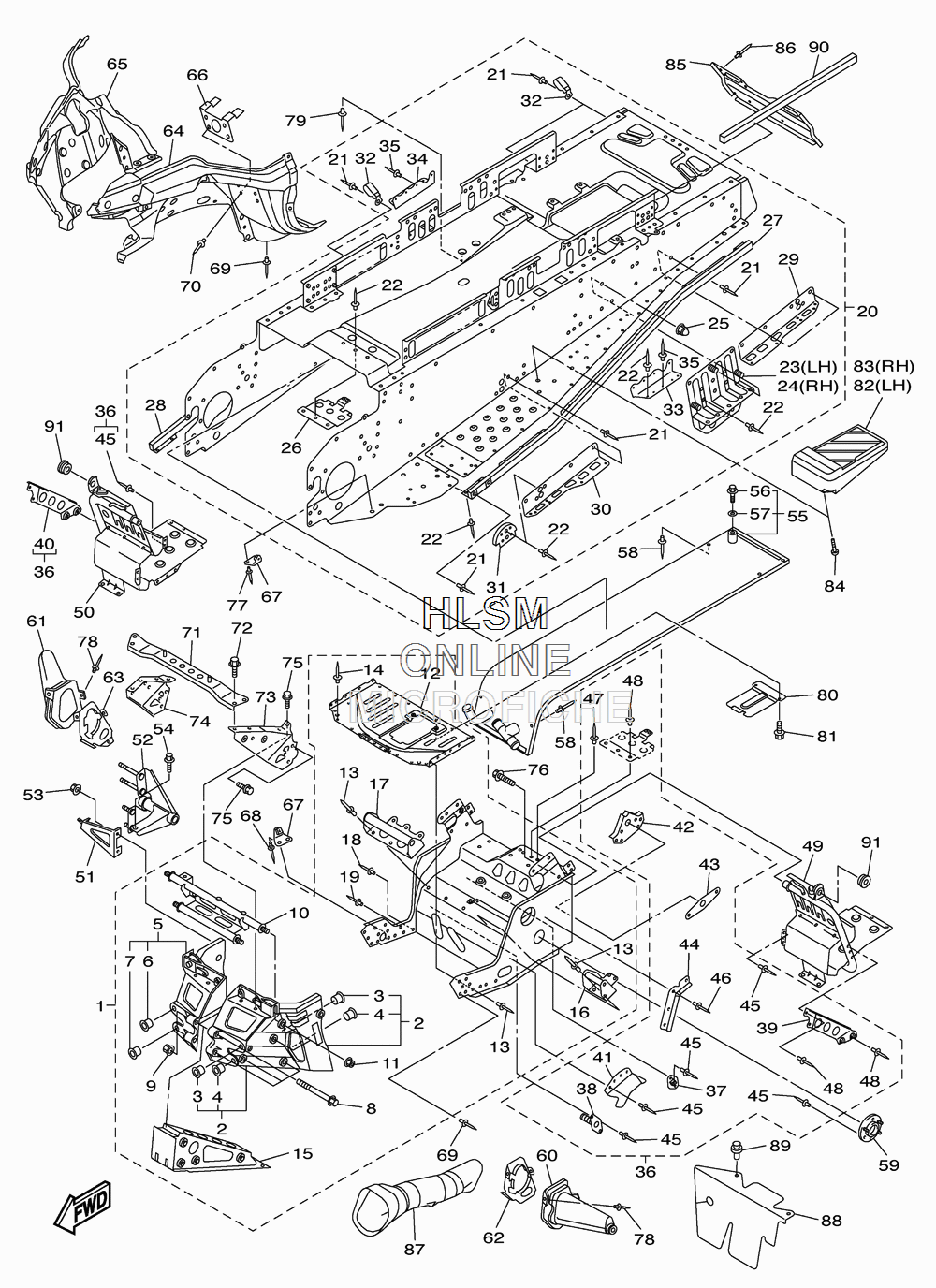

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha RS VIKING PRO - 2010 года выпуска
-
№АртикулНазвание
-
18GS-21940-11-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FN-W2197-01-00 BULKHEADBULKHEAD
-
390381-15001-00 BUSH, SOLIDBUSH, SOLID
-
490381-16004-00 BUSH, SOLIDBUSH, SOLID
-
58FN-W2198-01-00 BULKHEAD 2BULKHEAD 2
-
690381-15001-00 BUSH, SOLIDBUSH, SOLID
-
790381-16004-00 BUSH, SOLIDBUSH, SOLID
-
890105-08072-00 BOLT, FLANGEBOLT, FLANGE
-
995607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
108FN-21947-00-00 BRACKET, STEERING 1BRACKET, STEERING 1
-
1195607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
128GS-2193A-01-00 PROTECTORPROTECTOR
-
1390267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
1490267-48016-00 RIVET, BLIND (4.8X17 YELLOW)RIVET, BLIND (4.8X17 YELLOW)
-
158FN-2198E-00-00 REINFORCEMENT, FRAME 3REINFORCEMENT, FRAME 3
-
168FN-2194F-00-00 BRACKET, ENGINE 2BRACKET, ENGINE 2
-
178FN-2194G-00-00 BRACKET, ENGINE 3BRACKET, ENGINE 3
-
1890267-48176-00 RIVET, BLIND (4.8X17 YELLOW)RIVET, BLIND (4.8X17 YELLOW)
-
1990267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
208GS-21950-01-00 REAR FRAME COMP.REAR FRAME COMP.
-
2190267-48023-00 RIVET, BLIND (4.8X12.1 YELLOW)RIVET, BLIND (4.8X12.1 YELLOW)
-
2290267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
238FN-21944-01-00 BRACKET, RR.TRACK SUSPENTIONBRACKET, RR.TRACK SUSPENTION
-
248FN-21954-01-00 BRACKET, RR.TRACK SUSPENTIONBRACKET, RR.TRACK SUSPENTION
-
2590176-10075-00 NUT, CROWNNUT, CROWN
-
268FN-2194H-00-00 PROTECTOR, MUFFLERPROTECTOR, MUFFLER
-
278FN-21926-00-00 REINFORCEMENT, FOOTREST 1REINFORCEMENT, FOOTREST 1
-
288FN-21936-00-00 REINFORCEMENT, FOOTREST 2REINFORCEMENT, FOOTREST 2
-
298FN-21962-01-00 PATCH 2PATCH 2
-
308FN-21963-01-00 PATCH 3PATCH 3
-
318CW-21943-00-00 BRACKET, MAIN TRACK 1BRACKET, MAIN TRACK 1
-
3290465-08368-00 CLAMPCLAMP
-
338GS-21965-00-00 PATCH 5PATCH 5
-
348GS-21966-00-00 PATCH 6PATCH 6
-
3590267-48176-00 RIVET, BLIND (4.8X17 YELLOW)RIVET, BLIND (4.8X17 YELLOW)
-
368GS-W2195-00-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
378CR-21939-01-00 BRACKET, CHAIN HOUSINGBRACKET, CHAIN HOUSING
-
388FN-21939-00-00 BRACKET, CHAIN HOUSINGBRACKET, CHAIN HOUSING
-
398FG-2196M-00-00 BRACKET, 5BRACKET, 5
-
408FG-2197M-00-00 BRACKET, 6BRACKET, 6
-
418FU-2198G-00-00 COVER 2COVER 2
-
428GS-21943-00-00 BRACKET, MAIN TRACK 1BRACKET, MAIN TRACK 1
-
438FN-21953-00-00 BRACKET, MAIN TRACK 2BRACKET, MAIN TRACK 2
-
448FA-21999-00-00 CLAMP, WIRE HARNESSCLAMP, WIRE HARNESS
-
4590267-47195-00 RIVET, BLIND (4.7X16.4 YELLOWRIVET, BLIND (4.7X16.4 YELLOW
-
4690267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
4790267-48023-00 RIVET, BLIND (4.8X12.1 YELLOWRIVET, BLIND (4.8X12.1 YELLOW
-
4890267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
498FN-21960-01-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
508GS-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
518FN-2193E-00-00 BRACKET, OIL TANK 1BRACKET, OIL TANK 1
-
528FN-2194E-00-00 BRACKET, ENGINEBRACKET, ENGINE
-
5395602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5495822-10016-00 BOLT, FLANGEBOLT, FLANGE
-
558FN-12440-00-00 HEAT EXCHANGER ASSYHEAT EXCHANGER ASSY
-
5695812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
5790210-06006-00 WASHER, SEALWASHER, SEAL
-
5890267-48016-00 RIVET, BLIND (4.8X17 YELLOW)RIVET, BLIND (4.8X17 YELLOW)
-
598EK-21920-01-00 HOUSING, REINF SUB-ASSY(L.H)HOUSING, REINF SUB-ASSY(L.H)
-
608FU-2198F-01-00 COVER 1COVER 1
-
618FU-2198J-01-00 COVER 3COVER 3
-
628FU-2195E-01-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
638FU-2195F-01-00 PLATE, STRG BRACKET 2PLATE, STRG BRACKET 2
-
648ES-2196A-01-00 FRAME UNDER 1FRAME UNDER 1
-
658FA-2196E-01-00 FRAME, UNDER 2FRAME, UNDER 2
-
668FA-21972-01-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
678FA-2196F-00-00 BRACKET 3BRACKET 3
-
6890267-48083-00 RIVET,BLIND (4.8X15.2 SILVER)RIVET,BLIND (4.8X15.2 SILVER)
-
6990267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
7090267-47200-00 RIVET, BLIND (4.7X19.5 BLACK)RIVET, BLIND (4.7X19.5 BLACK)
-
718FN-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
7295822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
738FN-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
748FN-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
7595822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
7695822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
7790267-48095-00 RIVET,BLIND (4.8X12.6 SILVER)RIVET,BLIND (4.8X12.6 SILVER)
-
7890267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
7990267-48016-00 RIVET, BLIND (4.8X17 YELLOW)RIVET, BLIND (4.8X17 YELLOW)
-
808FR-2197E-00-00 PROTECTOR, FRAME FRPROTECTOR, FRAME FR
-
8192012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
828DM-27431-02-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
838DM-27441-02-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
8497702-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
858FN-21933-01-00 REINFORCEMENT, FRAME REAR 2REINFORCEMENT, FRAME REAR 2
-
8690267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
878FN-21557-00-00 DUCT, AIRDUCT, AIR
-
888FN-2198F-00-00 COVER 1COVER 1
-
8990269-09002-00 RIVETRIVET
-
908FN-241A5-00-00 SEAL, 5SEAL, 5
-
9190480-16278-00 GROMMETGROMMET
