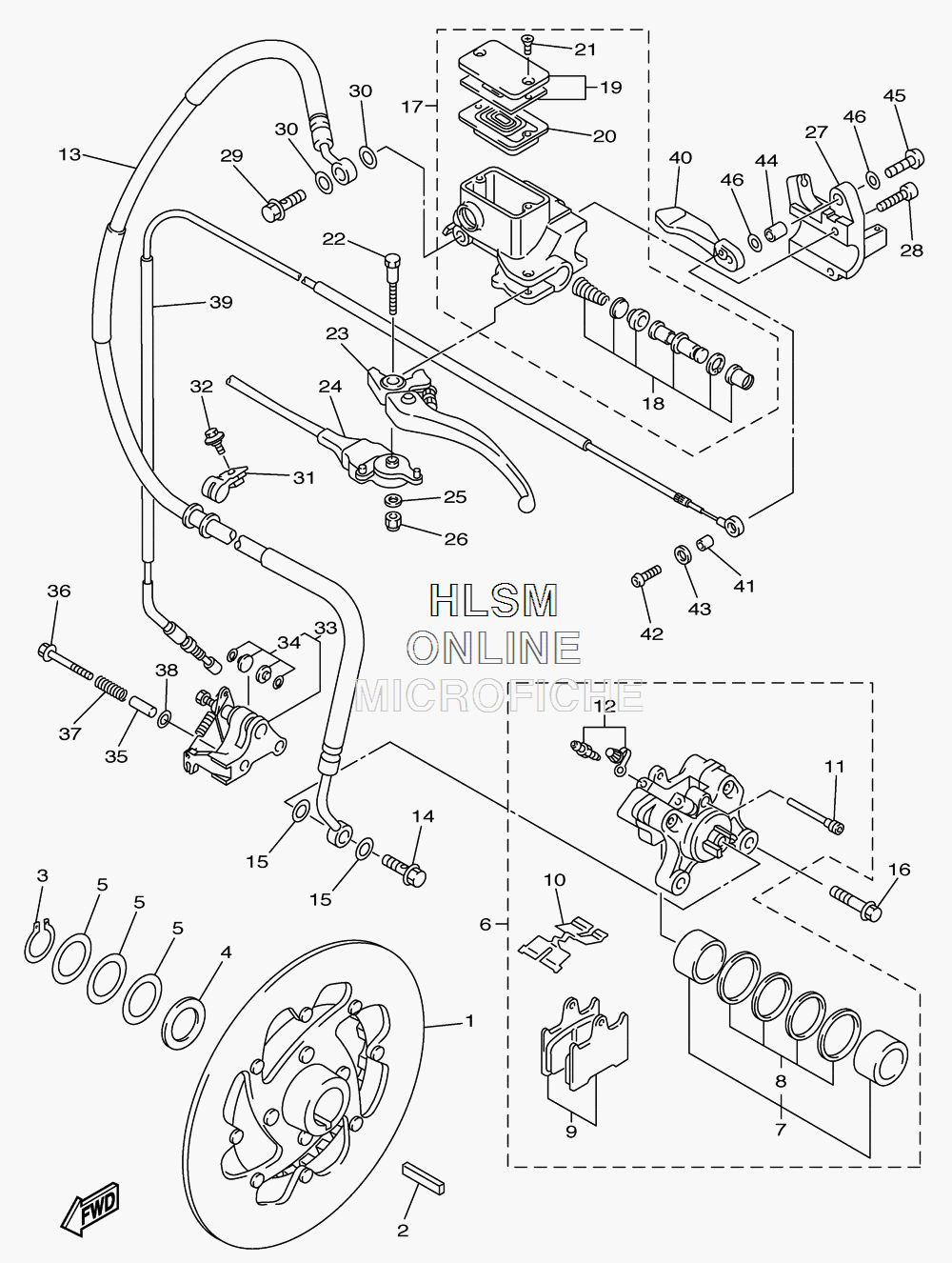

BRAKE ASSY для Yamaha RS VENTURE - 2011 года выпуска
-
№АртикулНазвание
-
18FA-2581T-00-00 DISC BRAKE ASSYDISC BRAKE ASSY
-
290281-07004-00 KEY, SLIDINGKEY, SLIDING
-
399009-24400-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
490201-25527-00 WASHER, PLATE (T1.0)WASHER, PLATE (T1.0)
-
590201-252F1-00 WASHER, PLATE (T0.5)WASHER, PLATE (T0.5)
-
68FA-2580T-01-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
78CR-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
88CR-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
98FA-W0046-01-00 BRAKE PAD KIT 2BRAKE PAD KIT 2
-
108DJ-25919-00-00 SUPPORT, PADSUPPORT, PAD
-
118CR-25924-00-00 PIN, PADPIN, PAD
-
128CR-W0048-00-00 BLEED SCREW KITBLEED SCREW KIT
-
138ES-25872-10-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1490401-10015-00 BOLT, UNIONBOLT, UNION
-
1590201-10118-00 WASHER, PLATEWASHER, PLATE
-
1690105-10634-00 BOLT, FLANGEBOLT, FLANGE
-
178EN-W2587-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
188CR-W0041-00-00 CYLINDER KIT, MASTERCYLINDER KIT, MASTER
-
198CR-W2585-00-00 RESERVOIR CAP SETRESERVOIR CAP SET
-
2055U-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
2198706-04012-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
228CR-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
238DN-83912-00-00 LEVER 1LEVER 1
-
238CR-83912-00-00 LEVER 1LEVER 1
-
248CR-82530-01-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
258CR-8398X-00-00 WASHER, PLATEWASHER, PLATE
-
2695707-05300-00 NUT, FLANGENUT, FLANGE
-
278FA-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
2891316-06022-00 BOLTBOLT
-
2990401-10015-00 BOLT, UNIONBOLT, UNION
-
3090201-10118-00 WASHER, PLATEWASHER, PLATE
-
318FA-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
3290109-06257-00 BOLTBOLT
-
338FA-25970-01-00 PARKING BRAKE COMP.PARKING BRAKE COMP.
-
348FA-W0045-00-00 PARKING BRAKE PAD KITPARKING BRAKE PAD KIT
-
3590387-06058-00 COLLARCOLLAR
-
3690111-06042-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3790501-120A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3890201-12161-00 WASHER, PLATEWASHER, PLATE
-
398FP-26351-10-00 CABLE, BRAKECABLE, BRAKE
-
408FA-83922-00-00 LEVER 2LEVER 2
-
4190387-06043-00 COLLARCOLLAR
-
4292017-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4390201-06050-00 WASHER, PLATEWASHER, PLATE
-
4490387-081M9-00 COLLARCOLLAR
-
4590111-08054-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4690201-08403-00 WASHER, PLATEWASHER, PLATE
