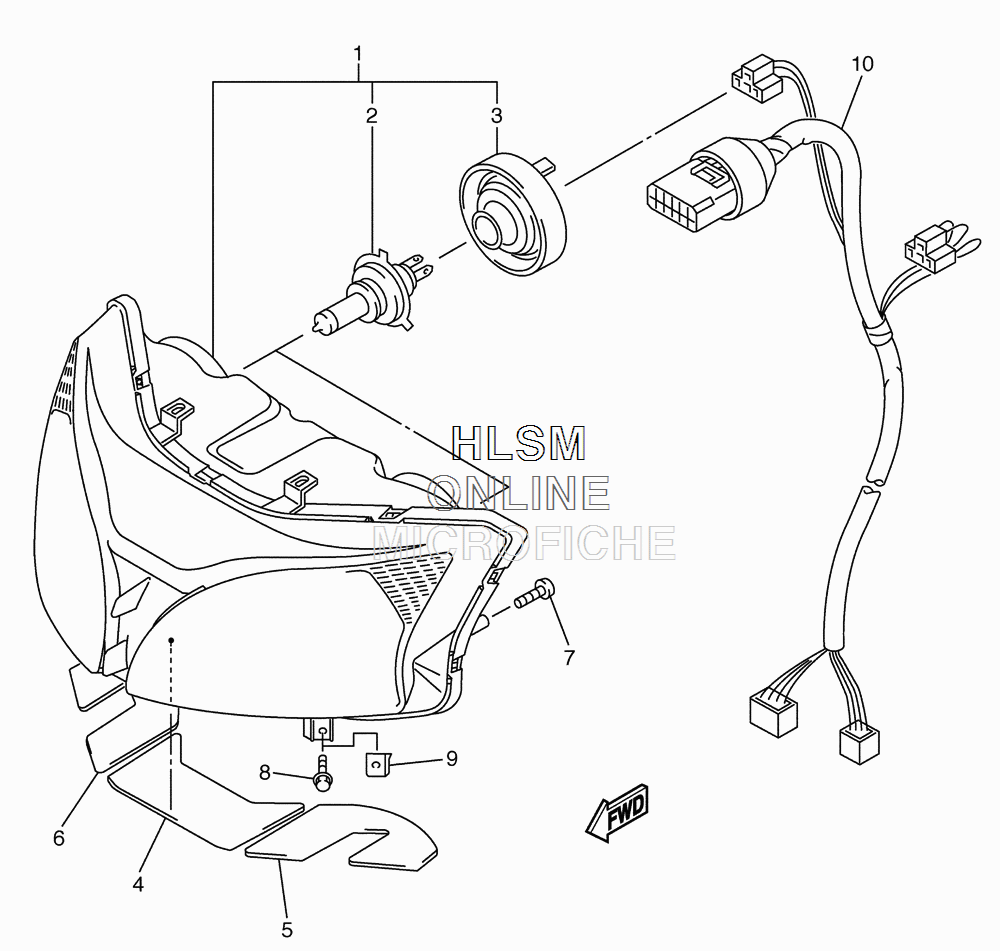

ELECTRICAL - HEADLIGHT ASSY для Yamaha RS VENTURE - 2011 года выпуска
-
№АртикулНазвание
-
18FA-84310-10-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
28G9-84314-00-00 BULB (12V-60/55W)BULB (12V-60/55W)
-
38EK-84397-00-00 COVER, SOCKETCOVER, SOCKET
-
48EK-8399N-00-00 INSULATOR 1INSULATOR 1
-
58EK-8368L-00-00 INSULATOR 2INSULATOR 2
-
68EK-8368M-00-00 INSULATOR 3INSULATOR 3
-
797702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
895802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
990183-06100-00 NUT, SPRINGNUT, SPRING
-
108ES-84359-10-00 CORD, HEADLIGHTCORD, HEADLIGHT
