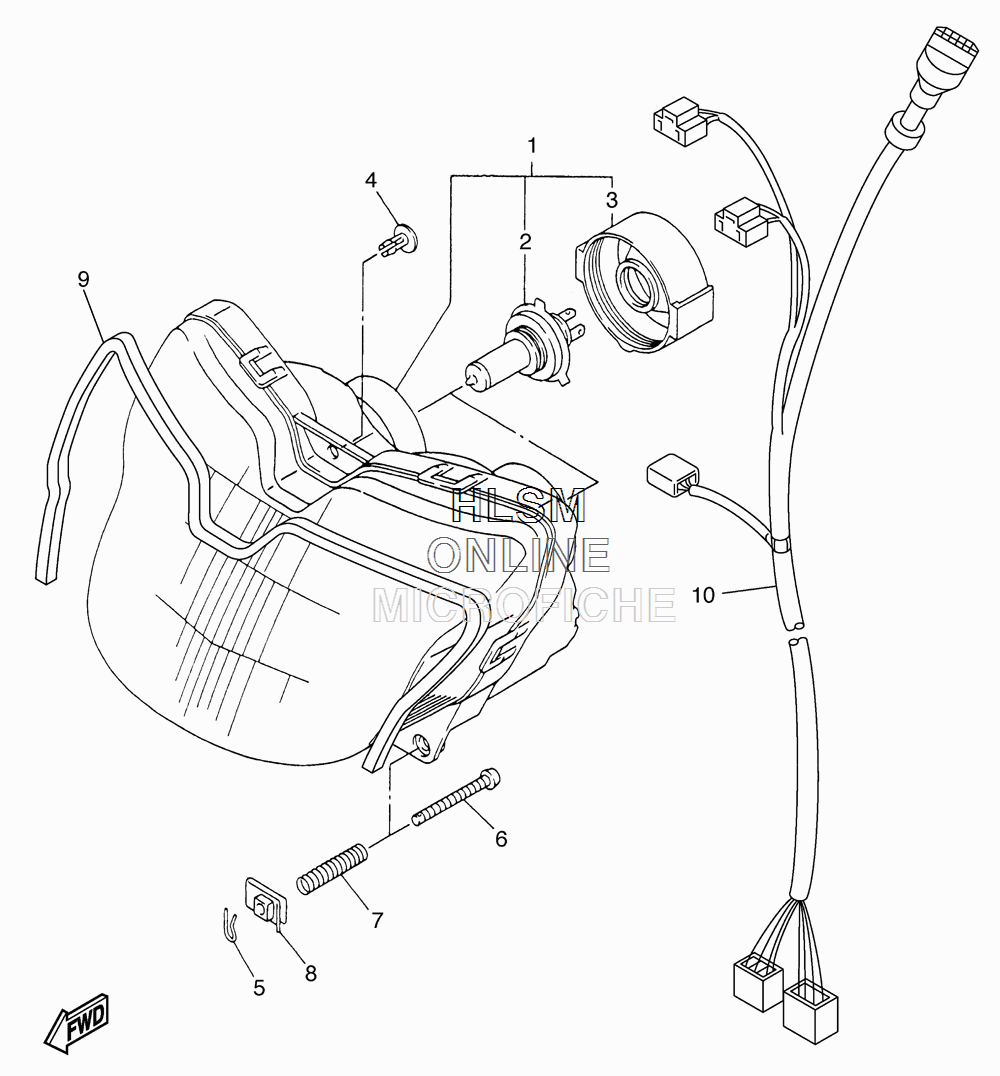

ELECTRICAL - HEADLIGHT ASSY для Yamaha VK PRO - 2011 года выпуска
-
№АртикулНазвание
-
18DN-84310-01-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
28G9-84314-00-00 BULB (12V-60/55W) (H4) (HALOGEN)BULB (12V-60/55W) (H4) (HALOGEN)
-
38DN-84397-01-00 COVER, SOCKETCOVER, SOCKET
-
490269-06046-00 RIVETRIVET
-
58K4-84374-00-00 CLIPCLIP
-
68A5-84331-00-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
78A5-84332-00-00 SPRING, SCREWSPRING, SCREW
-
890183-05024-00 NUT, SPRINGNUT, SPRING
-
98FN-8399N-00-00 INSULATOR 1INSULATOR 1
-
108FN-84359-00-00 CORD, HEADLIGHTCORD, HEADLIGHT
