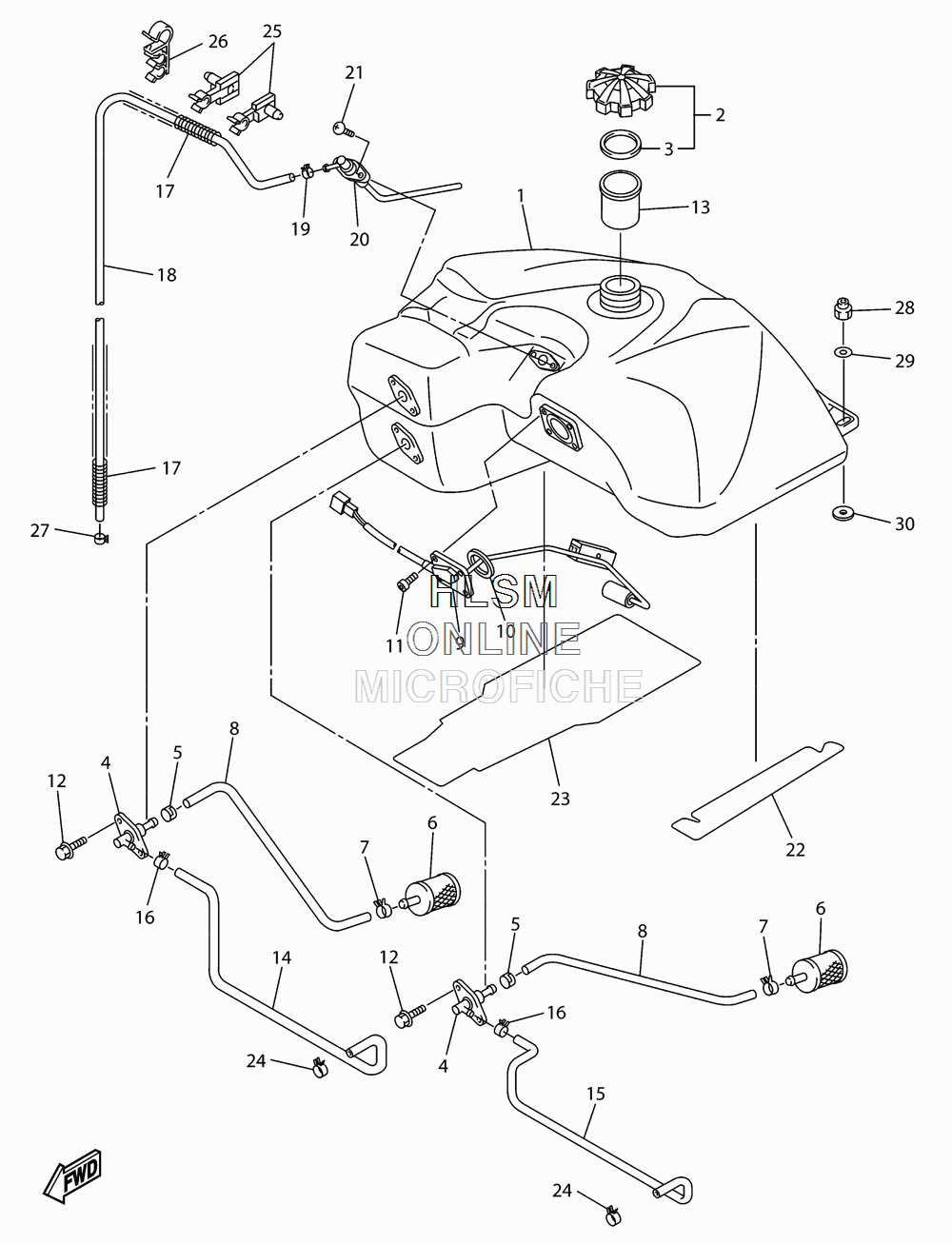

FUEL TANK ASSY для Yamaha VK PRO - 2011 года выпуска
-
№АртикулНазвание
-
18FN-24111-10-00 TANK, FUELTANK, FUEL
-
28FG-24610-00-00 CAP ASSYCAP ASSY
-
38FG-24641-00-00 GASKET, CAP 1GASKET, CAP 1
-
48CR-24301-00-00 SUCTION PIPE COMP. 1SUCTION PIPE COMP. 1
-
590468-04092-00 CLIPCLIP
-
68H5-24560-00-00 FILTER ASSYFILTER ASSY
-
790467-11032-00 CLIPCLIP
-
88FA-24335-00-00 PIPE, SUCTION 1PIPE, SUCTION 1
-
98GS-85752-00-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
1093210-41041-00 O-RINGO-RING
-
1198902-05008-00 SCREW, BINDSCREW, BIND
-
1290105-060A6-00 BOLT, FLANGEBOLT, FLANGE
-
138FN-24114-00-00 TUBE, FILLERTUBE, FILLER
-
148GS-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
158GS-24311-10-00 PIPE, FUEL 1PIPE, FUEL 1
-
1690467-11032-00 CLIPCLIP
-
1790501-08668-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1891A20-05130-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
1990467-09026-00 CLIPCLIP
-
208FN-2418A-00-00 BREATHER COMP.BREATHER COMP.
-
2190149-06330-00 SCREWSCREW
-
228GS-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
238GS-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
2490467-11032-00 CLIPCLIP
-
2590464-09015-00 CLAMPCLAMP
-
2690464-16010-00 CLAMPCLAMP
-
2790467-09026-00 CLIPCLIP
-
2895702-08300-00 NUT, NYLONNUT, NYLON
-
2990201-08053-00 WASHER, PLATEWASHER, PLATE
-
3090201-08075-00 WASHER, PLATEWASHER, PLATE
