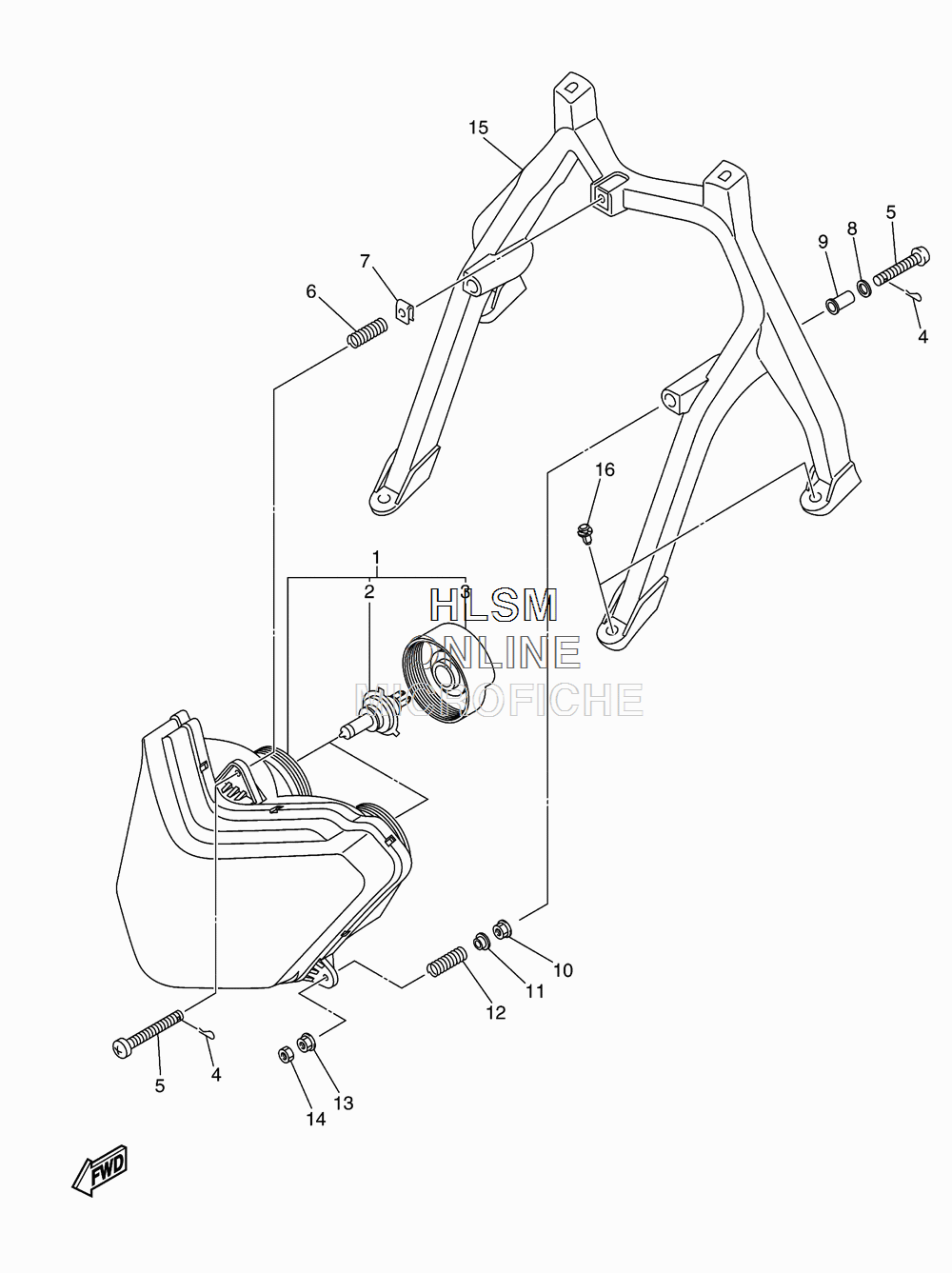

ELECTRICAL - HEADLIGHT ASSY для Yamaha FX NYTRO MTX SE 153 - 2012 года выпуска
-
№АртикулНазвание
-
18GK-84310-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
28G9-84314-00-00 ...BULB (12V-60/55W) (H4) (HALOGEN)...BULB (12V-60/55W) (H4) (HALOGEN)
-
38GK-84397-01-00 ...COVER, SOCKET...COVER, SOCKET
-
48K4-84374-00-00 CLIPCLIP
-
58A5-84331-00-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
68A5-84332-00-00 SPRING, SCREWSPRING, SCREW
-
790183-050A9-00 NUT, SPRINGNUT, SPRING
-
890201-050T4-00 WASHER, PLATEWASHER, PLATE
-
990387-05M04-00 COLLARCOLLAR
-
1095702-05500-00 NUT, FLANGENUT, FLANGE
-
1190387-05035-00 COLLARCOLLAR
-
1290501-12369-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1395702-05500-00 NUT, FLANGENUT, FLANGE
-
1495602-05100-00 NUT, UNUT, U
-
158GL-84118-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
1690269-08005-00 RIVETRIVET
