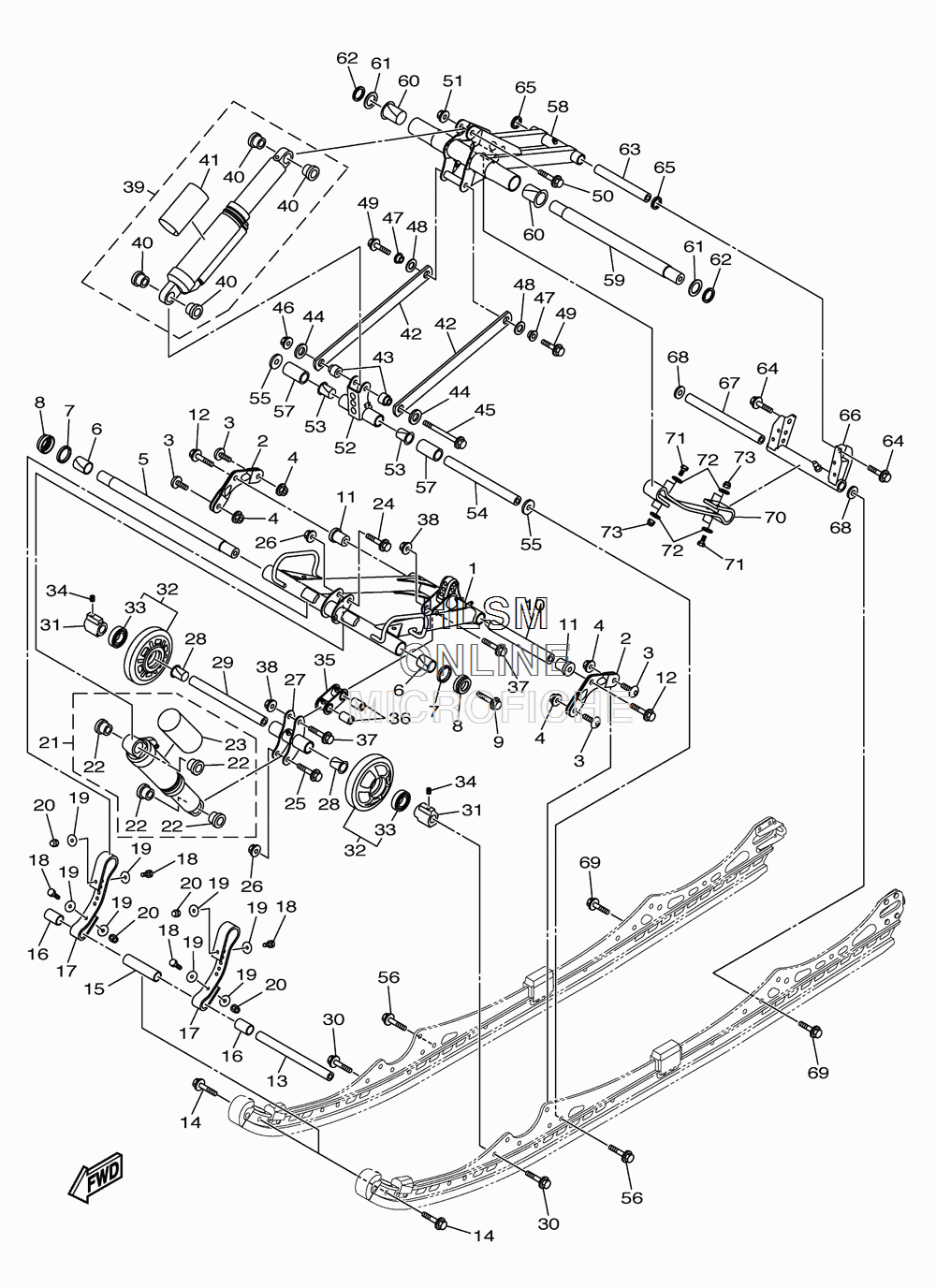

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha FX NYTRO MTX SE 153 - 2012 года выпуска
-
№АртикулНазвание
-
18HR-47331-00-00 ARM, PIVOT 1ARM, PIVOT 1
-
28HR-47415-00-00 BRACKET 1BRACKET 1
-
390111-10036-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
495602-10200-00 NUT, U FLANGENUT, U FLANGE
-
58HL-47465-00-00 SHAFT 1SHAFT 1
-
690383-23002-00 BUSH, FORMEDBUSH, FORMED
-
793108-37011-00 OIL SEALOIL SEAL
-
88HF-47341-00-00 SPACERSPACER
-
990109-10030-00 BOLTBOLT
-
108ES-47486-00-00 SHAFT 4SHAFT 4
-
1190387-10022-00 COLLARCOLLAR
-
1290105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
138ES-47485-00-00 SHAFT 3SHAFT 3
-
1490105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
1590387-19002-00 COLLARCOLLAR
-
1690387-19001-00 COLLARCOLLAR
-
178HR-47495-00-00 STOPPER 1STOPPER 1
-
1897002-06025-00 BOLTBOLT
-
1990201-06081-00 WASHER, PLATEWASHER, PLATE
-
2095702-06300-00 NUT, NYLONNUT, NYLON
-
218HR-47481-00-00 SHOCK ABSORBER 2SHOCK ABSORBER 2
-
228HR-47371-09-00 ...BUSH...BUSH
-
238HR-22259-10-00 ...LABEL, WARNING...LABEL, WARNING
-
2490105-10295-00 BOLT, FLANGEBOLT, FLANGE
-
2590105-10295-00 BOLT, FLANGEBOLT, FLANGE
-
2695602-10200-00 NUT, U FLANGENUT, U FLANGE
-
278HR-47349-10-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
2890386-20001-00 BUSHBUSH
-
298GN-47487-00-00 SHAFT 5SHAFT 5
-
3090105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
318ES-47319-01-00 COLLARCOLLAR
-
328HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
3393306-00507-00 ...BEARING...BEARING
-
3490113-06039-00 BOLT, SETBOLT, SET
-
358FK-47416-01-00 BRACKET 2BRACKET 2
-
3690387-10024-00 COLLARCOLLAR
-
3795812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
3895602-10200-00 NUT, U FLANGENUT, U FLANGE
-
398HR-47480-01-00 SHOCK ABSORBERSHOCK ABSORBER
-
408HR-47371-09-00 ...BUSH...BUSH
-
418HR-22259-40-00 ...LABEL, WARNING...LABEL, WARNING
-
428HR-47490-00-00 RELAY ROD ASSYRELAY ROD ASSY
-
438HR-47366-00-00 COLLAR 2COLLAR 2
-
4490201-16027-00 WASHER, PLATEWASHER, PLATE
-
4590105-10338-00 BOLT, FLANGEBOLT, FLANGE
-
4695602-10200-00 NUT, U FLANGENUT, U FLANGE
-
478HR-47366-10-00 COLLAR 2COLLAR 2
-
4890201-16027-00 WASHER, PLATEWASHER, PLATE
-
4990105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
5090105-10283-00 BOLT, FLANGEBOLT, FLANGE
-
5195602-10200-00 NUT, U FLANGENUT, U FLANGE
-
528HR-47349-00-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
5390386-20001-00 BUSHBUSH
-
548HP-47487-00-00 SHAFT 5SHAFT 5
-
5590201-10043-00 WASHER, PLATEWASHER, PLATE
-
5690105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
5790387-20032-00 COLLARCOLLAR
-
588HR-47332-00-00 ARM, PIVOT 2ARM, PIVOT 2
-
598FU-47475-00-00 SHAFT 2SHAFT 2
-
6090381-28108-00 BUSH, SOLIDBUSH, SOLID
-
6190201-251G8-00 WASHER, PLATEWASHER, PLATE
-
6290201-250T6-00 WASHER, PLATEWASHER, PLATE
-
638GC-47488-00-00 SHAFT 6SHAFT 6
-
6490105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
6590201-19008-00 WASHER, PLATEWASHER, PLATE
-
668GC-47417-10-00 BRACKET 3BRACKET 3
-
678FU-47485-00-00 SHAFT 3SHAFT 3
-
6890201-10136-00 WASHER, PLATEWASHER, PLATE
-
6990105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
708HR-47496-00-00 STOPPER 2STOPPER 2
-
7197002-06025-00 BOLTBOLT
-
7290201-06036-00 WASHER, PLATEWASHER, PLATE
-
7395702-06300-00 NUT, NYLONNUT, NYLON
