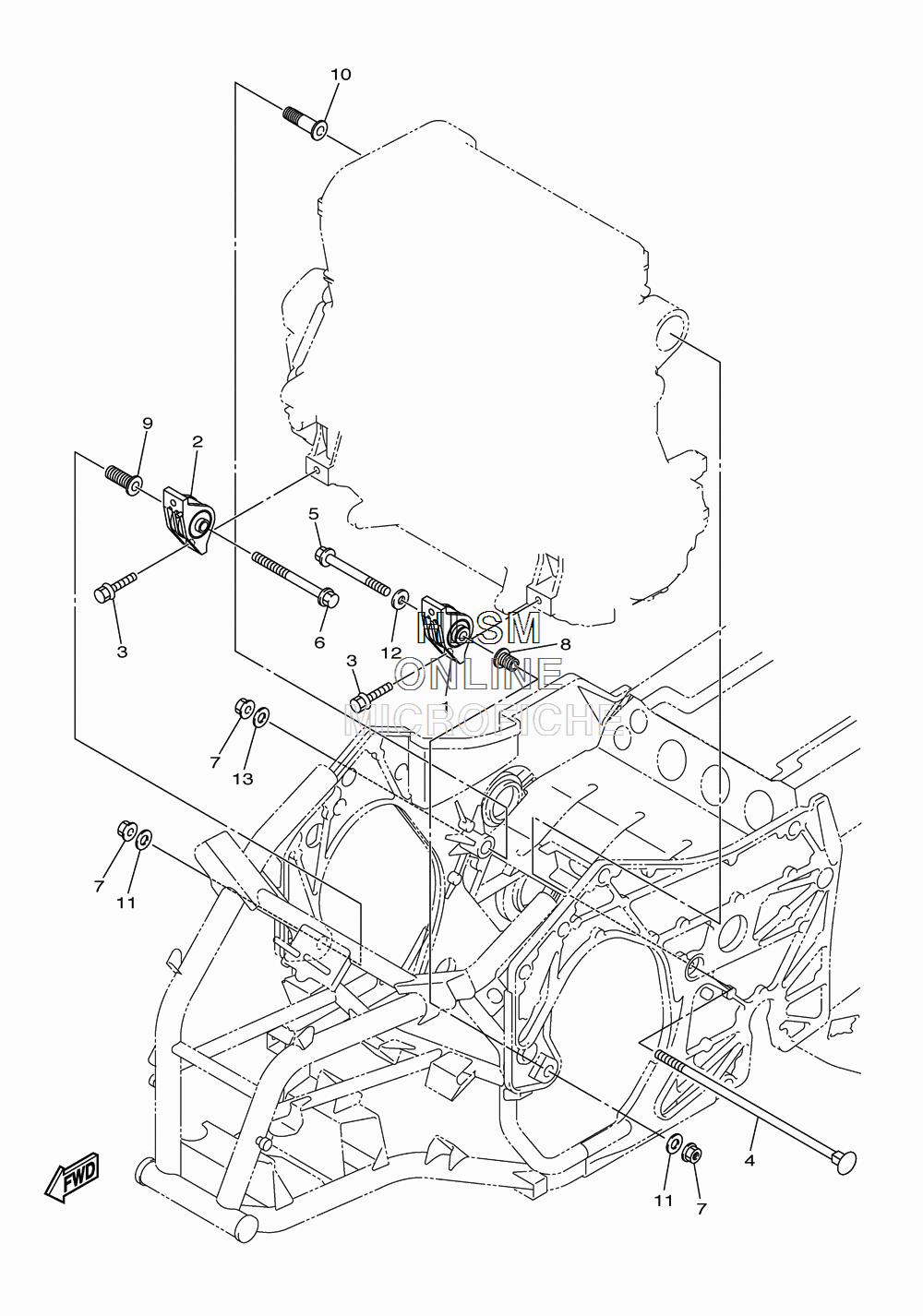

ENGINE MOUNTING для Yamaha FX NYTRO MTX SE 162 - 2012 года выпуска
-
№АртикулНазвание
-
18GL-21410-00-00 ENGINE BRACKET COMP.ENGINE BRACKET COMP.
-
28ES-21420-00-00 ENGINE BRACKET COMP. 2ENGINE BRACKET COMP. 2
-
395812-08030-00 BOLT, FLANGEBOLT, FLANGE
-
48FA-21481-01-00 BOLT, ENGINE MOUNTING 1BOLT, ENGINE MOUNTING 1
-
595817-12100-00 BOLT, FLANGEBOLT, FLANGE
-
695812-12140-00 BOLT, FLANGEBOLT, FLANGE
-
790179-12004-00 NUTNUT
-
88FG-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
98GL-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
108ES-2149C-00-00 BOLTBOLT
-
1190201-120T5-00 WASHER, PLATEWASHER, PLATE
-
1290201-12317-00 WASHER, PLATEWASHER, PLATE
-
1390201-126A7-00 WASHER, PLATEWASHER, PLATE
