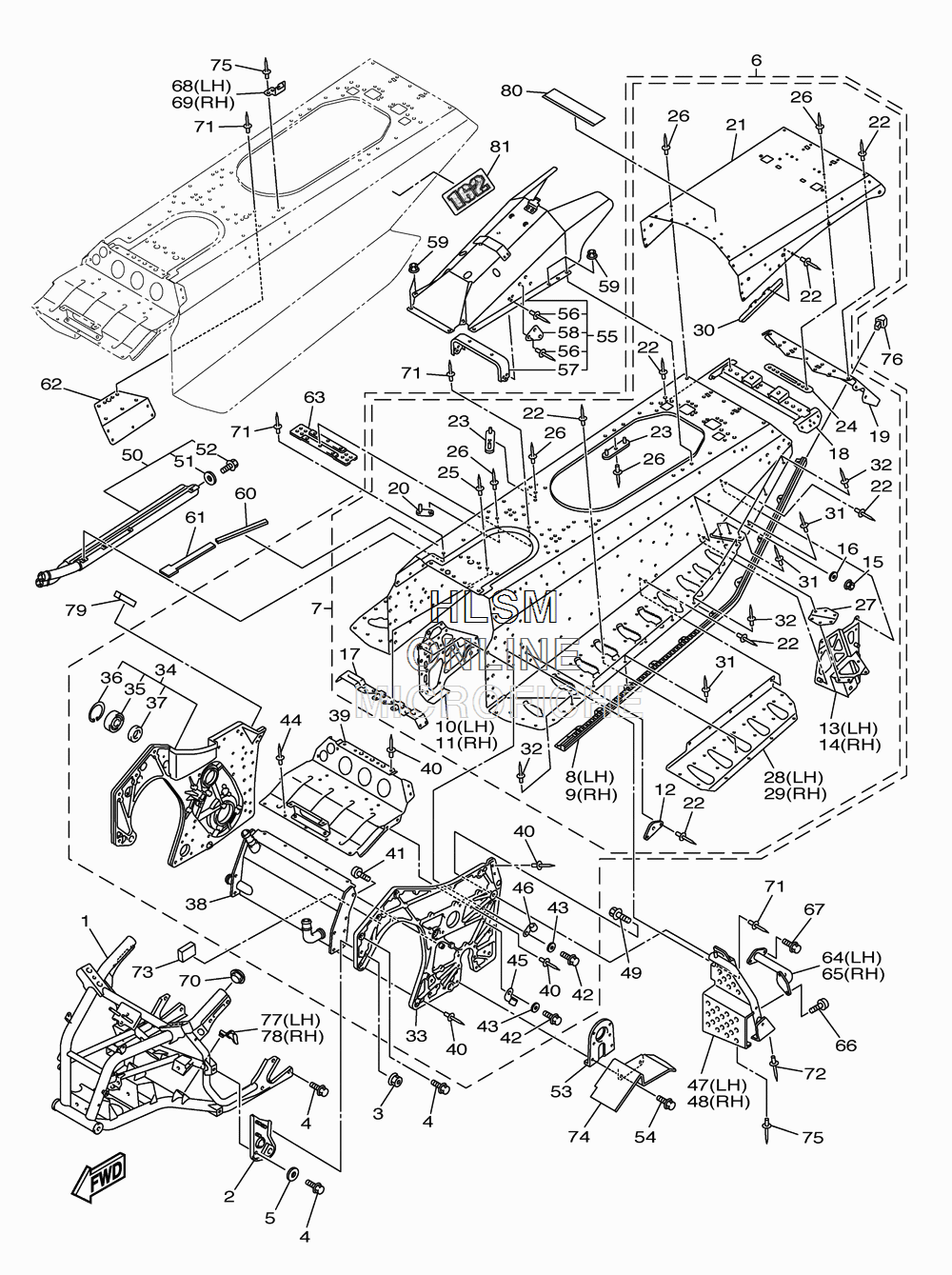

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha FX NYTRO MTX SE 162 - 2012 года выпуска

№

Артикул

Название
1

8GL-21940-02-00 FRONT FRAME COMP.

FRONT FRAME COMP.

123 000 ₽
2

8GL-2194E-00-00 BRACKET, ENGINE

BRACKET, ENGINE

6 450 ₽
3

90185-08054-00 NUT, SELF-LOCKING

NUT, SELF-LOCKING

440 ₽
4

95827-08016-00 BOLT, FLANGE

BOLT, FLANGE

340 ₽
5

90201-086A3-00 WASHER, PLATE

WASHER, PLATE

380 ₽
6

8HR-21950-00-00 REAR FRAME COMP.

REAR FRAME COMP.

0 ₽
7

8HR-21950-09-00 ...REAR FRAME COMP.

...REAR FRAME COMP.

0 ₽
8

8HK-21926-00-00 ......REINFORCEMENT, FOOTREST 1 (LEFT HAND)

......REINFORCEMENT, FOOTREST 1 (LEFT HAND)

25 190 ₽
9

8HK-21936-00-00 ......REINFORCEMENT, FOOTREST 2 (RIGHT HAND)

......REINFORCEMENT, FOOTREST 2 (RIGHT HAND)

25 190 ₽
10

8HR-21943-00-00 ......BRACKET, MAIN TRACK 1 (LEFT HAND)

......BRACKET, MAIN TRACK 1 (LEFT HAND)

16 530 ₽
11

8HR-21953-00-00 ......BRACKET, MAIN TRACK 2 (RIGHT HAND)

......BRACKET, MAIN TRACK 2 (RIGHT HAND)

16 530 ₽
12

8FU-21919-00-00 ......BRACKET, MAIN TRACK 3

......BRACKET, MAIN TRACK 3

720 ₽
13

8HR-21944-00-00 ......BRACKET, REAR TRACK SUSP (LEFT HAND)

......BRACKET, REAR TRACK SUSP (LEFT HAND)

35 430 ₽
14

8HR-21954-00-00 ......BRACKET, REAR TRACK SUSP (RIGHT HAND)

......BRACKET, REAR TRACK SUSP (RIGHT HAND)

35 430 ₽
15

90176-10075-00 ......NUT, CROWN

......NUT, CROWN

650 ₽
16

90201-10035-00 ......WASHER, PLATE

......WASHER, PLATE

340 ₽
17

8GL-2194H-00-00 ......PROTECTOR, MUFFLER

......PROTECTOR, MUFFLER

7 550 ₽
18

8GL-2197N-00-00 ......BRACKET 7

......BRACKET 7

11 810 ₽
19

8HL-21923-00-00 ......REINEFORCEMENT, FRAME REAR

......REINEFORCEMENT, FRAME REAR

7 550 ₽
20

8CR-2194N-00-00 ......BRACKET, FUEL TANK 1

......BRACKET, FUEL TANK 1

500 ₽
21

8HR-21917-00-00 ......PANEL, SUB FRAME 6

......PANEL, SUB FRAME 6

52 280 ₽
22

90267-47195-00 ......RIVET, BLIND (4.7X16.4 YELLOW)

......RIVET, BLIND (4.7X16.4 YELLOW)

190 ₽
23

8GL-22512-00-00 ......BRACKET 8

......BRACKET 8

920 ₽
24

8GL-21295-00-00 ......NUT

......NUT

1 200 ₽
25

90267-48010-00 ......RIVET, BLIND (4.8X12 YELLOW)

......RIVET, BLIND (4.8X12 YELLOW)

190 ₽
26

90267-48023-00 ......RIVET, BLIND (4.8X12.1 YELLOW)

......RIVET, BLIND (4.8X12.1 YELLOW)

260 ₽
27

8HK-21961-00-00 ......PATCH 1

......PATCH 1

820 ₽
28

8HR-21963-00-00 ......PATCH 3 (LEFT HAND)

......PATCH 3 (LEFT HAND)

10 700 ₽
29

8HR-21964-00-00 ......PATCH 4 (RIGHT HAND)

......PATCH 4 (RIGHT HAND)

10 700 ₽
30

8HR-2193A-00-00 ......PROTECTOR

......PROTECTOR

920 ₽
31

90267-48176-00 ......RIVET, BLIND (4.8X17 YELLOW)

......RIVET, BLIND (4.8X17 YELLOW)

280 ₽
32

90267-48177-00 ......RIVET, BLIND (4.8X14 YELLOW)

......RIVET, BLIND (4.8X14 YELLOW)

320 ₽
33

8GL-21925-00-00 ...REINF, HOUSING 1

...REINF, HOUSING 1

61 580 ₽
34

8GL-21930-00-00 ...HOUSING, REINF SUB-ASSY (RIGHT HAND)

...HOUSING, REINF SUB-ASSY (RIGHT HAND)

101 580 ₽
35

93306-20601-00 ......BEARING

......BEARING

5 030 ₽
36

99009-62500-00 ......CIRCLIP

......CIRCLIP

810 ₽
37

93102-30012-00 ......OIL SEAL

......OIL SEAL

1 170 ₽
38

8HA-12440-00-00 ...HEAT EXCHANGER ASSY

...HEAT EXCHANGER ASSY

58 740 ₽
39

8GL-21915-00-00 ...PANEL, SUB FRAME 4

...PANEL, SUB FRAME 4

13 070 ₽
40

90267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)

...RIVET, BLIND (4.7X16.4 YELLOW)

190 ₽
41

92012-08016-00 ...BOLT, BUTTON HEAD

...BOLT, BUTTON HEAD

320 ₽
42

97012-08016-00 ...BOLT

...BOLT

190 ₽
43

90201-08512-00 ...WASHER, PLATE

...WASHER, PLATE

340 ₽
44

90267-48010-00 ...RIVET, BLIND (4.8X12 YELLOW)

...RIVET, BLIND (4.8X12 YELLOW)

190 ₽
45

90462-08061-00 ...CLAMP

...CLAMP

1 130 ₽
46

90462-08064-00 ...CLAMP

...CLAMP

1 130 ₽
47

8GL-21960-00-00 FOOTREST COMP. 1 (LEFT HAND)

FOOTREST COMP. 1 (LEFT HAND)

23 300 ₽
48

8GL-21970-01-00 FOOTREST COMP. 2 (RIGHT HAND)

FOOTREST COMP. 2 (RIGHT HAND)

22 360 ₽
49

95827-10030-00 BOLT, FLANGE

BOLT, FLANGE

180 ₽
50

8HA-1241A-00-00 HEAT EXCHANGER ASSY 4

HEAT EXCHANGER ASSY 4

46 610 ₽
51

90210-06006-00 ...WASHER, SEAL

...WASHER, SEAL

290 ₽
52

97022-06010-00 ...BOLT

...BOLT

160 ₽
53

8GL-21920-00-00 HOUSING, REINF SUB-ASSY (LEFT HAND)

HOUSING, REINF SUB-ASSY (LEFT HAND)

2 200 ₽
54

95812-08020-00 BOLT, FLANGE

BOLT, FLANGE

160 ₽
55

8GL-21916-00-00 PANEL, SUB FRAME 5

PANEL, SUB FRAME 5

35 430 ₽
56

90267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)

...RIVET, BLIND (4.7X16.4 YELLOW)

190 ₽
57

8GL-2194L-00-00 ...STAY, MUFFER

...STAY, MUFFER

4 400 ₽
58

8GL-21946-00-00 ...BRACKET, SEAT FITTING

...BRACKET, SEAT FITTING

1 070 ₽
59

90176-06016-00 NUT, CAP

NUT, CAP

480 ₽
60

8GL-22151-00-00 SEAL, GUARD

SEAL, GUARD

290 ₽
61

8GL-22152-00-00 SEAL, GUARD

SEAL, GUARD

470 ₽
62

8GL-21967-00-00 PATCH 7

PATCH 7

2 200 ₽
63

8GL-21988-00-00 PATCH 8

PATCH 8

1 730 ₽
64

8GL-27471-00-00 BAR, FOOTREST 1 (LEFT HAND)

BAR, FOOTREST 1 (LEFT HAND)

5 660 ₽
65

8GL-27472-00-00 BAR, FOOTREST 2 (RIGHT HAND)

BAR, FOOTREST 2 (RIGHT HAND)

5 660 ₽
66

92012-06014-00 BOLT, BUTTON HEAD

BOLT, BUTTON HEAD

190 ₽
67

95812-06012-00 BOLT, FLANGE

BOLT, FLANGE

130 ₽
68

8GL-21151-00-00 BRACKET, REAR FENDER 1 (LEFT HAND)

BRACKET, REAR FENDER 1 (LEFT HAND)

1 130 ₽
69

8GL-21152-00-00 BRACKET, REAR FENDER 2 (RIGHT HAND)

BRACKET, REAR FENDER 2 (RIGHT HAND)

810 ₽
70

180-22117-00-00 CAP

CAP

320 ₽
71

90267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)

RIVET, BLIND (4.7X16.4 YELLOW)

190 ₽
72

90267-48016-00 RIVET, BLIND (4.8X16.4 YELLOW)

RIVET, BLIND (4.8X16.4 YELLOW)

280 ₽
73

8GL-21852-00-00 DAMPER

DAMPER

320 ₽
74

8GL-2197B-00-00 PROTECTOR, FRAME

PROTECTOR, FRAME

4 250 ₽
75

90267-48023-00 RIVET, BLIND (4.8X12.1 YELLOW)

RIVET, BLIND (4.8X12.1 YELLOW)

260 ₽
76

8FS-2312G-00-00 PLUG

PLUG

1 880 ₽
77

8HR-21279-00-00 PLUG, BLIND (LEFT HAND)

PLUG, BLIND (LEFT HAND)

1 880 ₽
78

8HR-21289-00-00 PLUG, BLIND (RIGHT HAND)

PLUG, BLIND (RIGHT HAND)

1 880 ₽
79

90520-05012-00 DAMPER, PLATE

DAMPER, PLATE

160 ₽
80

8HA-77762-E0-00 LABEL, WARNING 2

LABEL, WARNING 2

0 ₽
81

8HR-2199A-01-00 GRAPHIC 1

GRAPHIC 1

2 200 ₽
