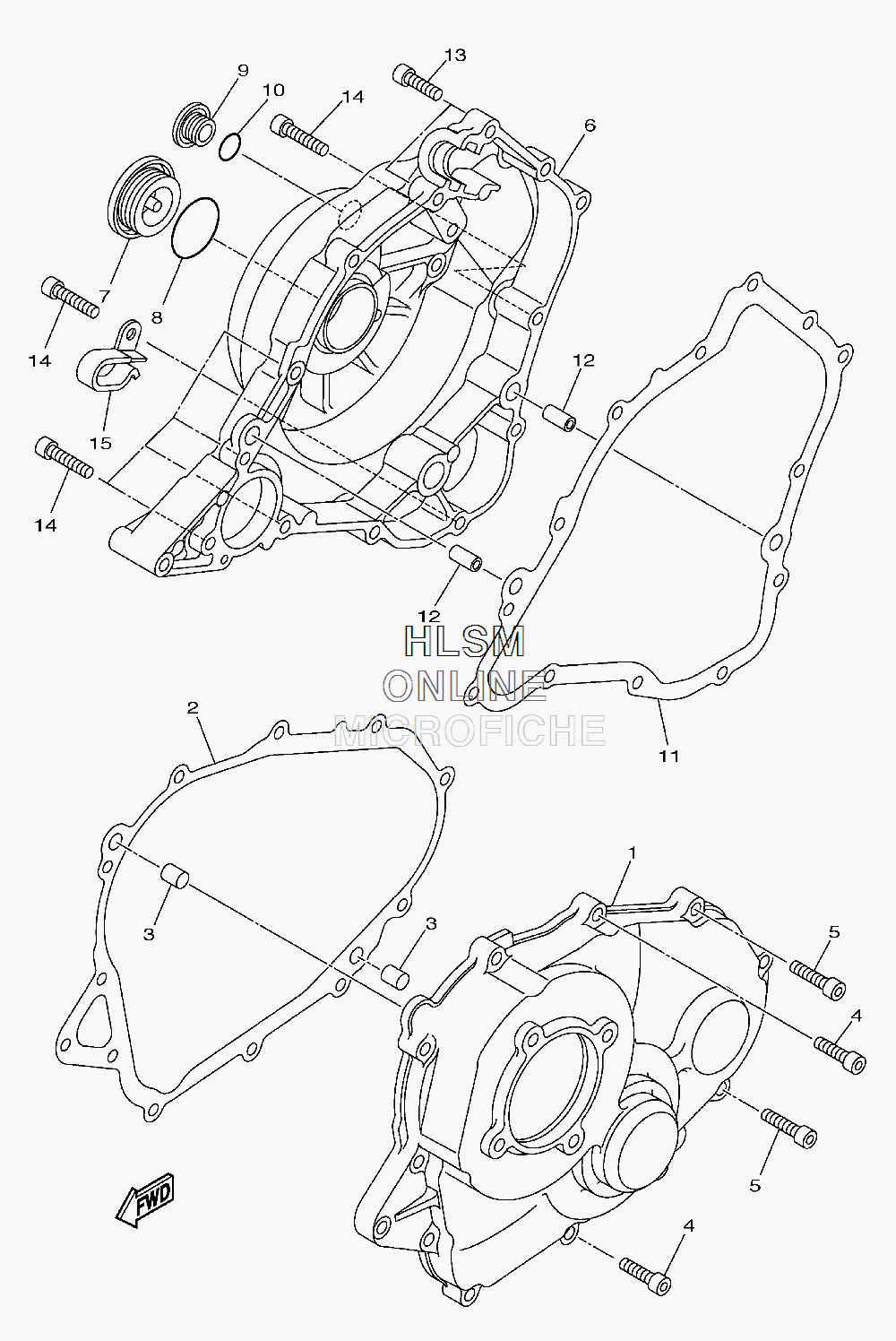

CRANKCASE COVER ASSY для Yamaha VENTURE LITE - 2012 года выпуска
-
№АртикулНазвание
-
18GC-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
28GC-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
390250-08017-00 PIN, STRAIGHTPIN, STRAIGHT
-
491312-06025-00 BOLTBOLT
-
590110-06231-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
68GC-15421-01-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
790340-32080-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
893210-32172-00 O-RINGO-RING
-
990340-14117-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1093210-14369-00 O-RINGO-RING
-
118GC-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
1299530-08012-00 PIN, DOWELPIN, DOWEL
-
1391312-06025-00 BOLTBOLT
-
1490110-06231-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1590465-10048-00 CLAMPCLAMP
-
18GC-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
28GC-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
390250-08017-00 PIN, STRAIGHTPIN, STRAIGHT
-
491312-06025-00 BOLTBOLT
-
590110-06231-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
68GC-15421-01-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
790340-32080-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
893210-32172-00 O-RINGO-RING
-
990340-14117-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1093210-14369-00 O-RINGO-RING
-
118GC-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
1299530-08012-00 PIN, DOWELPIN, DOWEL
-
1391312-06025-00 BOLTBOLT
-
1490110-06231-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1590465-10048-00 CLAMPCLAMP
