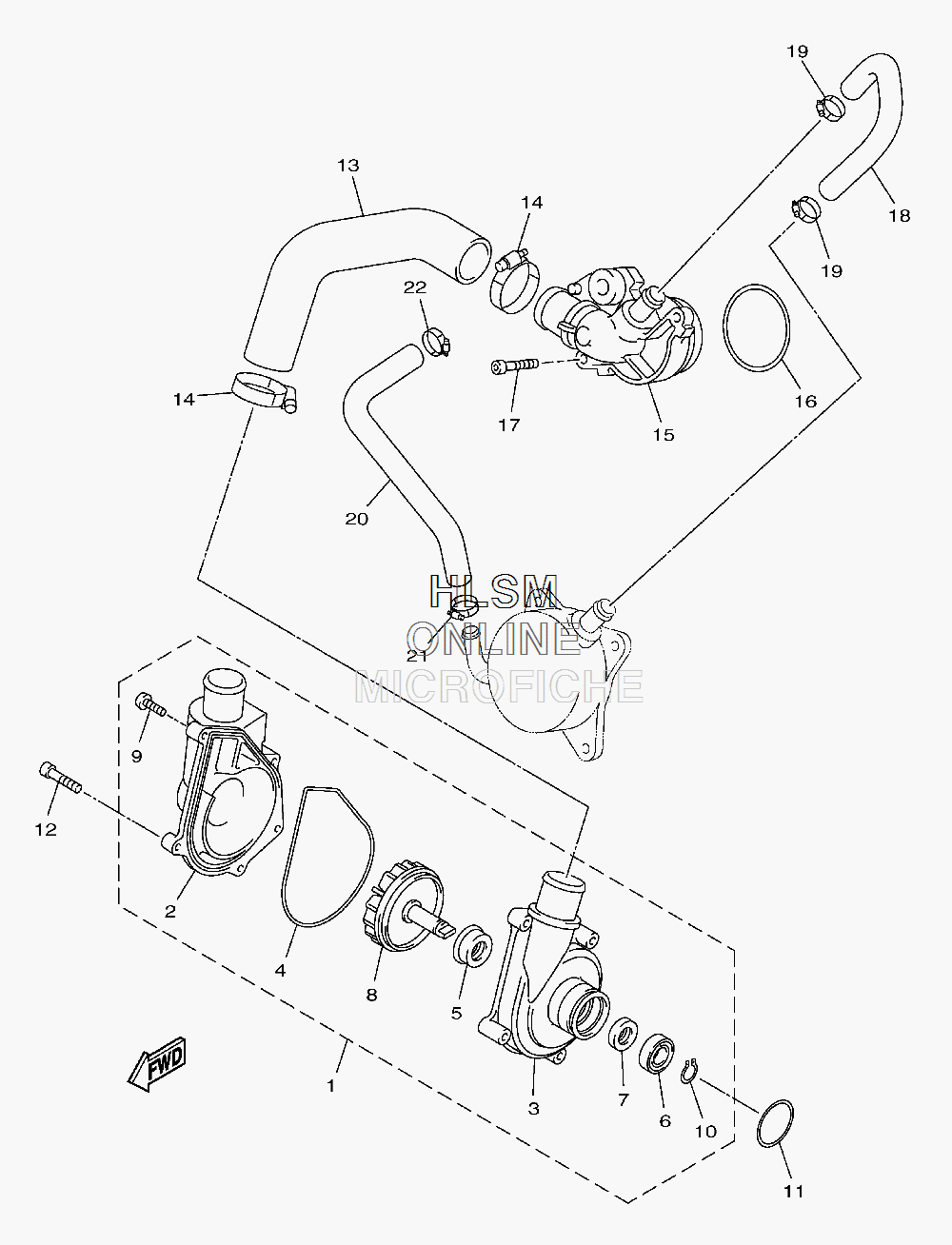

WATER PUMP ASSY для Yamaha VENTURE LITE - 2012 года выпуска
-
№АртикулНазвание
-
18GC-12420-00-00 WATER PUMP ASSYWATER PUMP ASSY
-
28GC-12422-00-00 ...COVER, HOUSING...COVER, HOUSING
-
38GC-12421-00-00 ...HOUSING, WATER PUMP...HOUSING, WATER PUMP
-
48GC-12427-00-00 ...GASKET, HOUSING COVER 1...GASKET, HOUSING COVER 1
-
58ES-12438-00-00 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
693306-00006-00 ...BEARING...BEARING
-
793102-10207-00 ...OIL SEAL (SD 10-21-5 HS)...OIL SEAL (SD 10-21-5 HS)
-
88GC-12450-00-00 ...IMPELLER SHAFT ASSY...IMPELLER SHAFT ASSY
-
998502-06016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1099009-10400-00 ...CIRCLIP...CIRCLIP
-
1193210-30640-00 O-RINGO-RING
-
1291312-06035-00 BOLTBOLT
-
138GC-12552-00-00 HOSE 8HOSE 8
-
1490450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
158GC-12469-00-00 JOINT 1JOINT 1
-
1693210-56589-00 O-RINGO-RING
-
1790110-06164-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
188GC-12588-00-00 HOSE 5HOSE 5
-
1990450-19001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
208GC-12589-00-00 HOSE 6HOSE 6
-
2190450-19001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2290450-19001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
18GC-12420-00-00 WATER PUMP ASSYWATER PUMP ASSY
-
28GC-12422-00-00 ...COVER, HOUSING...COVER, HOUSING
-
38GC-12421-00-00 ...HOUSING, WATER PUMP...HOUSING, WATER PUMP
-
48GC-12427-00-00 ...GASKET, HOUSING COVER 1...GASKET, HOUSING COVER 1
-
58ES-12438-00-00 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
693306-00006-00 ...BEARING...BEARING
-
793102-10207-00 ...OIL SEAL (SD 10-21-5 HS)...OIL SEAL (SD 10-21-5 HS)
-
88GC-12450-00-00 ...IMPELLER SHAFT ASSY...IMPELLER SHAFT ASSY
-
998502-06016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1099009-10400-00 ...CIRCLIP...CIRCLIP
-
1193210-30640-00 O-RINGO-RING
-
1291312-06035-00 BOLTBOLT
-
138GC-12552-00-00 HOSE 8HOSE 8
-
1490450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
158GC-12469-00-00 JOINT 1JOINT 1
-
1693210-56589-00 O-RINGO-RING
-
1790110-06164-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
188GC-12588-00-00 HOSE 5HOSE 5
-
1990450-19001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
208GC-12589-00-00 HOSE 6HOSE 6
-
2190450-19001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2290450-19001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
