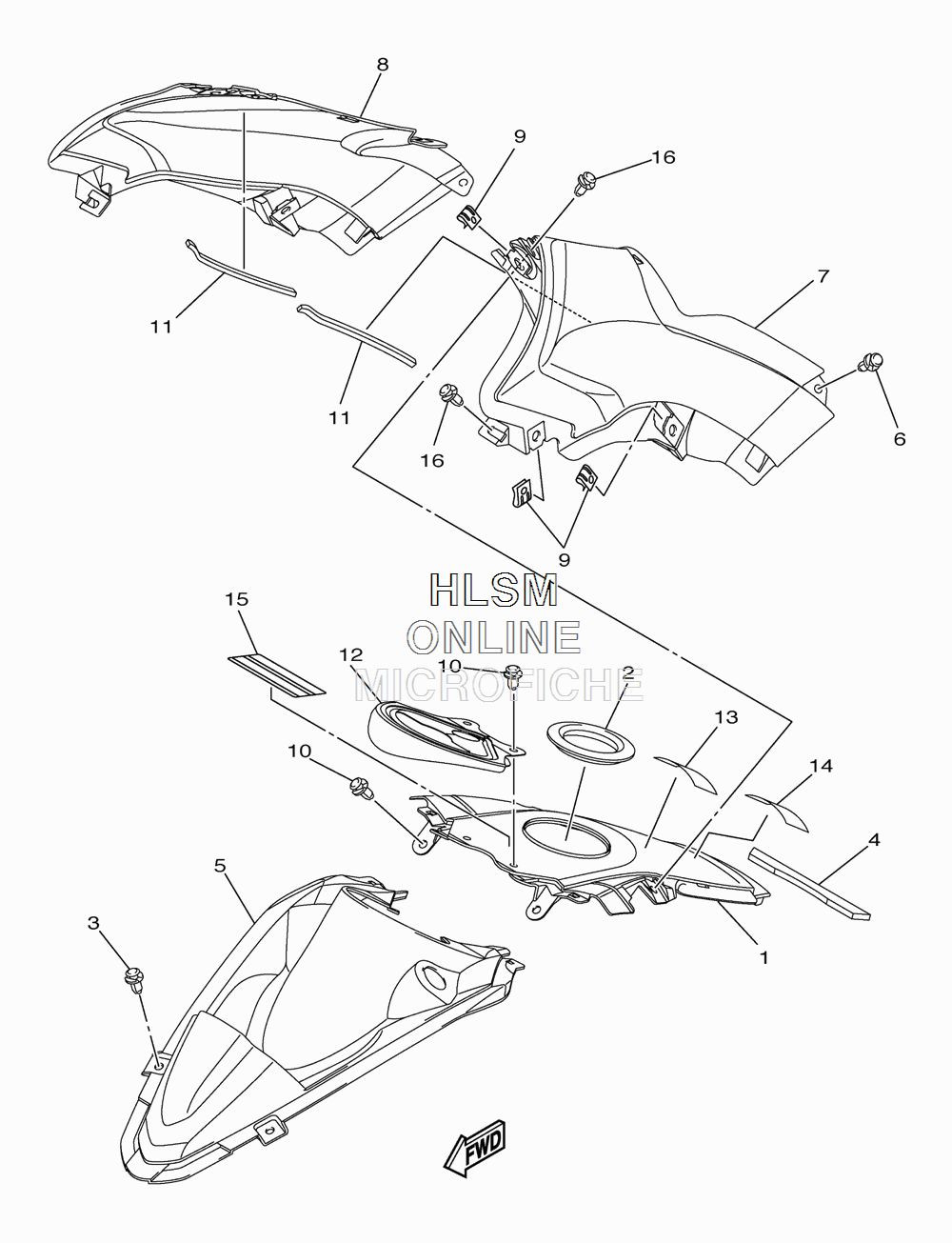

CONSOLE ASSY для Yamaha FX NYTRO MTX 162 - 2013 года выпуска
-
№АртикулНазвание
-
18GL-77711-40-00 PANEL, INSTRUMENT (FOR YB - YAMAHA BLACK)PANEL, INSTRUMENT (FOR YB - YAMAHA BLACK)
-
18GL-77711-00-00 PANEL, INSTRUMENT (FOR DPBSE - PURPLISH BLUE)PANEL, INSTRUMENT (FOR DPBSE - PURPLISH BLUE)
-
28GL-77746-00-00 GROMMETGROMMET
-
390269-08006-00 RIVETRIVET
-
48GL-78316-01-00 DAMPERDAMPER
-
58GL-77712-00-00 PANEL, INSTRUMENTPANEL, INSTRUMENT
-
690269-08006-00 RIVETRIVET
-
78GL-21711-00-00 COVER, SIDE 1COVER, SIDE 1
-
88GL-21721-00-00 COVER, SIDE 2COVER, SIDE 2
-
94XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
1090269-08006-00 RIVETRIVET
-
118GL-78305-00-00 DAMPERDAMPER
-
128GL-77732-00-00 COVER, STEERING SHAFT 1COVER, STEERING SHAFT 1
-
138GL-77761-E0-00 LABEL, WARNING 1LABEL, WARNING 1
-
148GP-77761-00-00 LABEL, WARNING 1LABEL, WARNING 1
-
158JJ-2815M-E0-00 LABEL, NOTICE TRACKLABEL, NOTICE TRACK
-
1690269-08005-00 RIVETRIVET
