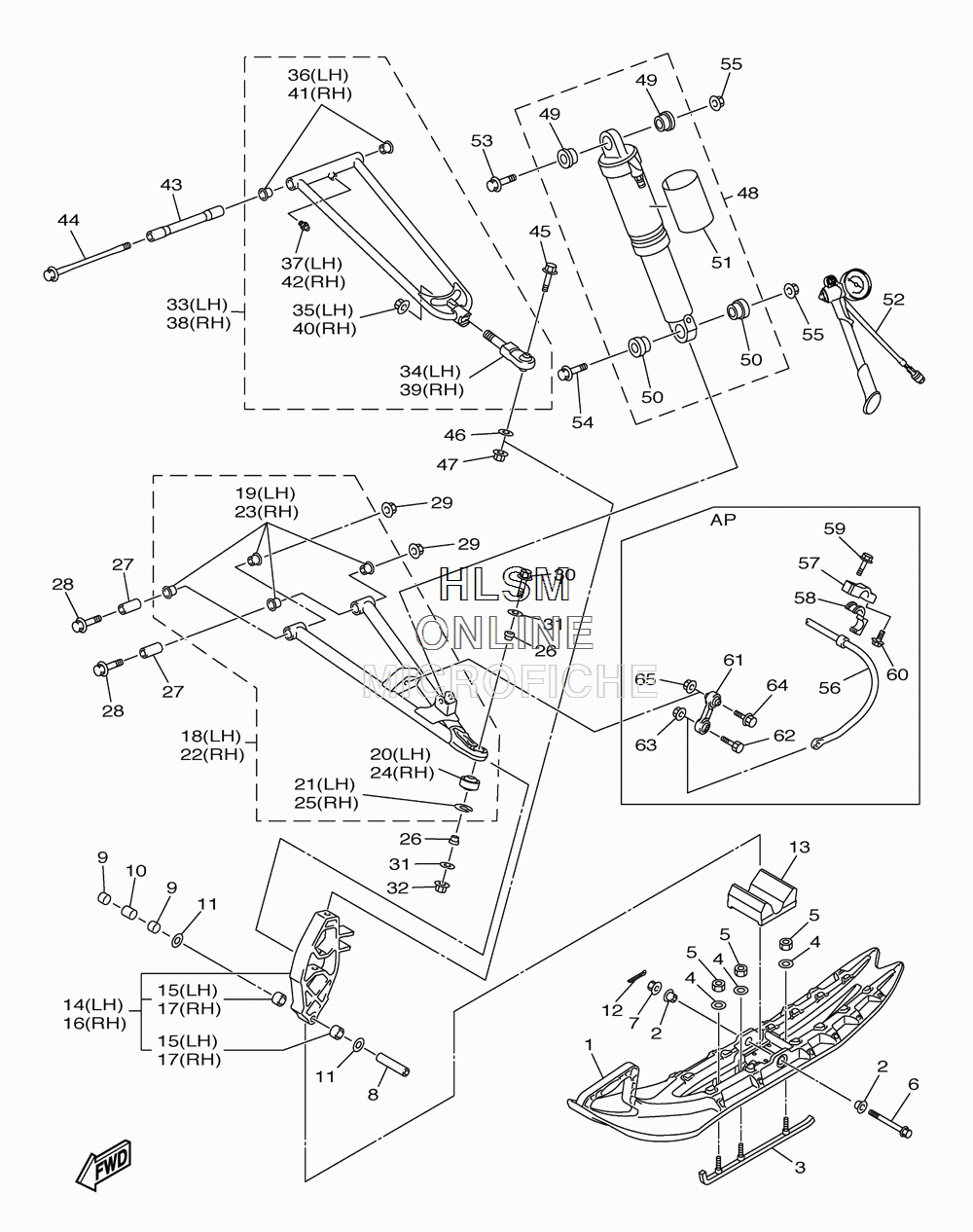

SUSPENSION - FRONT W/ SKI ASSY для Yamaha FX NYTRO MTX 162 - 2013 года выпуска
-
№АртикулНазвание
-
18HR-F3711-00-00 SKI 1SKI 1
-
28HR-F3754-00-00 COLLAR, 1COLLAR, 1
-
38HR-F3731-00-00 RUNNER 1RUNNER 1
-
48HR-F3738-00-00 WASHER 2WASHER 2
-
58HR-F3778-00-00 NUTNUT
-
690105-10410-00 BOLT, FLANGEBOLT, FLANGE
-
795602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
890387-10036-00 COLLARCOLLAR
-
990387-16017-00 COLLARCOLLAR
-
1090387-16021-00 COLLARCOLLAR
-
1190201-16033-00 WASHER, PLATEWASHER, PLATE
-
1291401-20020-00 PIN, COTTERPIN, COTTER
-
138HR-23743-00-00 STOPPER 1STOPPER 1
-
148HK-23501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1590384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
168HK-23502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
1790384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
188JH-23570-00-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
1990381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
208HK-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
2199009-35700-00 ...CIRCLIP...CIRCLIP
-
228JH-23580-00-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
2390381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
248HK-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
2599009-35700-00 ...CIRCLIP...CIRCLIP
-
268HK-23754-00-00 COLLAR, 1COLLAR, 1
-
2790387-10065-00 COLLARCOLLAR
-
2890105-10211-00 BOLT, FLANGEBOLT, FLANGE
-
2995602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
3090105-10318-00 BOLT, FLANGEBOLT, FLANGE
-
3190201-10052-00 WASHER, PLATEWASHER, PLATE
-
3295602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
338JH-23540-00-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
348GK-23549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
3595602-14200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
3690381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
3793700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
388JH-23550-00-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
398GK-23549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
4095602-14200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
4190381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
4293700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
438JH-23373-00-00 COLLAR 1COLLAR 1
-
4490105-10353-00 BOLT, FLANGEBOLT, FLANGE
-
4591312-10045-00 BOLTBOLT
-
4690201-10052-00 WASHER, PLATEWASHER, PLATE
-
4795602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
488HR-F376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
498HR-2376B-09-00 ...BUSH...BUSH
-
508HR-2376B-19-00 ...BUSH...BUSH
-
518HR-F2259-00-00 ...LABEL, WARNING...LABEL, WARNING
-
528HR-F3703-00-00 ADJUSTERADJUSTER
-
5390105-10122-00 BOLT, FLANGEBOLT, FLANGE
-
5490105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
5595602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
568GN-2386E-00-00 BAR, STABILIZER FRONT (14MM)BAR, STABILIZER FRONT (14MM)
-
568GN-2386E-10-00 BAR, STABILIZER FRONT (15MM WHITE)BAR, STABILIZER FRONT (15MM WHITE)
-
568GN-2386E-20-00 BAR, STABILIZER FRONT (13MM YELLOW)BAR, STABILIZER FRONT (13MM YELLOW)
-
578GL-2386C-00-00 HOLDER, STABILIZER FRONTHOLDER, STABILIZER FRONT
-
588GN-2386G-10-00 BUSH, STABILIZER FRONT (15.1 MM)BUSH, STABILIZER FRONT (15.1 MM)
-
588GN-2386G-00-00 BUSH, STABILIZER FRONT (14.1 MM)BUSH, STABILIZER FRONT (14.1 MM)
-
588GN-2386G-20-00 BUSH, STABILIZER FRONT (13.1 MM)BUSH, STABILIZER FRONT (13.1 MM)
-
5992012-08030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
6092012-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
618GN-2385L-10-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
6297012-10035-00 BOLTBOLT
-
6395602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
6495812-08040-00 BOLT, FLANGEBOLT, FLANGE
-
6595602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
