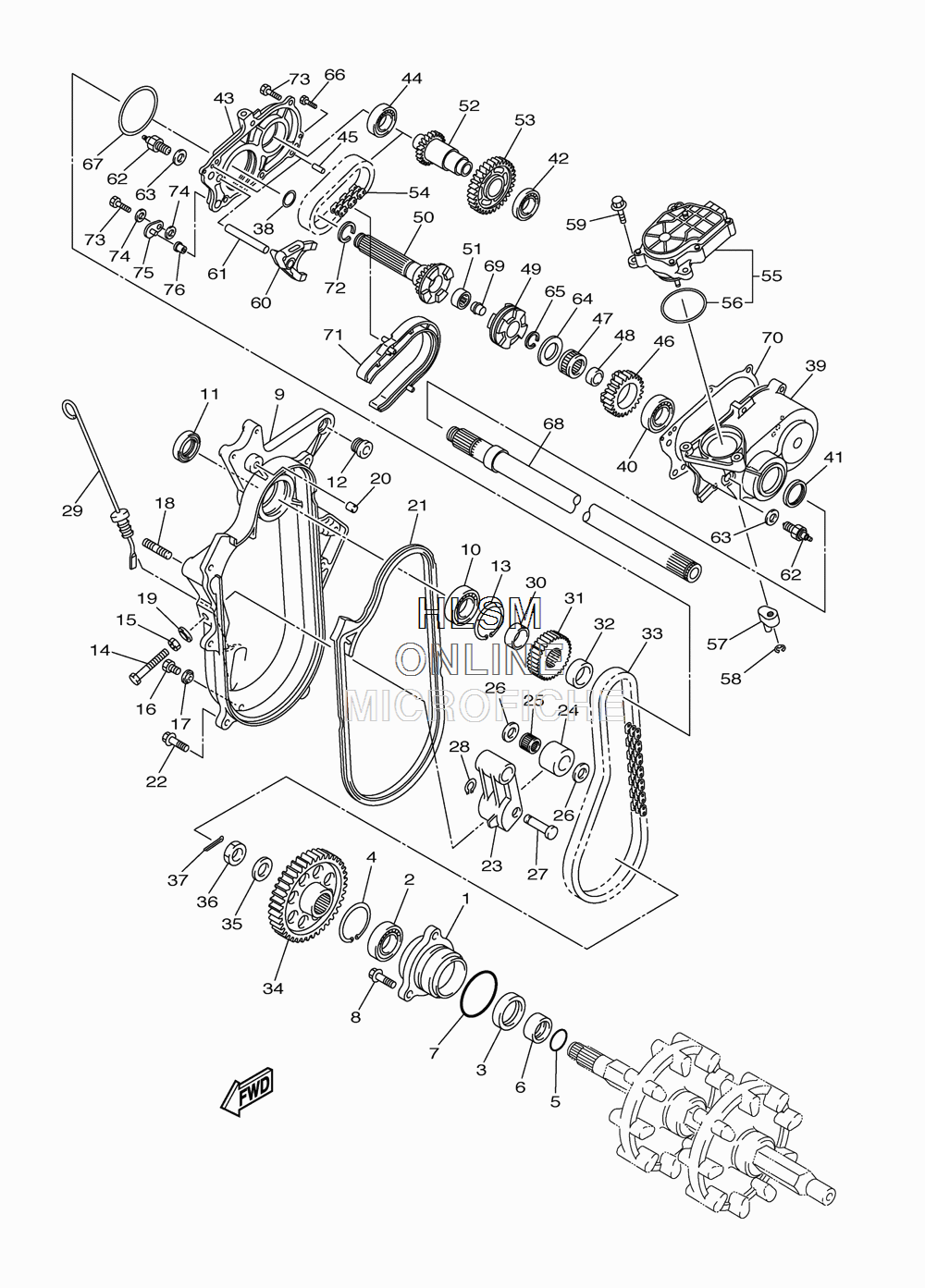

CHAINCASE ASSY для Yamaha PHAZER RTX - 2013 года выпуска
-
№АртикулНазвание
-
18GC-47633-00-00 HOUSING, BEARING 2HOUSING, BEARING 2
-
293306-20592-00 BEARINGBEARING
-
393102-35010-00 OIL SEALOIL SEAL
-
499009-52500-00 CIRCLIPCIRCLIP
-
593210-25071-00 O-RINGO-RING
-
690387-2508C-00 COLLARCOLLAR
-
793210-62269-00 O-RINGO-RING
-
895822-08025-00 BOLT, FLANGEBOLT, FLANGE
-
98GC-47543-01-00 CAP, HOUSINGCAP, HOUSING
-
1093306-00501-00 BEARINGBEARING
-
1193102-32337-00 OIL SEALOIL SEAL
-
1290179-10679-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1399009-47500-00 CIRCLIPCIRCLIP
-
1490101-10026-00 BOLTBOLT
-
1595302-10600-00 NUTNUT
-
1697002-08014-00 BOLTBOLT
-
1790210-08017-00 WASHER, SEALWASHER, SEAL
-
1895627-08618-00 BOLT, STUDBOLT, STUD
-
1990210-10004-00 WASHER, SEALWASHER, SEAL
-
2091811-10005-00 PIN, DOWELPIN, DOWEL
-
218GC-47558-00-00 RING, HOUSINGRING, HOUSING
-
2295822-08030-00 BOLT, FLANGEBOLT, FLANGE
-
238GC-47613-00-00 HOLDERHOLDER
-
248FA-47612-00-00 WHEELWHEEL
-
2593310-212R6-00 BEARING, CYL.#10BEARING, CYL.#10
-
2690201-127E1-00 WASHER, PLATEWASHER, PLATE
-
2790249-12003-00 PINPIN
-
2899009-12400-00 CIRCLIPCIRCLIP
-
298GC-47546-00-00 LEVEL, OILLEVEL, OIL
-
3090387-25020-00 COLLARCOLLAR
-
318GC-17682-80-00 SPROCKET, CHAIN DRIVE (18T)SPROCKET, CHAIN DRIVE (18T)
-
3290387-250V9-00 COLLARCOLLAR
-
3394591-63080-00 CHAIN (80L)CHAIN (80L)
-
348GC-47587-10-00 SPROCKET, CHAIN DRIVEN (41T)SPROCKET, CHAIN DRIVEN (41T)
-
3590208-22001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
3690170-22094-00 NUTNUT
-
3791402-30030-00 PIN, COTTERPIN, COTTER
-
3893210-20001-00 O-RINGO-RING
-
398GR-46291-01-00 CASE 1CASE 1
-
4093306-00501-00 BEARINGBEARING
-
4193102-27169-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
4293316-00404-00 BEARINGBEARING
-
438GR-46292-01-00 CASE 2CASE 2
-
4493306-00401-00 BEARINGBEARING
-
4593605-17137-00 PIN, DOWELPIN, DOWEL
-
468GJ-17143-00-00 GEAR, REVERSE PINION 1 (24T)GEAR, REVERSE PINION 1 (24T)
-
4793310-330S2-00 BEARINGBEARING
-
4890387-25019-00 COLLARCOLLAR
-
498GJ-17492-00-00 DOG, TRANSMISSION SHIFTDOG, TRANSMISSION SHIFT
-
508GJ-17523-01-00 SHAFTSHAFT
-
5193315-21813-00 BEARING, CYL.#15BEARING, CYL.#15
-
528GJ-17431-00-00 AXLE, COUNTERAXLE, COUNTER
-
538GJ-17243-00-00 GEAR, REVERSE WHEEL 1 (32T)GEAR, REVERSE WHEEL 1 (32T)
-
5494591-60044-00 CHAIN (44L)CHAIN (44L)
-
558GJ-4616A-01-00 SERVO MOTOR COMPSERVO MOTOR COMP
-
5693210-50768-00 ...O-RING...O-RING
-
578GJ-46386-00-00 ARM, SHIFTARM, SHIFT
-
5899002-04600-00 CIRCLIPCIRCLIP
-
5995802-08020-00 BOLT, FLANGEBOLT, FLANGE
-
608GJ-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
618GJ-18318-00-00 SHAFT, SHIFTERSHAFT, SHIFTER
-
623GD-82540-11-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
6390430-10M11-00 GASKETGASKET
-
6490201-25291-00 WASHER, PLATEWASHER, PLATE
-
6599009-25400-00 CIRCLIPCIRCLIP
-
6691312-05016-00 BOLTBOLT
-
6793210-65M50-00 O-RINGO-RING
-
688GK-17681-01-00 SHAFT, SECONDARYSHAFT, SECONDARY
-
6982M-17699-00-00 PLUG, OILPLUG, OIL
-
708GJ-15455-10-00 GASKET 1GASKET 1
-
718GJ-17466-00-00 GUIDE, CHAINGUIDE, CHAIN
-
7299009-25400-00 CIRCLIPCIRCLIP
-
7395822-06040-00 BOLT, FLANGEBOLT, FLANGE
-
7490430-06166-00 GASKETGASKET
-
758GJ-17021-01-00 PIPE,OIL 1PIPE,OIL 1
-
7690480-11013-00 GROMMETGROMMET
