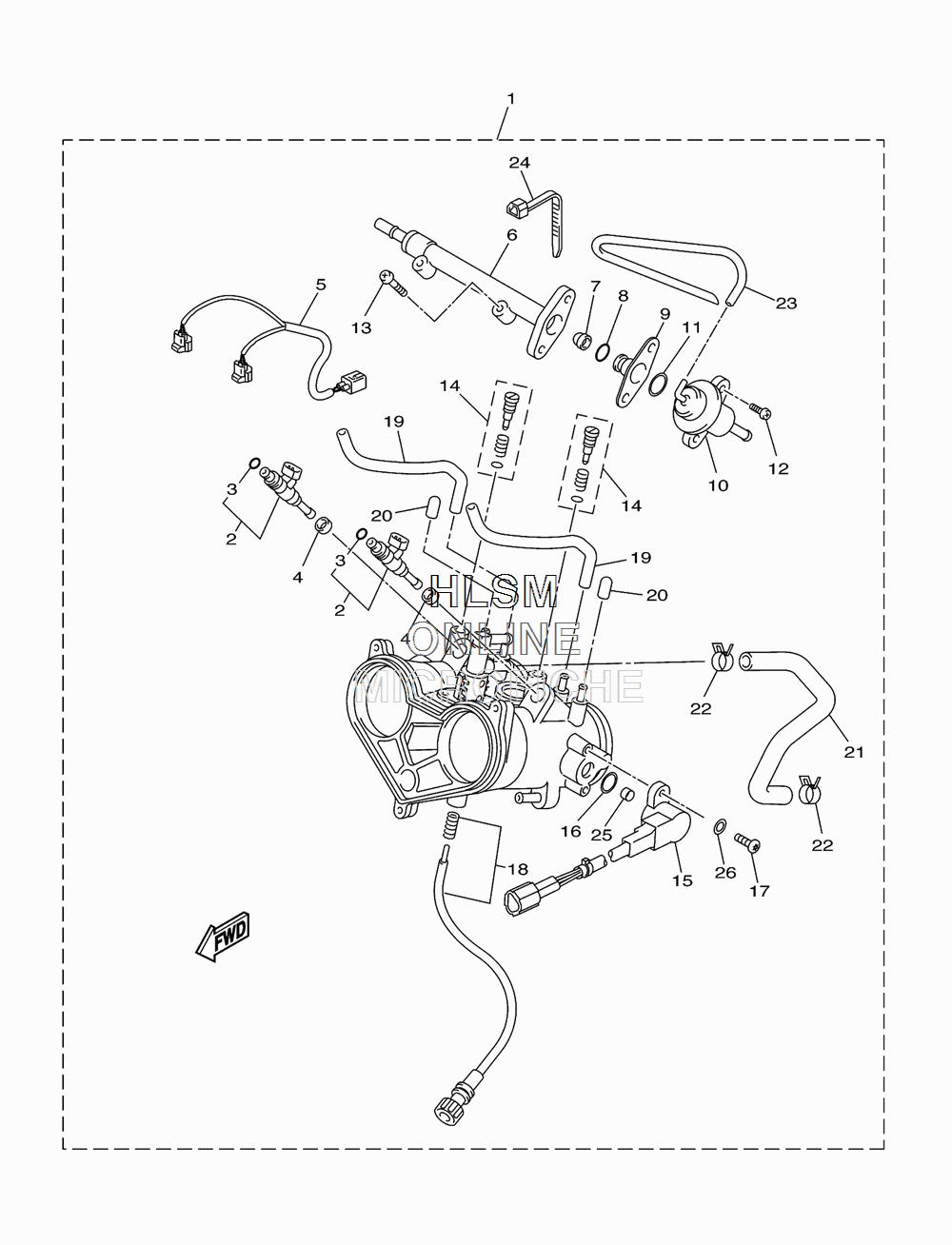

THROTTLE BODY ASSY для Yamaha VENTURE MULTI PURPOSE - 2013 года выпуска
-
№АртикулНазвание
-
18GC-13750-10-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
28GC-13761-00-00 ...INJECTOR...INJECTOR
-
38GC-13769-00-00 ......O-RING......O-RING
-
490430-09002-00 ...GASKET...GASKET
-
58GC-82386-10-00 ...EXTENSION, WIRE HARNESS...EXTENSION, WIRE HARNESS
-
68GC-13938-00-00 ...PIPE...PIPE
-
73TJ-14569-40-00 ...STRAINER...STRAINER
-
88GC-13769-00-00 ...O-RING...O-RING
-
98GC-13661-00-00 ...SEAT, INTAKE VALVE 1...SEAT, INTAKE VALVE 1
-
108GC-13906-00-00 ...REGULATOR, PRESSURE...REGULATOR, PRESSURE
-
118GC-1416A-00-00 ...O-RING...O-RING
-
128GC-14325-00-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
138GC-14486-00-00 ...SCREW, ROD...SCREW, ROD
-
148GC-14104-00-00 ...AIR SCREW SET...AIR SCREW SET
-
155BE-85885-10-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
164TV-14562-00-00 ...O-RING...O-RING
-
174YR-14216-00-00 ...SCREW...SCREW
-
188GC-14503-00-00 ...ADJUST SCREW SET...ADJUST SCREW SET
-
198GC-14349-00-00 ...PIPE...PIPE
-
208GC-14169-00-00 ...CAP...CAP
-
218GC-14987-00-00 ...HOSE...HOSE
-
228GC-13577-00-00 ...CLIP...CLIP
-
238GC-14348-00-00 ...PIPE 1...PIPE 1
-
248GC-13575-00-00 ...BAND...BAND
-
254TV-14534-00-00 ...COLLAR...COLLAR
-
264YR-14557-00-00 ...WASHER...WASHER
