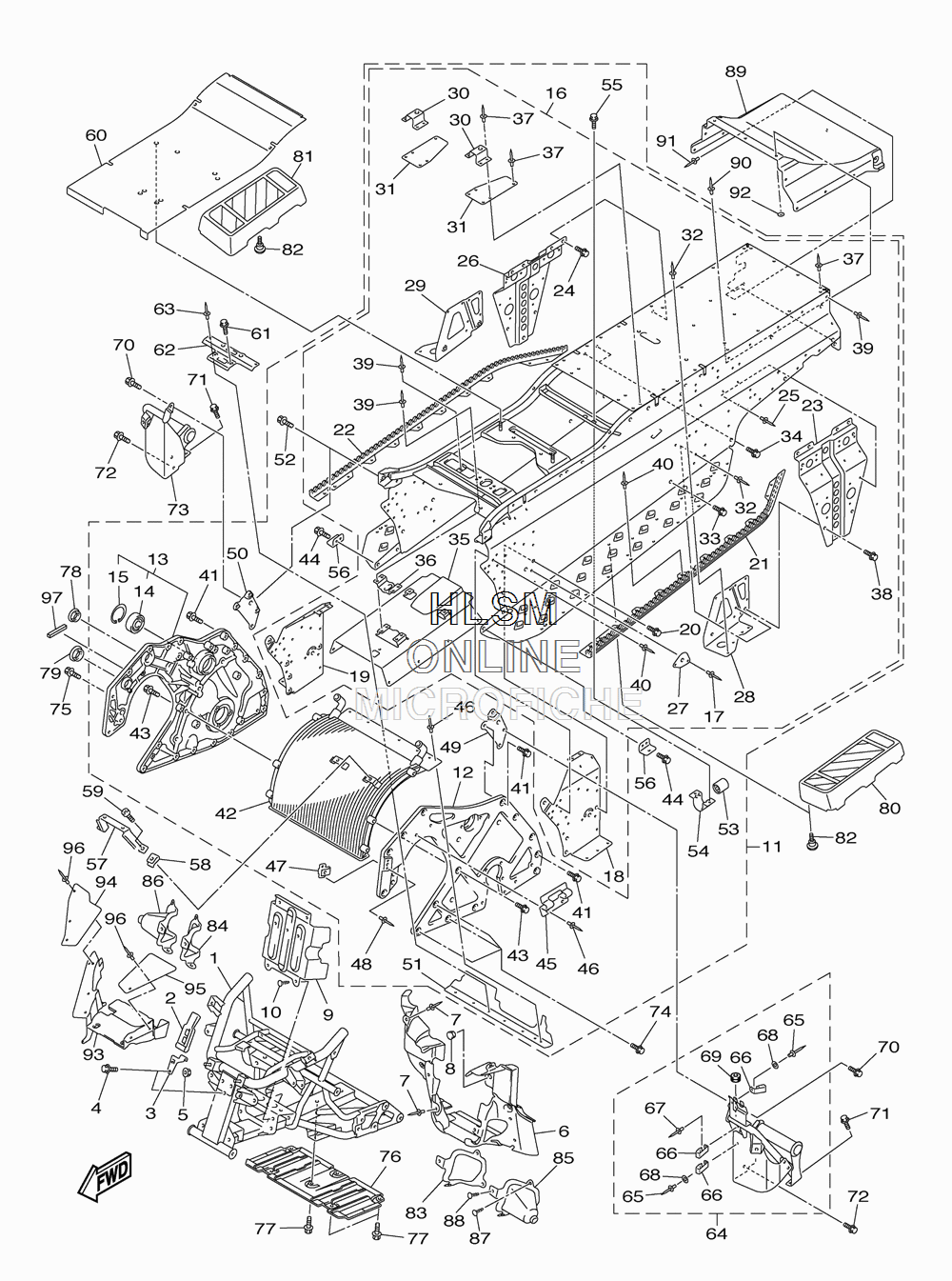

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha VENTURE MULTI PURPOSE - 2013 года выпуска
-
№АртикулНазвание
-
18GJ-21940-01-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
259V-21646-00-00 BANDBAND
-
38GJ-2175W-00-00 BRACKET 4BRACKET 4
-
492017-05045-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
595702-05500-00 NUT, FLANGE (SILVER)NUT, FLANGE (SILVER)
-
68GJ-21912-01-00 PANEL, SUB FRAME 1PANEL, SUB FRAME 1
-
790267-48086-00 RIVET, BLIND (4.8X19 BLACK)RIVET, BLIND (4.8X19 BLACK)
-
890338-12192-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
98GC-2195A-10-00 PROTECTOR, FRAME APROTECTOR, FRAME A
-
1090269-05003-00 RIVETRIVET
-
118GJ-21950-21-00 REAR FRAME COMP.REAR FRAME COMP.
-
128GC-21991-00-00 ...REINF., PANELL FRAME 1...REINF., PANELL FRAME 1
-
138GK-21930-20-00 ...HOUSING, REINF SUB-ASSY (RIGHT HAND)...HOUSING, REINF SUB-ASSY (RIGHT HAND)
-
1493306-20511-00 ......BEARING......BEARING
-
1599009-52500-00 ......CIRCLIP......CIRCLIP
-
168GJ-21950-29-00 ...REAR FRAME COMP....REAR FRAME COMP.
-
1790267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)...RIVET, BLIND (4.7X16.4 YELLOW)
-
188GJ-21943-00-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
198GJ-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
2095822-08012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
218GJ-21926-00-00 ...REINFORCEMENT, FOOTREST 1...REINFORCEMENT, FOOTREST 1
-
228GJ-21936-00-00 ...REINFORCEMENT, FOOTREST 2...REINFORCEMENT, FOOTREST 2
-
238GJ-21944-00-00 ...BRACKET, REAR TRACK SUSPENSION...BRACKET, REAR TRACK SUSPENSION
-
2495822-08020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2590267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)...RIVET, BLIND (4.7X16.4 YELLOW)
-
268GJ-21954-00-00 ...BRACKET, REAR TRACK SUSPENSION...BRACKET, REAR TRACK SUSPENSION
-
278FK-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
288GJ-21967-00-00 ...PATCH 7...PATCH 7
-
298GJ-21988-00-00 ...PATCH 8...PATCH 8
-
308GJ-21391-00-00 ...BRACKET, SEAT...BRACKET, SEAT
-
318GJ-21329-00-00 ...PLATE...PLATE
-
3290267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)...RIVET, BLIND (4.7X16.4 YELLOW)
-
3395822-08014-00 ...BOLT, FLANGE...BOLT, FLANGE
-
3495822-08016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
358GC-2199H-00-00 ...SHIELD, HEAT...SHIELD, HEAT
-
368GC-1467H-00-00 ...BRACKET, SILENCER 1...BRACKET, SILENCER 1
-
3790267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)...RIVET, BLIND (4.7X16.4 YELLOW)
-
3895822-08016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
3990267-48023-00 ...RIVET, BLIND (4.8X12.1 YELLOW)...RIVET, BLIND (4.8X12.1 YELLOW)
-
4090267-48177-00 ...RIVET, BLIND (4.8X14 YELLOW)...RIVET, BLIND (4.8X14 YELLOW)
-
4195022-08020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
428GJ-12440-00-00 ...HEAT EXCHANGER ASSY...HEAT EXCHANGER ASSY
-
4395822-08020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
4490109-065G4-00 ...BOLT...BOLT
-
458GC-21973-00-00 ...HOOK...HOOK
-
4690267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)...RIVET, BLIND (4.7X16.4 YELLOW)
-
472TK-2177L-00-00 ...PLATE, SPRING...PLATE, SPRING
-
4890267-32192-00 ...RIVET, BLIND (3.2X13.8)...RIVET, BLIND (3.2X13.8)
-
498GJ-21963-00-00 ...PATCH 3...PATCH 3
-
508GJ-21964-00-00 ...PATCH 4...PATCH 4
-
518GJ-2176E-00-00 ...PLATE...PLATE
-
5295822-10016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
538GC-14747-00-00 ...DAMPER, MUFFLER...DAMPER, MUFFLER
-
548GC-21121-00-00 ...BRACKET, DAMPER...BRACKET, DAMPER
-
5592012-06010-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
568GC-21967-00-00 ...PATCH 7...PATCH 7
-
578GC-2164F-00-00 STAY 1STAY 1
-
5890183-06053-00 NUT, SPRINGNUT, SPRING
-
5991312-06012-00 BOLTBOLT
-
608GJ-21916-00-00 PANEL, SUB FRAME 5PANEL, SUB FRAME 5
-
6198902-06012-00 SCREW, BINDSCREW, BIND
-
628GJ-2164G-00-00 STAY 2STAY 2
-
6390267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
648GJ-21960-00-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
6590267-48010-00 ...RIVET, BLIND (4.8X12 YELLOW)...RIVET, BLIND (4.8X12 YELLOW)
-
6690465-08368-00 ...CLAMP...CLAMP
-
6790267-48083-00 ...RIVET, BLIND (4.8X15.2 SILVER)...RIVET, BLIND (4.8X15.2 SILVER)
-
6890201-043H7-00 ...WASHER, PLATE...WASHER, PLATE
-
6990480-13163-00 .GROMMET.GROMMET
-
7095822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
7195022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
7290105-06080-00 BOLT, FLANGEBOLT, FLANGE
-
738GJ-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
7495822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
7590105-08190-00 BOLT, FLANGEBOLT, FLANGE
-
768GJ-2193A-00-00 PROTECTORPROTECTOR
-
7790109-066G1-00 BOLTBOLT
-
7890480-27001-00 GROMMETGROMMET
-
7990480-40003-00 GROMMETGROMMET
-
808GJ-27431-00-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
818GJ-27441-00-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
8297702-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
838GJ-2195E-00-00 PLATE, STEERING BRACKET 1PLATE, STEERING BRACKET 1
-
848GJ-2195F-00-00 PLATE, STEERING BRACKET 2PLATE, STEERING BRACKET 2
-
858GJ-2198F-00-00 COVER 1COVER 1
-
868GJ-2198J-00-00 COVER 3COVER 3
-
8790269-05003-00 RIVETRIVET
-
8890269-05002-00 RIVETRIVET
-
898GJ-77557-01-00 PROTECTOR 7PROTECTOR 7
-
9090267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
9190267-47187-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
9290201-05033-00 WASHER, PLATEWASHER, PLATE
-
938GJ-2197E-00-00 PROTECTOR, FRAME FRPROTECTOR, FRAME FR
-
948GJ-241A4-00-00 SEAL 4SEAL 4
-
958GJ-241A5-00-00 SEAL 5SEAL 5
-
9690269-05055-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
978GL-77319-00-00 DAMPER 1DAMPER 1
