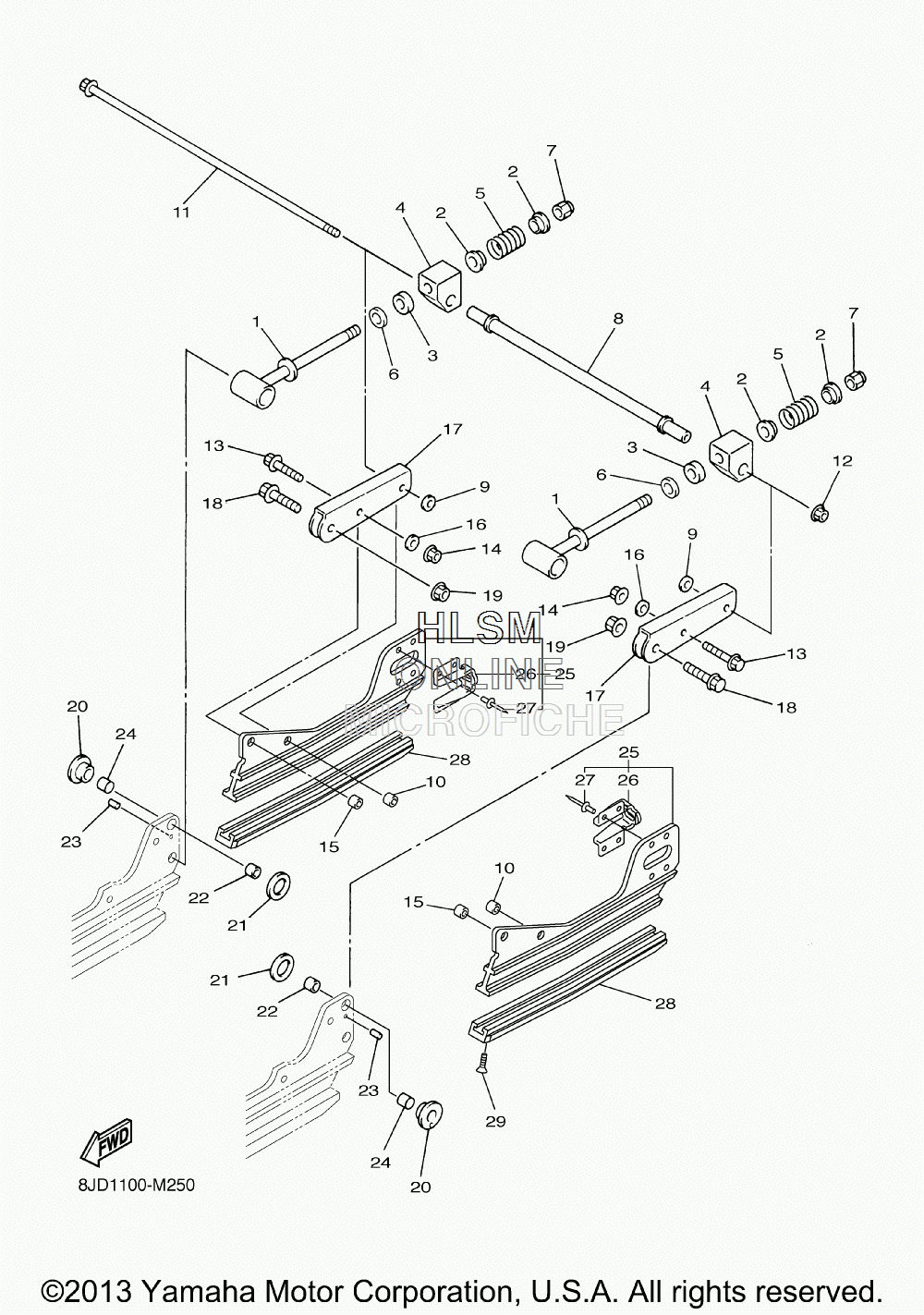

PIVOT ARM W/ SHOCK для Yamaha RS VIKING PRO - 2014 года выпуска
-
№АртикулНазвание
-
183R-47337-10-00 SHAFT, PIVOTSHAFT, PIVOT
-
283R-23768-00-00 SEAT, SPRING 1SEAT, SPRING 1
-
383R-47335-00-00 SPRINGSPRING
-
483R-47446-00-00 HOOK 1HOOK 1
-
590501-407E4-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
690201-12317-00 WASHER, PLATEWASHER, PLATE
-
790185-12058-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
88AC-47478-10-00 COLLAR 2COLLAR 2
-
990201-08649-00 WASHER, PLATEWASHER, PLATE
-
1090387-082J1-00 COLLARCOLLAR
-
1190105-08483-00 BOLT WASHER BASEDBOLT WASHER BASED
-
1295602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1395812-08035-00 BOLT, FLANGEBOLT, FLANGE
-
1495602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1590387-082J1-00 COLLARCOLLAR
-
1690201-08649-00 WASHER, PLATEWASHER, PLATE
-
178FM-47333-10-00 ARM, PIVOT 3ARM, PIVOT 3
-
1895812-10030-00 BOLT, FLANGEBOLT, FLANGE
-
1990185-10019-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2090387-1815A-00 COLLARCOLLAR
-
2190202-22238-00 WASHER, PLATEWASHER, PLATE
-
2290387-1014Y-00 COLLARCOLLAR
-
2391609-30008-00 PIN, SPRINGPIN, SPRING
-
2490380-16109-00 BUSH, SOLIDBUSH, SOLID
-
258FM-W4741-10-00 FRAME, SLIDINGFRAME, SLIDING
-
268DM-4741B-00-00 ...BRACKET...BRACKET
-
278V0-47468-00-00 ...RIVET...RIVET
-
288FM-47424-00-00 RUNNER, SLIDING 4RUNNER, SLIDING 4
-
2990151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
