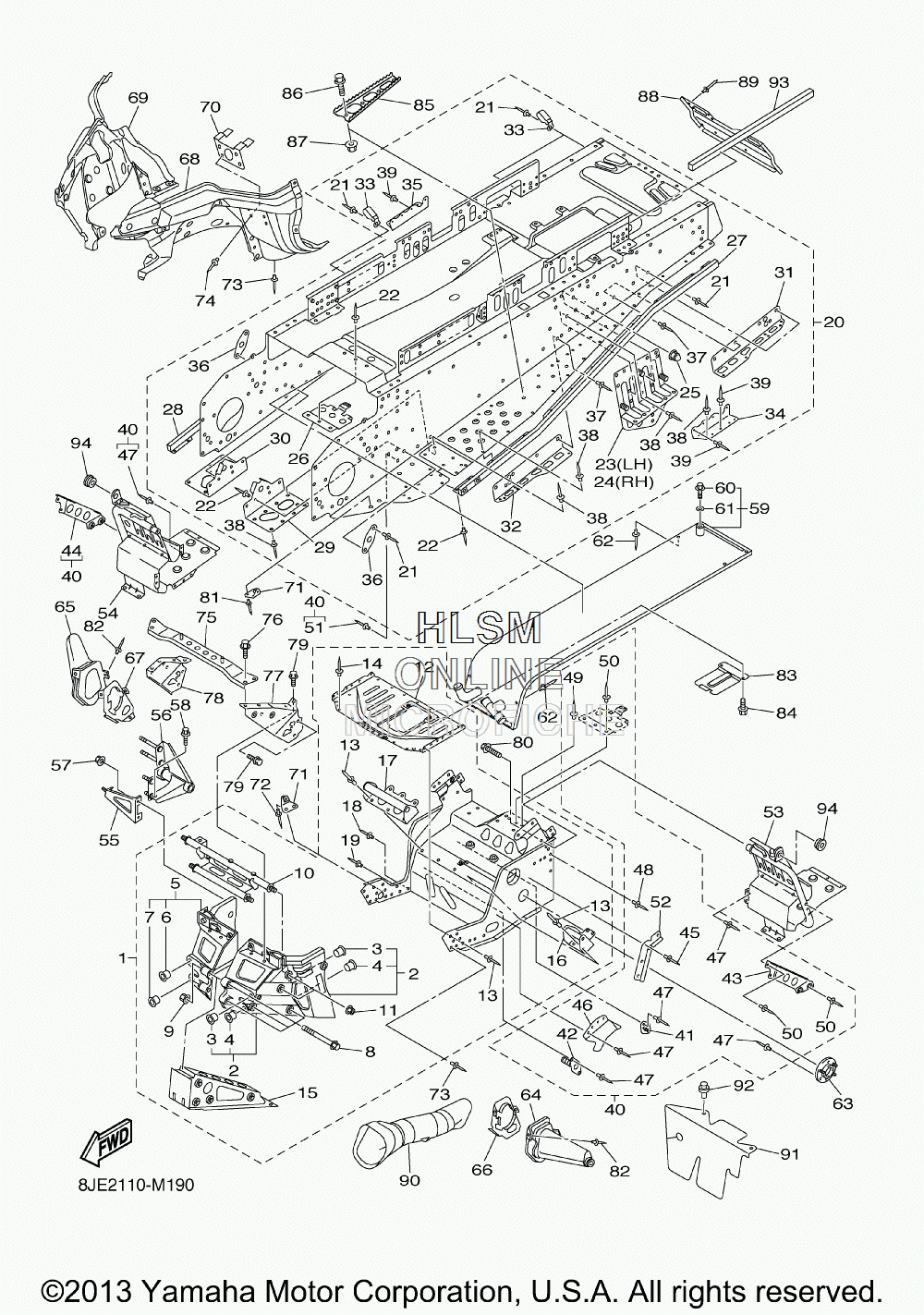

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha RS VIKING PRO - 2014 года выпуска
-
№АртикулНазвание
-
18GS-21940-12-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FN-W2197-02-00 ...BULKHEAD...BULKHEAD
-
390381-15001-00 ......BUSH, SOLID......BUSH, SOLID
-
490381-16004-00 ......BUSH, SOLID......BUSH, SOLID
-
58FN-Y291E-02-00 ...BULKHEAD 2...BULKHEAD 2
-
690381-15001-00 ......BUSH, SOLID......BUSH, SOLID
-
790381-16004-00 ......BUSH, SOLID......BUSH, SOLID
-
890105-08072-00 ...BOLT, FLANGE...BOLT, FLANGE
-
995607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
108FN-21947-00-00 ...BRACKET, STEERING 1...BRACKET, STEERING 1
-
1195607-10200-00 ...NUT SELF-LOCKING...NUT SELF-LOCKING
-
128GS-2193A-01-00 ...PROTECTOR...PROTECTOR
-
1390267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)...RIVET, BLIND (4.7X16.4 YELLOW)
-
1490267-48016-00 ...RIVET, BLIND (4.8X16.4 YELLOW)...RIVET, BLIND (4.8X16.4 YELLOW)
-
158FN-2198E-00-00 ...REINFORCEMENT, FRAME 3...REINFORCEMENT, FRAME 3
-
168FN-2194F-00-00 ...BRACKET, ENGINE 2...BRACKET, ENGINE 2
-
178FN-2194G-00-00 ...BRACKET, ENGINE 3...BRACKET, ENGINE 3
-
1890267-48176-00 ...RIVET, BLIND (4.8X17 YELLOW)...RIVET, BLIND (4.8X17 YELLOW)
-
1990267-48177-00 ...RIVET, BLIND (4.8X14 YELLOW)...RIVET, BLIND (4.8X14 YELLOW)
-
208JE-21950-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
2190267-48023-00 ...RIVET, BLIND (4.8X12.1 YELLOW)...RIVET, BLIND (4.8X12.1 YELLOW)
-
2290267-48177-00 ...RIVET, BLIND (4.8X14 YELLOW)...RIVET, BLIND (4.8X14 YELLOW)
-
238JE-21944-00-00 ......BRACKET, REAR TRACK SUSPENS......BRACKET, REAR TRACK SUSPENS
-
248JE-21954-00-00 ......BRACKET, REAR TRACK SUSPENS......BRACKET, REAR TRACK SUSPENS
-
2590176-10033-00 ...NUT, CROWN...NUT, CROWN
-
268FN-2194H-00-00 ...PROTECTOR, MUFFLER...PROTECTOR, MUFFLER
-
278FN-21926-00-00 ...REINFORCEMENT, FOOTREST 1...REINFORCEMENT, FOOTREST 1
-
288FN-21936-00-00 ...REINFORCEMENT, FOOTREST 2...REINFORCEMENT, FOOTREST 2
-
298JE-21943-00-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
308JE-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
318FN-21962-01-00 ...PATCH 2...PATCH 2
-
328FN-21963-01-00 ...PATCH 3...PATCH 3
-
3390465-08368-00 ...CLAMP...CLAMP
-
348GS-21965-10-00 ...PATCH 5...PATCH 5
-
358GS-21966-10-00 ...PATCH 6...PATCH 6
-
368FN-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
3790267-48026-00 ...RIVET, BLIND (4.8X12.1 BLACK)...RIVET, BLIND (4.8X12.1 BLACK)
-
3890267-48028-00 ...RIVET, BLIND (4.8X14 BLACK)...RIVET, BLIND (4.8X14 BLACK)
-
3990267-48029-00 ...RIVET, BLIND (4.8X17 BLACK)...RIVET, BLIND (4.8X17 BLACK)
-
408JE-W2195-00-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
418CR-21939-01-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
428FN-21939-00-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
438FG-2196M-00-00 ...BRACKET, 5...BRACKET, 5
-
448FG-2197M-00-00 ...BRACKET, 6...BRACKET, 6
-
4590267-48018-00 ...RIVET, BLIND (4.8X18.6 BLACK)...RIVET, BLIND (4.8X18.6 BLACK)
-
468FU-2198G-00-00 ...COVER 2...COVER 2
-
4790267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)...RIVET, BLIND (4.7X16.4 YELLOW)
-
4890267-48016-00 ...RIVET, BLIND (4.8X16.4 YELLOW)...RIVET, BLIND (4.8X16.4 YELLOW)
-
4990267-48023-00 ...RIVET, BLIND (4.8X12.1 YELLOW)...RIVET, BLIND (4.8X12.1 YELLOW)
-
5090267-48177-00 ...RIVET, BLIND (4.8X14 YELLOW)...RIVET, BLIND (4.8X14 YELLOW)
-
5190267-48176-00 ...RIVET, BLIND (4.8X17 YELLOW)...RIVET, BLIND (4.8X17 YELLOW)
-
528FA-21999-00-00 ...CLAMP, WIRE HARNESS...CLAMP, WIRE HARNESS
-
538FN-21960-01-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
548GS-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
558FN-2193E-00-00 BRACKET, OIL TANK 1BRACKET, OIL TANK 1
-
568FN-2194E-00-00 BRACKET, ENGINEBRACKET, ENGINE
-
5795602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5895822-10016-00 BOLT, FLANGEBOLT, FLANGE
-
598FN-12440-01-00 HEAT EXCHANGER ASSYHEAT EXCHANGER ASSY
-
6095812-06016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
6190210-06006-00 ...WASHER, SEAL...WASHER, SEAL
-
6290267-48016-00 RIVET, BLIND (4.8X16.4 YELLOW)RIVET, BLIND (4.8X16.4 YELLOW)
-
638EK-21920-01-00 HOUSING, REINF SUB-ASSY (L.H)HOUSING, REINF SUB-ASSY (L.H)
-
648FU-2198F-01-00 COVER 1COVER 1
-
658FU-2198J-01-00 COVER 3COVER 3
-
668FU-2195E-01-00 PLATE, STEERING BRACKET 1PLATE, STEERING BRACKET 1
-
678FU-2195F-01-00 PLATE, STEERING BRACKET 2PLATE, STEERING BRACKET 2
-
688ES-2196A-01-00 FRAME UNDER 1FRAME UNDER 1
-
698FA-2196E-01-00 FRAME, UNDER 2FRAME, UNDER 2
-
708FA-21972-01-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
718FA-2196F-00-00 BRACKET 3BRACKET 3
-
7290267-48083-00 RIVET, BLIND (4.8X15.2 SILVER)RIVET, BLIND (4.8X15.2 SILVER)
-
7390267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
7490267-47187-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
758FN-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
7695822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
778FN-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
788FN-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
7995822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
8095822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
8190267-48095-00 RIVET,BLIND (4.8X12.6 SILVER)RIVET,BLIND (4.8X12.6 SILVER)
-
8290267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
838FR-2197E-00-00 PROTECTOR, FRAME FRPROTECTOR, FRAME FR
-
8492012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
858JE-27431-00-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
8695807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
8795707-06500-00 NUT, FLANGENUT, FLANGE
-
888FN-21933-01-00 REINFORCEMENT, FRAME REAR 2REINFORCEMENT, FRAME REAR 2
-
8990267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
908FN-21557-00-00 DUCT, AIRDUCT, AIR
-
918FN-2198F-00-00 COVER 1COVER 1
-
9290269-09002-00 RIVETRIVET
-
938FN-241A5-00-00 SEAL 5SEAL 5
-
9490480-16278-00 GROMMETGROMMET
