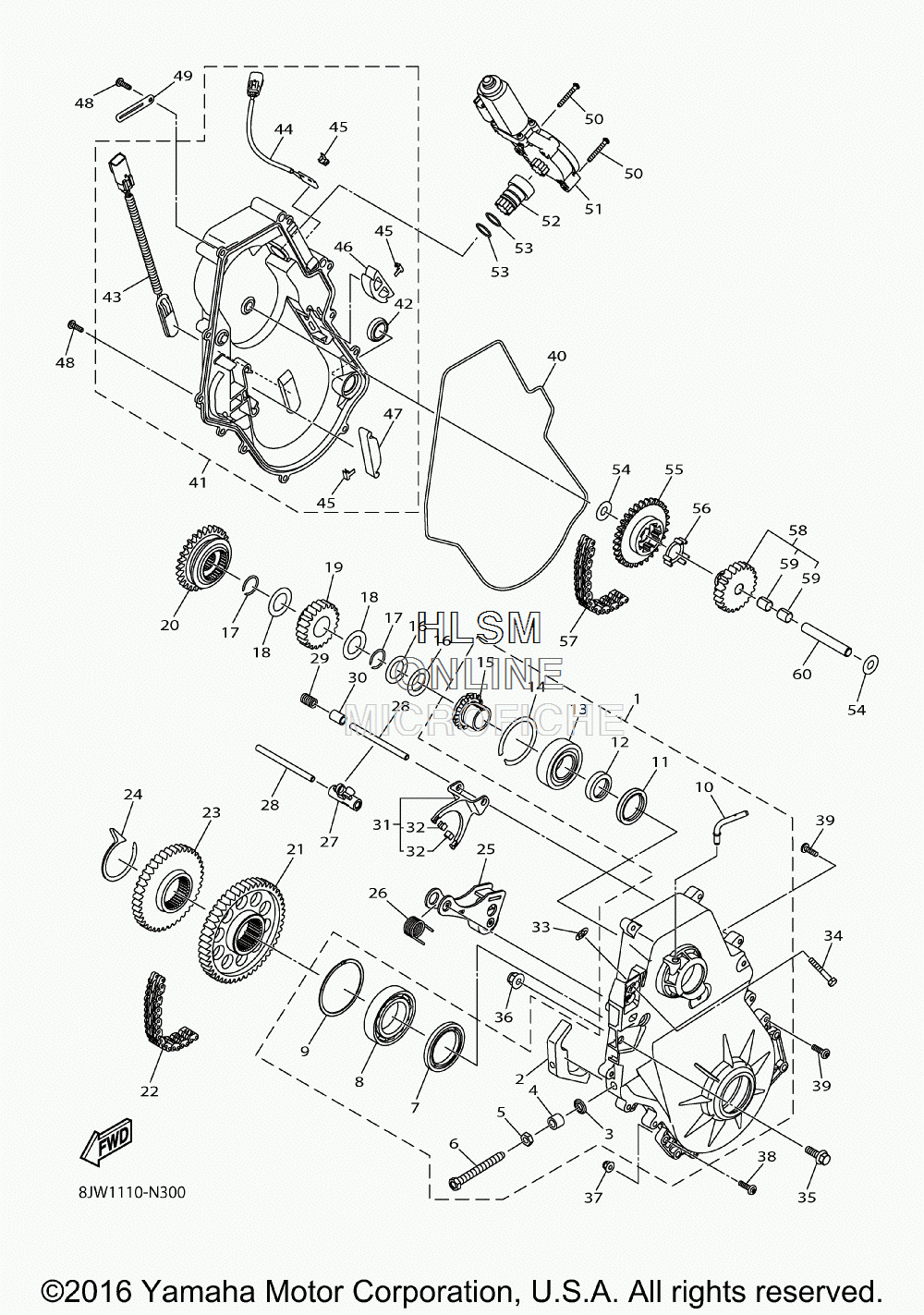

CHAINCASE ASSY для Yamaha SR VIPER LTX - 2014 года выпуска
-
№АртикулНазвание
-
18JP-G754A-00-00 CHAIN CASE ASSY.CHAIN CASE ASSY.
-
28JP-G7516-00-00 ...PLATE, RATCHET...PLATE, RATCHET
-
390210-10004-00 ...WASHER, SEAL...WASHER, SEAL
-
48JP-RA716-00-00 ...COLLAR, 4...COLLAR, 4
-
58JP-RA366-00-00 ...NUT, HEX. 3/8-16...NUT, HEX. 3/8-16
-
68JP-RA1A8-00-00 ...BOLT, HEX. 3/8-16X3.25...BOLT, HEX. 3/8-16X3.25
-
78JP-RAE03-00-00 ...SEAL, OIL 50X65X8...SEAL, OIL 50X65X8
-
88JP-RAG05-00-00 ...BEARING, 6009...BEARING, 6009
-
98JP-RAH05-00-00 ...CIRCLIP, EH-75...CIRCLIP, EH-75
-
108JP-G7586-00-00 ...BREATHER...BREATHER
-
118JP-RAE01-00-00 ...SEAL, OIL 35X47X7...SEAL, OIL 35X47X7
-
128JP-RA715-00-00 ...COLLAR, 3...COLLAR, 3
-
138JP-RAG04-00-00 ...BEARING, 2206K...BEARING, 2206K
-
148JP-RAH06-00-00 ...CIRCLIP, FH-062...CIRCLIP, FH-062
-
158JP-E7645-00-00 ...COLLAR...COLLAR
-
168JP-RA439-00-00 WASHER, 1.00X1.43X0.075 (OPT)WASHER, 1.00X1.43X0.075 (OPT)
-
168JP-RA438-00-00 WASHER, 1.00X1.43X0.030 (OPT)WASHER, 1.00X1.43X0.030 (OPT)
-
178JP-RAH08-00-00 CIRCLIP, FSE-0093CIRCLIP, FSE-0093
-
188JP-RA440-00-00 WASHER, 1.00X1.562X0.062WASHER, 1.00X1.562X0.062
-
198JP-E769A-40-00 DRIVE SPROCKET ASSY. (24T)DRIVE SPROCKET ASSY. (24T)
-
208JP-E7143-00-00 GEAR, REVERSE PINION 1GEAR, REVERSE PINION 1
-
218JP-G7587-00-00 SPROCKET, CHAIN DRIVEN (50T)SPROCKET, CHAIN DRIVEN (50T)
-
228JP-RAM01-00-00 CHAIN, BWA 13 (92L)CHAIN, BWA 13 (92L)
-
238JP-G7548-00-00 SPROCKET, CHAIN DRIVENSPROCKET, CHAIN DRIVEN
-
248JP-RAH09-00-00 CIRCLIP, FSE-0168CIRCLIP, FSE-0168
-
258JP-G7613-00-00 HOLDERHOLDER
-
268JP-RAD12-00-00 SPRING, 1SPRING, 1
-
278JP-E8112-00-00 ARM, SHIFTARM, SHIFT
-
288JP-E8125-00-00 SHAFT, SHIFTSHAFT, SHIFT
-
298JP-RAD13-00-00 SPRING, 2SPRING, 2
-
308JP-RA803-00-00 BUSH, 2BUSH, 2
-
318JP-E8501-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
328JP-G7614-00-00 ...SHOE...SHOE
-
338JP-RA347-00-00 NUT, 1/4NUT, 1/4
-
348JP-RA1A9-00-00 BOLT, HEX. M6X1.0X40BOLT, HEX. M6X1.0X40
-
358JP-RA185-00-00 BOLT, FLANGE M8X1.25X20BOLT, FLANGE M8X1.25X20
-
368JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
378JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
388JP-RA266-00-00 SCREW, M6X1.0X30SCREW, M6X1.0X30
-
398JP-RA259-00-00 SCREW, M6X1.0X20SCREW, M6X1.0X20
-
408JP-G7558-00-00 RING, HOUSINGRING, HOUSING
-
418JP-G754B-00-00 HOUSING CAP ASSY.HOUSING CAP ASSY.
-
428JP-E5361-00-00 ...GAUGE, LEVEL...GAUGE, LEVEL
-
438JP-H5985-00-00 ...SENSOR, SPEED...SENSOR, SPEED
-
448JP-H5899-00-00 ...SENSOR, GEAR POSITION...SENSOR, GEAR POSITION
-
458JP-RAC12-00-00 ...CLIP, 3...CLIP, 3
-
468JP-E7468-00-00 ...GUIDE, CHAIN 2...GUIDE, CHAIN 2
-
478JP-E7467-00-00 ...GUIDE, CHAIN 1...GUIDE, CHAIN 1
-
488JP-RA262-00-00 SCREW, M6X1.0X25SCREW, M6X1.0X25
-
498JP-RAB22-00-00 CLAMP, 20CLAMP, 20
-
508JP-RA248-00-00 SCREW, M5X0.8X35SCREW, M5X0.8X35
-
518JP-G616A-00-00 SERVO MOTOR COMPSERVO MOTOR COMP
-
528JP-E7848-00-00 ADAPTERADAPTER
-
538JP-RAF04-00-00 O-RING, 2O-RING, 2
-
548JP-RA444-00-00 WASHER, 12X26X1WASHER, 12X26X1
-
558JP-E7692-00-00 SPROCKET, DRIVESPROCKET, DRIVE
-
568JP-E8615-00-00 DAMPER, RUBBERDAMPER, RUBBER
-
578JP-RAM02-00-00 CHAIN, REX 11CHAIN, REX 11
-
588JP-E724A-00-00 REVERSE WHEEL ASSY.REVERSE WHEEL ASSY.
-
598JP-RA809-00-00 ...BUSH, 12...BUSH, 12
-
608JP-E761A-00-00 SHAFT 1SHAFT 1
