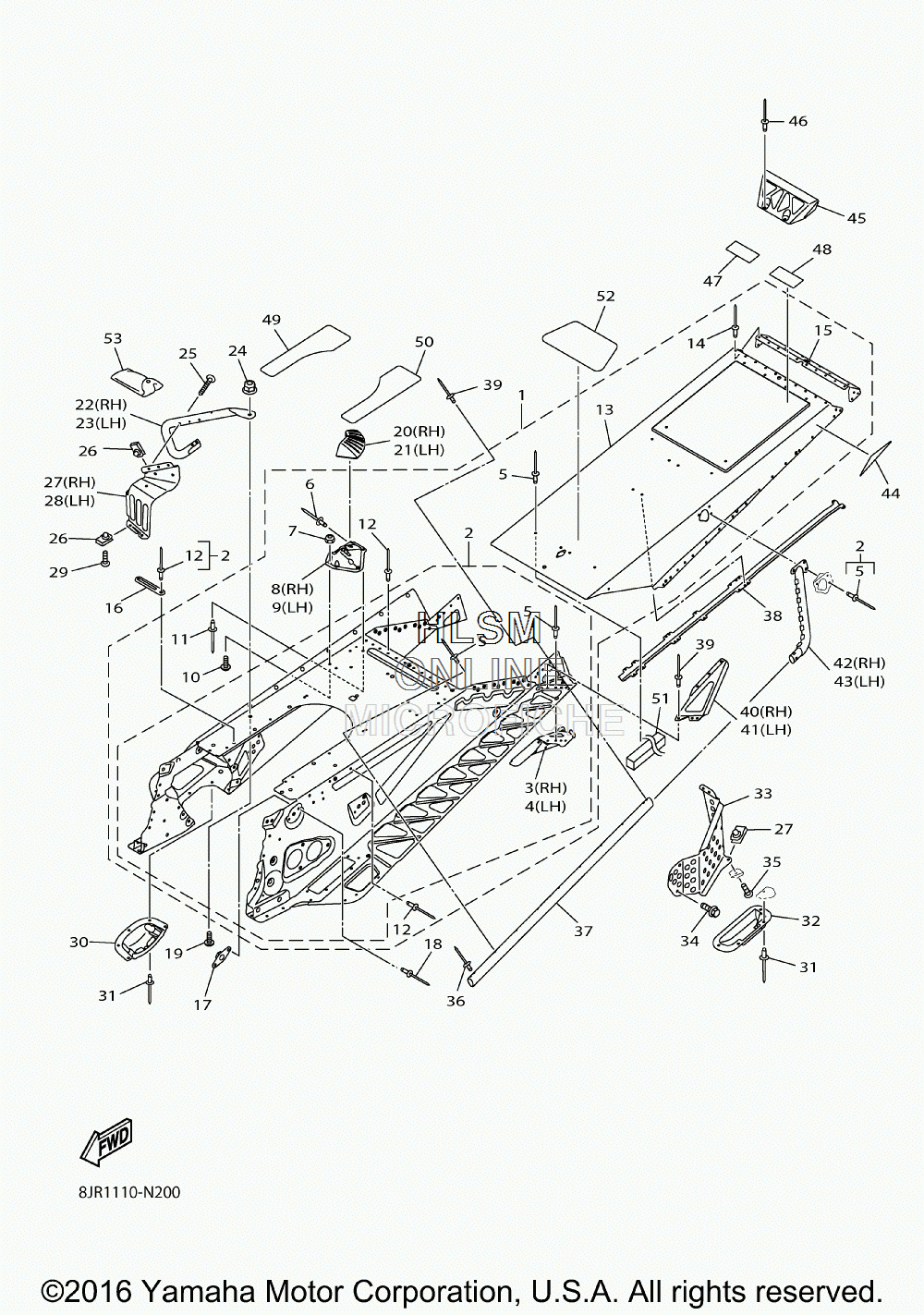

TUNNEL EXTENSION ASSEMBLY для Yamaha SR VIPER LTX - 2014 года выпуска
-
№АртикулНазвание
-
18JX-F1950-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
28JX-F1911-00-00 ...PANEL, FRAME...PANEL, FRAME
-
38JX-F1954-00-00 ............BRACKET, REAR TRACK SUS............BRACKET, REAR TRACK SUS
-
48JX-F1944-00-00 ............BRACKET, REAR TRACK SUS............BRACKET, REAR TRACK SUS
-
58JP-RA518-00-00 ......RIVET, 9......RIVET, 9
-
68JP-RA527-00-00 ...RIVET, 3/16...RIVET, 3/16
-
78JP-RA370-00-00 ...NUT, HEX. LOCKING...NUT, HEX. LOCKING
-
88JP-F115M-00-00 ...BRACKET, MEMBER 2...BRACKET, MEMBER 2
-
98JP-F115L-00-00 ...BRACKET, MEMBER 1...BRACKET, MEMBER 1
-
108JP-RA239-00-00 ...SCREW, 5...SCREW, 5
-
118JP-RA528-00-00 ...RIVET, 3/16...RIVET, 3/16
-
128JP-RA517-00-00 ...RIVET, 8...RIVET, 8
-
138JX-F1912-00-00 ...PANEL, SUB FRAME 1...PANEL, SUB FRAME 1
-
148JP-RA514-00-00 ...RIVET, 5...RIVET, 5
-
158JP-F1923-00-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
168JP-RAB20-00-00 CLAMP, 18CLAMP, 18
-
178JP-F1919-00-00 BRACKETBRACKET
-
188JP-RA519-00-00 RIVET, 10RIVET, 10
-
198JP-RA272-00-00 SCREW, M8X1.25X20SCREW, M8X1.25X20
-
208JP-F2556-00-00 SUPPORT, FUEL TANK 2SUPPORT, FUEL TANK 2
-
218JP-F2555-00-00 SUPPORT, FUEL TANK 1SUPPORT, FUEL TANK 1
-
228JP-F192E-00-00 REINFORCEMENT, FRAMEREINFORCEMENT, FRAME
-
238JP-F1929-00-00 REINFORCEMENT, FRAME SIDEREINFORCEMENT, FRAME SIDE
-
248JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
258JP-RA247-00-00 SCREW, M5X0.8X35SCREW, M5X0.8X35
-
268JP-RA353-00-00 NUT, CLIP M5NUT, CLIP M5
-
278JP-F1996-00-00 REINFORCEMENT SUB FRAME FR 2REINFORCEMENT SUB FRAME FR 2
-
288JP-F1995-00-00 REINFORCEMENT SUB FRAME FR 1REINFORCEMENT SUB FRAME FR 1
-
298JP-RA251-00-00 SCREW, M5X1.0X16SCREW, M5X1.0X16
-
308JP-F2147-00-00 PROTECTOR, CHAINPROTECTOR, CHAIN
-
318JP-RA523-00-00 RIVET, 14RIVET, 14
-
328JP-F5717-00-00 PROTECTOR, DISC BRAKEPROTECTOR, DISC BRAKE
-
338JP-F5718-00-00 PROTECTOR, DISC BRAKEPROTECTOR, DISC BRAKE
-
348JP-RA179-00-00 BOLT, FLG. M6X1.0X12BOLT, FLG. M6X1.0X12
-
358JP-RA244-00-00 SCREW, M5X0.8X20SCREW, M5X0.8X20
-
368JP-RA526-00-00 RIVET, 3/16RIVET, 3/16
-
378JP-F1926-00-00 REINFORCEMENT, FOOTREST 1REINFORCEMENT, FOOTREST 1
-
388JP-H2589-00-00 PROTECTER, WIRE HARNESSPROTECTER, WIRE HARNESS
-
398JP-RA527-00-00 RIVET, 3/16RIVET, 3/16
-
408JP-F1135-00-00 GUSSET, RUNNING BOARD (R.H.)GUSSET, RUNNING BOARD (R.H.)
-
418JP-F1134-00-00 GUSSET, RUNNING BOARD (L.H.)GUSSET, RUNNING BOARD (L.H.)
-
428JP-F1137-00-00 GUSSET, TUNNEL ROLL (R.H.)GUSSET, TUNNEL ROLL (R.H.)
-
438JP-F1136-00-00 GUSSET, TUNNEL ROLL (L.H.)GUSSET, TUNNEL ROLL (L.H.)
-
448JP-F151A-00-00 LABEL 1LABEL 1
-
458JP-F117E-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
468JP-RA517-00-00 RIVET, 8RIVET, 8
-
478JP-K7762-70-00 LABEL, WARNING 2 (ENGLISH)LABEL, WARNING 2 (ENGLISH)
-
488JP-K7762-S0-00 LABEL, WARNING 2 (FRENCH)LABEL, WARNING 2 (FRENCH)
-
498JP-F197C-00-00 PROTECTOR, FRAME 3PROTECTOR, FRAME 3
-
508JP-F197B-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
518JP-F1978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
528JP-F4141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
538JP-F8100-00-00 TOOL KITTOOL KIT
