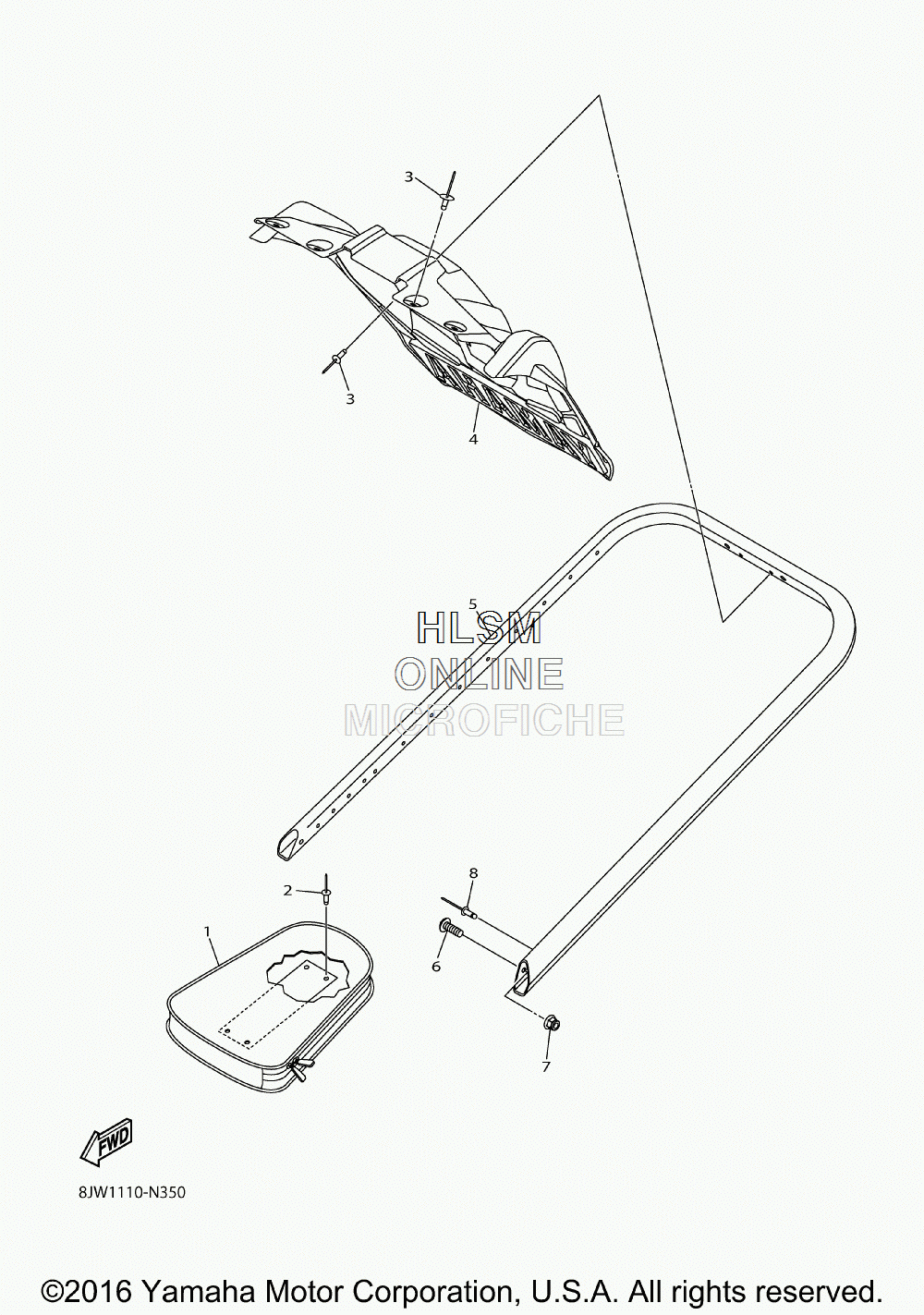

BUMPER - FRONT AND REAR для Yamaha SR VIPER R-TX SE - 2014 года выпуска
-
№АртикулНазвание
-
18JW-F8441-00-00 SADDLE BAG 1SADDLE BAG 1
-
28JP-RA518-00-00 RIVET, 9 FOR DPBSERIVET, 9 FOR DPBSE
-
28JP-RA520-00-00 RIVET, 11 FOR VRC1RIVET, 11 FOR VRC1
-
38JP-RA524-00-00 RIVET, 15RIVET, 15
-
48JP-K7595-00-00 FLAPFLAP
-
58JW-K7541-30-00 BUMPER, REAR 1 FOR DPBSEBUMPER, REAR 1 FOR DPBSE
-
58JW-K7541-00-00 BUMPER, REAR 1 FOR VRC1BUMPER, REAR 1 FOR VRC1
-
68JP-RA260-00-00 SCREW, M6X1.0X20SCREW, M6X1.0X20
-
78JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
88JP-RA518-00-00 RIVET, 9 FOR DPBSERIVET, 9 FOR DPBSE
-
88JP-RA520-00-00 RIVET, 11 FOR VRC1RIVET, 11 FOR VRC1
