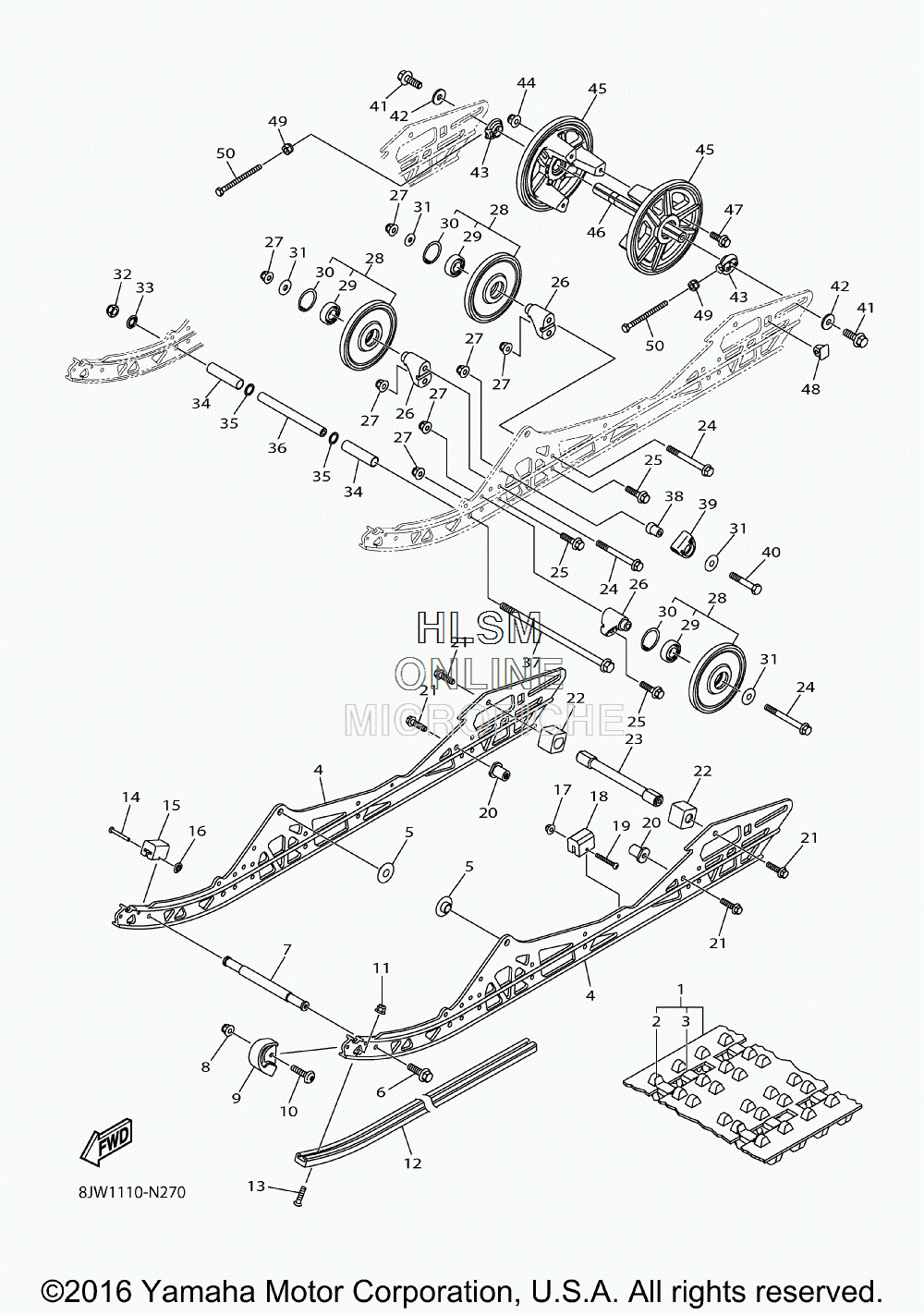

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha SR VIPER R-TX SE - 2014 года выпуска
-
№АртикулНазвание
-
18JP-G7110-00-00 TRACK ASSYTRACK ASSY
-
28JP-G7113-00-00 ...PLATE, REINFORCEMENT...PLATE, REINFORCEMENT
-
38JP-G7115-00-00 ...METAL, SLIDE...METAL, SLIDE
-
48JW-G741A-00-00 FRAME, SLIDINGFRAME, SLIDING
-
58JP-RA725-00-00 COLLAR, 13COLLAR, 13
-
68JP-RA186-00-00 BOLT, FLANGE M8X1.25X25BOLT, FLANGE M8X1.25X25
-
78JP-G7485-00-00 SHAFT 3SHAFT 3
-
88JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
98JP-G7422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
108JP-RA263-00-00 SCREW, M6X1.0X25SCREW, M6X1.0X25
-
118JP-RA357-00-00 NUT, FLANGE LOCKING 1/4-20NUT, FLANGE LOCKING 1/4-20
-
128JP-G7421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
138JM-RA206-00-00 SCREW, 1/4-20X1.125SCREW, 1/4-20X1.125
-
148JM-RAY02-00-00 PIN, 2PIN, 2
-
158JM-G7456-00-00 PAD SHOCK - RUBBERPAD SHOCK - RUBBER
-
168JP-RA346-00-00 .NUT, 0.125.NUT, 0.125
-
178JP-RA363-00-00 NUT, FLANGE LOCKING M5X0.8NUT, FLANGE LOCKING M5X0.8
-
188JP-G7457-00-00 DAMPER 2DAMPER 2
-
198JP-RA249-00-00 SCREW, M5X0.8X40SCREW, M5X0.8X40
-
208JP-G7368-00-00 NUTNUT
-
218JP-RA198-00-00 BOLT, FLANGE M10X1.25X30BOLT, FLANGE M10X1.25X30
-
228JP-G745D-00-00 STOPPER, CONT. 1STOPPER, CONT. 1
-
238JP-G7337-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
248JP-RA192-00-00 BOLT, FLANGE M8X1.25X80BOLT, FLANGE M8X1.25X80
-
258JP-RA188-00-00 BOLT, FLANGE M8X1.25X30BOLT, FLANGE M8X1.25X30
-
268JP-G7419-00-00 BRACKET 7BRACKET 7
-
278JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
288JP-G7310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
298JM-RAY03-00-00 ...BEARING, 2...BEARING, 2
-
308JM-RAH01-00-00 ...CIRCLIP, 2...CIRCLIP, 2
-
318JP-RA452-00-00 WASHER, 9.12X25.40X2.30WASHER, 9.12X25.40X2.30
-
328JP-RA371-00-00 NUT, HEX. LOCKING M10X1.25NUT, HEX. LOCKING M10X1.25
-
338JP-RA457-00-00 WASHER, TOOTH M10WASHER, TOOTH M10
-
348JP-RA723-00-00 COLLAR, 11COLLAR, 11
-
358JP-RA437-00-00 WASHER, 0.890X1.19X0.060WASHER, 0.890X1.19X0.060
-
368JP-RA729-00-00 COLLAR, 22.2COLLAR, 22.2
-
378JP-RA194-00-00 BOLT, FLANGE M10-1.25X250BOLT, FLANGE M10-1.25X250
-
388JP-G7319-00-00 COLLARCOLLAR
-
398JP-G7446-00-00 HOOK 1HOOK 1
-
408JP-RA1B2-00-00 BOLT, HEX. M8X1.25X50BOLT, HEX. M8X1.25X50
-
418JP-RA198-00-00 BOLT, FLANGE M10X1.25X30BOLT, FLANGE M10X1.25X30
-
428JP-RA453-00-00 WASHER, M10X29WASHER, M10X29
-
438JP-G7534-00-00 WHEEL, GUIDE 1WHEEL, GUIDE 1
-
448JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
458JP-G7550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
468JP-G7521-00-00 AXLE, REARAXLE, REAR
-
478JP-RA181-00-00 BOLT, FLANGE M6X1.0X20BOLT, FLANGE M6X1.0X20
-
488JP-G7463-00-00 BRACKET 5BRACKET 5
-
498JP-RA372-00-00 NUT, HEX. LOCKING M8X1.25NUT, HEX. LOCKING M8X1.25
-
508JP-RA1B1-00-00 BOLT, HEX. M8X1.25X100BOLT, HEX. M8X1.25X100
