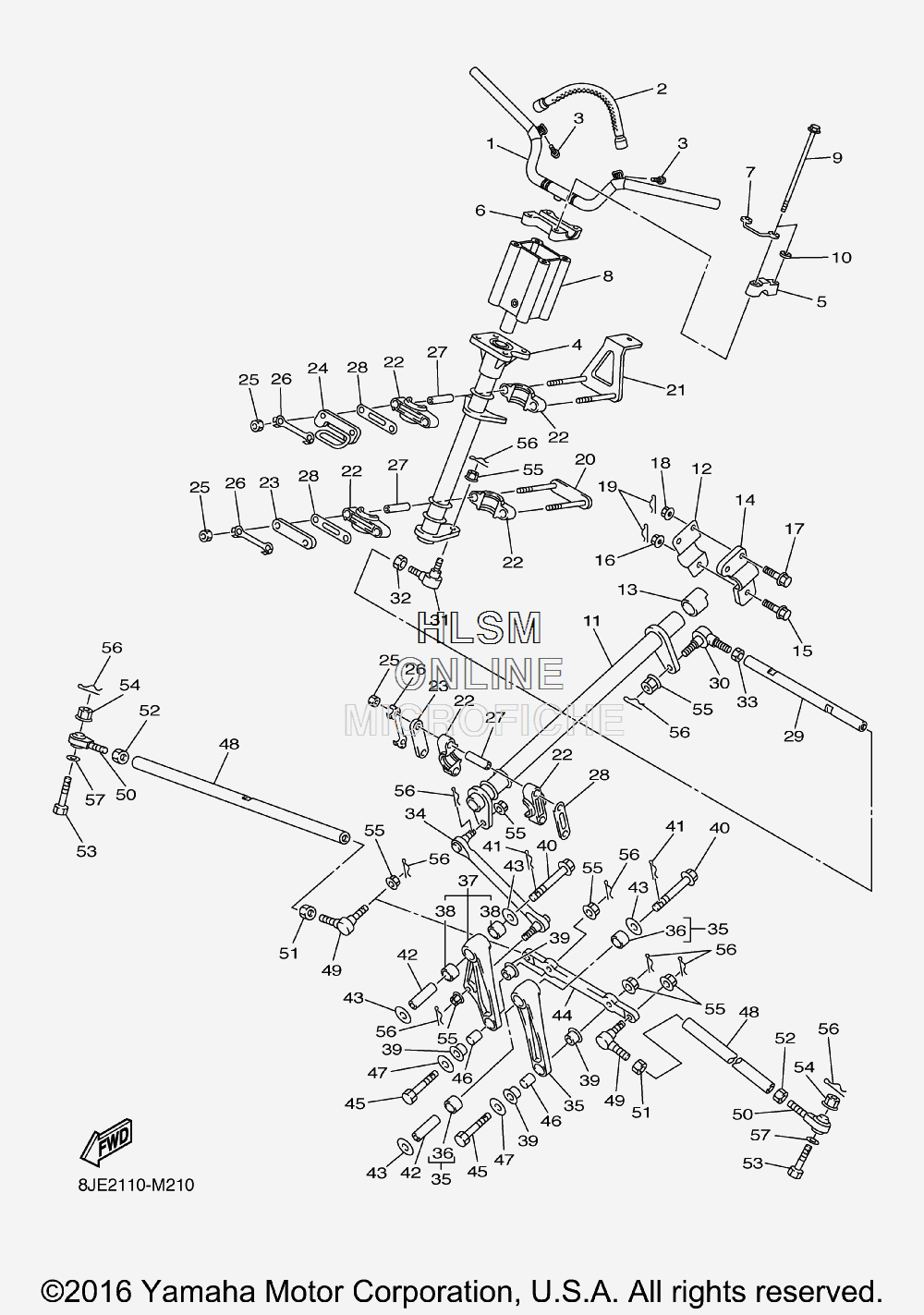

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha RS VIKING PROFESSIONAL - 2015 года выпуска
-
№АртикулНазвание
-
18FN-26110-10-00 HANDLE COMP.HANDLE COMP.
-
28FS-23829-00-00 STRAP, STEERINGSTRAP, STEERING
-
392014-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
48FA-23813-01-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
58K1-23814-00-00 HOLDER, HANDLEHOLDER, HANDLE
-
68ED-23442-00-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
78DF-23857-00-00 HOLDERHOLDER
-
88FK-2381B-00-00 JOINTJOINT
-
990105-08072-00 BOLT, FLANGEBOLT, FLANGE
-
1090201-08020-00 WASHER, PLATEWASHER, PLATE
-
118FA-23811-00-00 COLUMN, STEERINGCOLUMN, STEERING
-
128FA-23818-02-00 COVER, STEERINGCOVER, STEERING
-
138FA-23873-01-00 BEARING, STEERING UPPERBEARING, STEERING UPPER
-
148FN-23867-00-00 HOLDER 2HOLDER 2
-
1590105-10549-00 BOLT, FLANGEBOLT, FLANGE
-
1695602-10200-00 NUT, U FLANGENUT, U FLANGE
-
1790105-08552-00 BOLT, FLANGEBOLT, FLANGE
-
1895602-08200-00 NUT, U FLANGENUT, U FLANGE
-
1990468-12006-00 CLIPCLIP
-
208FA-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
218FN-2376H-00-00 HOLDER, BEARINGHOLDER, BEARING
-
228FA-23812-00-00 BEARING, STEERINGBEARING, STEERING
-
238FA-23867-00-00 HOLDER 2HOLDER 2
-
248FN-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
2595312-08600-00 NUTNUT
-
261UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
278HF-2412G-00-00 COLLARCOLLAR
-
288FA-23843-00-00 WASHER, PLAINWASHER, PLAIN
-
298FN-23828-00-00 ROD, STEERINGROD, STEERING
-
308CR-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
318CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
3295307-10700-00 NUTNUT
-
3390170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
348FA-23821-00-00 ROD, STEERING RELAYROD, STEERING RELAY
-
358FN-2389K-00-00 ARM PIVOT ASSYARM PIVOT ASSY
-
3690383-17001-00 ...BUSH, FORMED...BUSH, FORMED
-
378FN-2389M-00-00 PIVOT ARM ASSY 2PIVOT ARM ASSY 2
-
3893317-41785-00 ...BEARING...BEARING
-
3990381-14001-00 BUSH, SOLIDBUSH, SOLID
-
4090105-12017-00 BOLT, FLANGEBOLT, FLANGE
-
418FA-2384N-00-00 CLIP, RINGCLIP, RING
-
428FA-2412G-00-00 COLLARCOLLAR
-
4390201-121U3-00 WASHER, PLATEWASHER, PLATE
-
448FN-23826-00-00 ARM, IDLERARM, IDLER
-
4590102-10044-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
4690387-10008-00 COLLARCOLLAR
-
4790201-10742-00 WASHER, PLATEWASHER, PLATE
-
488FN-23831-00-00 ROD, TIEROD, TIE
-
498CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
508FA-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
5195307-10700-00 NUTNUT
-
5290170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
5390102-10044-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
5495702-10300-00 NUT, NYLONNUT, NYLON
-
5595702-10500-00 NUT, FLANGENUT, FLANGE
-
5691402-20020-00 PIN, COTTERPIN, COTTER
-
5790201-08759-00 WASHER, PLATEWASHER, PLATE
