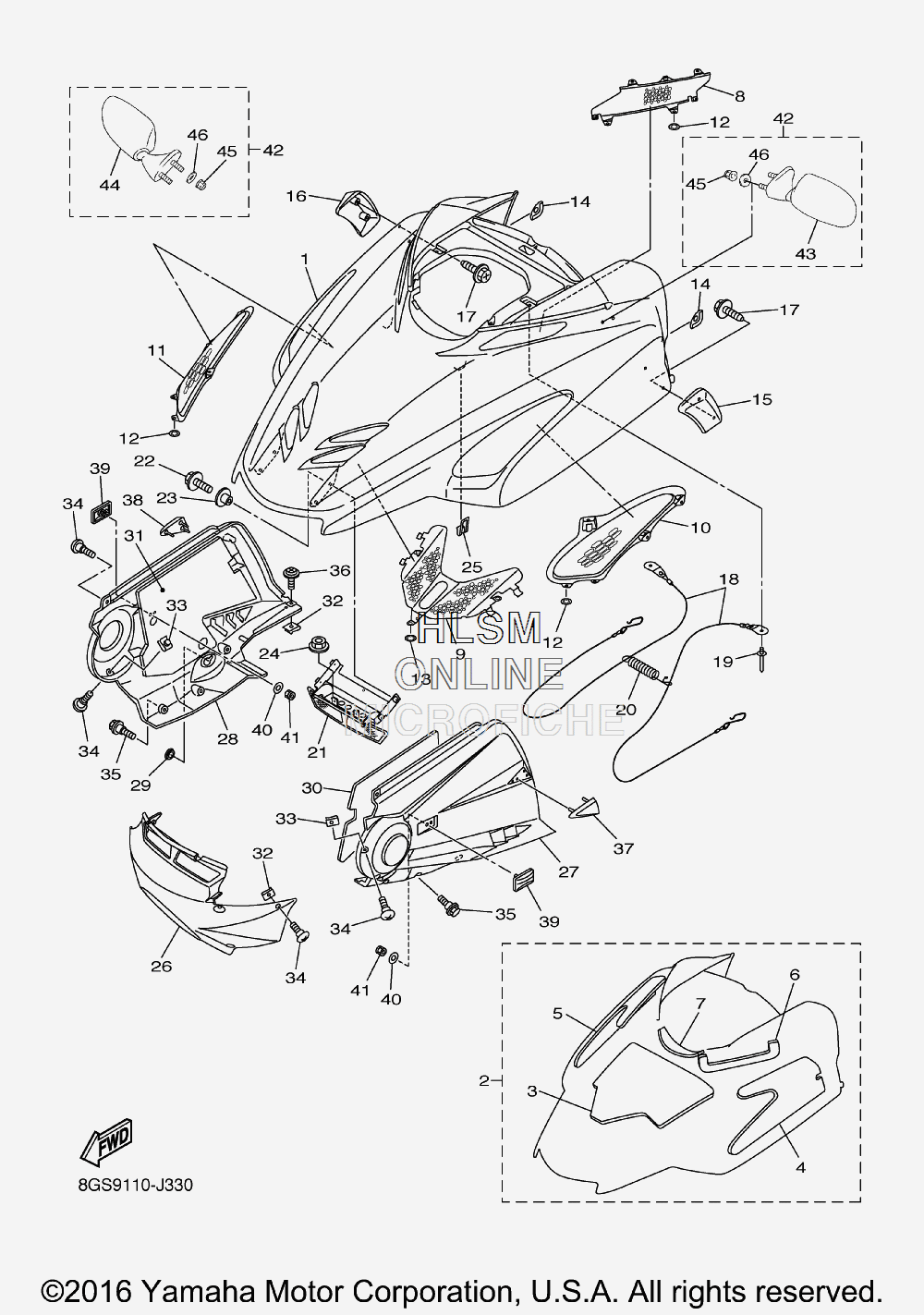

HOOD ASSY для Yamaha RS VIKING PROFESSIONAL - 2015 года выпуска
-
№АртикулНазвание
-
18FN-77111-00-P5 SHROUD (BWC1 - BLUISH WHITE)SHROUD (BWC1 - BLUISH WHITE)
-
18FN-77111-00-P7 SHROUD (MNM3 - MAT GRAY METALLIC)SHROUD (MNM3 - MAT GRAY METALLIC)
-
28FN-W7726-00-00 LINING SETLINING SET
-
38FN-77271-00-00 ...DAMPER, NOISE 11...DAMPER, NOISE 11
-
48FN-77272-00-00 ...DAMPER, NOISE 12...DAMPER, NOISE 12
-
58FN-77273-00-00 ...DAMPER, NOISE 13...DAMPER, NOISE 13
-
68FN-77264-00-00 ...LINING, SHROUD 4...LINING, SHROUD 4
-
78DS-84366-00-00 ...DAMPER, HEADLIGHT 1...DAMPER, HEADLIGHT 1
-
88FN-77130-00-00 LOUVER COMP.LOUVER COMP.
-
98FN-77134-00-00 LOUVER 4LOUVER 4
-
108FN-77109-00-00 LOUVER 5LOUVER 5
-
118FN-77108-00-00 LOUVER 6LOUVER 6
-
1290183-05068-00 NUT, SPRINGNUT, SPRING
-
1390183-08065-00 NUT, SPRINGNUT, SPRING
-
148FA-77167-10-00 TRIM 3TRIM 3
-
158FN-77161-00-00 STRIP, WEATHER 1STRIP, WEATHER 1
-
168FN-77162-00-00 STRIP, WEATHER 2STRIP, WEATHER 2
-
1797702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
188FN-77118-00-00 STOPPER, SHROUDSTOPPER, SHROUD
-
1990267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
2089A-77159-00-00 CLAMP, RODCLAMP, ROD
-
218FN-77140-00-00 HINGE ASSYHINGE ASSY
-
2295802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2390387-06681-00 COLLARCOLLAR
-
2495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
258FA-77135-00-00 CLAMP 1CLAMP 1
-
268FN-21912-00-00 PANEL, SUB FRAME 1PANEL, SUB FRAME 1
-
278ES-2197H-01-00 HOOD 3HOOD 3
-
288GS-2198H-00-00 HOOD 4HOOD 4
-
2990338-30256-00 PLUGPLUG
-
308ES-77276-00-00 DAMPER, NOISE 16DAMPER, NOISE 16
-
318GS-77277-01-00 DAMPER, NOISE 17DAMPER, NOISE 17
-
3290183-06053-00 NUT, SPRINGNUT, SPRING
-
3390183-06100-00 NUT, SPRINGNUT, SPRING
-
3490154-06009-00 SCREW, BINDINGSCREW, BINDING
-
3590109-06220-00 BOLTBOLT
-
3690159-06011-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
378FA-77561-00-00 PROTECTOR, SIDE 1PROTECTOR, SIDE 1
-
388FA-77562-00-00 PROTECTOR, SIDE 2PROTECTOR, SIDE 2
-
398FR-77185-00-00 PLATE 1PLATE 1
-
4090201-05036-00 WASHER, PLATEWASHER, PLATE
-
4195702-05300-00 NUT, NYLONNUT, NYLON
-
428CR-W2628-10-00 REAR VIEW MIRROR SETREAR VIEW MIRROR SET
-
434SV-26280-00-00 ...REAR VIEW MIRROR ASSY (LEFT)...REAR VIEW MIRROR ASSY (LEFT)
-
444SV-26290-00-00 ...REAR VIEW MIRROR ASSY (RIGHT)...REAR VIEW MIRROR ASSY (RIGHT)
-
4595602-06200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
4690201-06072-00 ...WASHER, PLATE...WASHER, PLATE
