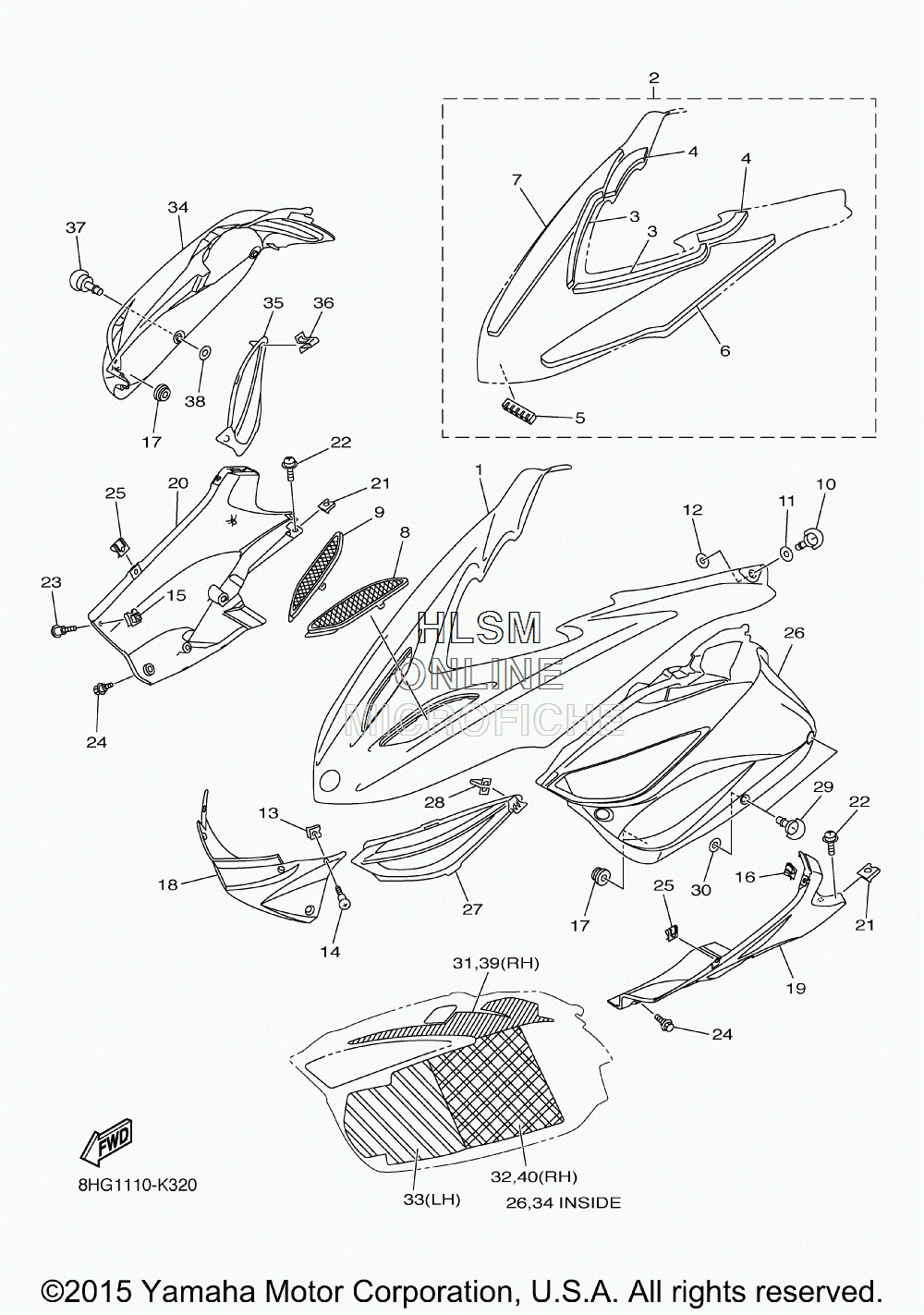

HOOD ASSY для Yamaha APEX XTX - 2016 года выпуска
-
№АртикулНазвание
-
18HG-77111-00-P7 SHROUD (MNM3 - MAT GRAY)SHROUD (MNM3 - MAT GRAY)
-
28HG-W7726-00-00 LINING SETLINING SET
-
38HG-77165-00-00 ...TRIM 1...TRIM 1
-
48HG-77166-00-00 ...TRIM 2...TRIM 2
-
58FP-77123-00-00 ...GUIDE 1...GUIDE 1
-
68HG-77271-00-00 ...DAMPER, NOISE 11...DAMPER, NOISE 11
-
78HG-77271-10-00 ...DAMPER, NOISE 11...DAMPER, NOISE 11
-
88HG-77133-00-00 LOUVER 3LOUVER 3
-
98HG-77134-00-00 LOUVER 4LOUVER 4
-
108HG-28386-00-00 HEADHEAD
-
118HG-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
128HR-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
1390183-06053-00 NUT, SPRINGNUT, SPRING
-
1490154-06009-00 SCREW, BINDINGSCREW, BINDING
-
1590183-06100-00 NUT, SPRINGNUT, SPRING
-
164XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
1790480-13019-00 GROMMETGROMMET
-
188FA-21912-00-00 PANEL, SUB FRAME 1PANEL, SUB FRAME 1
-
198FP-21982-00-00 HOOD 1HOOD 1
-
208FP-21983-00-00 HOOD 2HOOD 2
-
2190183-06053-00 NUT, SPRINGNUT, SPRING
-
2290159-06011-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
2390154-06009-00 SCREW, BINDINGSCREW, BINDING
-
2490109-06220-00 BOLTBOLT
-
254XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
268HG-2197H-00-00 HOOD 3HOOD 3
-
278HG-77109-00-00 LOUVER 5LOUVER 5
-
2890468-06001-00 CLIPCLIP
-
298HG-28386-00-00 HEADHEAD
-
308HR-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
318HG-77272-00-00 DAMPER, NOISE 12DAMPER, NOISE 12
-
328HG-77273-00-00 DAMPER, NOISE 13DAMPER, NOISE 13
-
338HG-77274-00-00 DAMPER, NOISE 14DAMPER, NOISE 14
-
348HG-2198H-00-00 HOOD 4HOOD 4
-
358HG-77108-00-00 LOUVER 6LOUVER 6
-
3690468-06001-00 CLIPCLIP
-
378HG-28386-00-00 HEADHEAD
-
388HR-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
398HG-77275-00-00 DAMPER, NOISE 15DAMPER, NOISE 15
-
408HG-77276-00-00 DAMPER, NOISE 16DAMPER, NOISE 16
