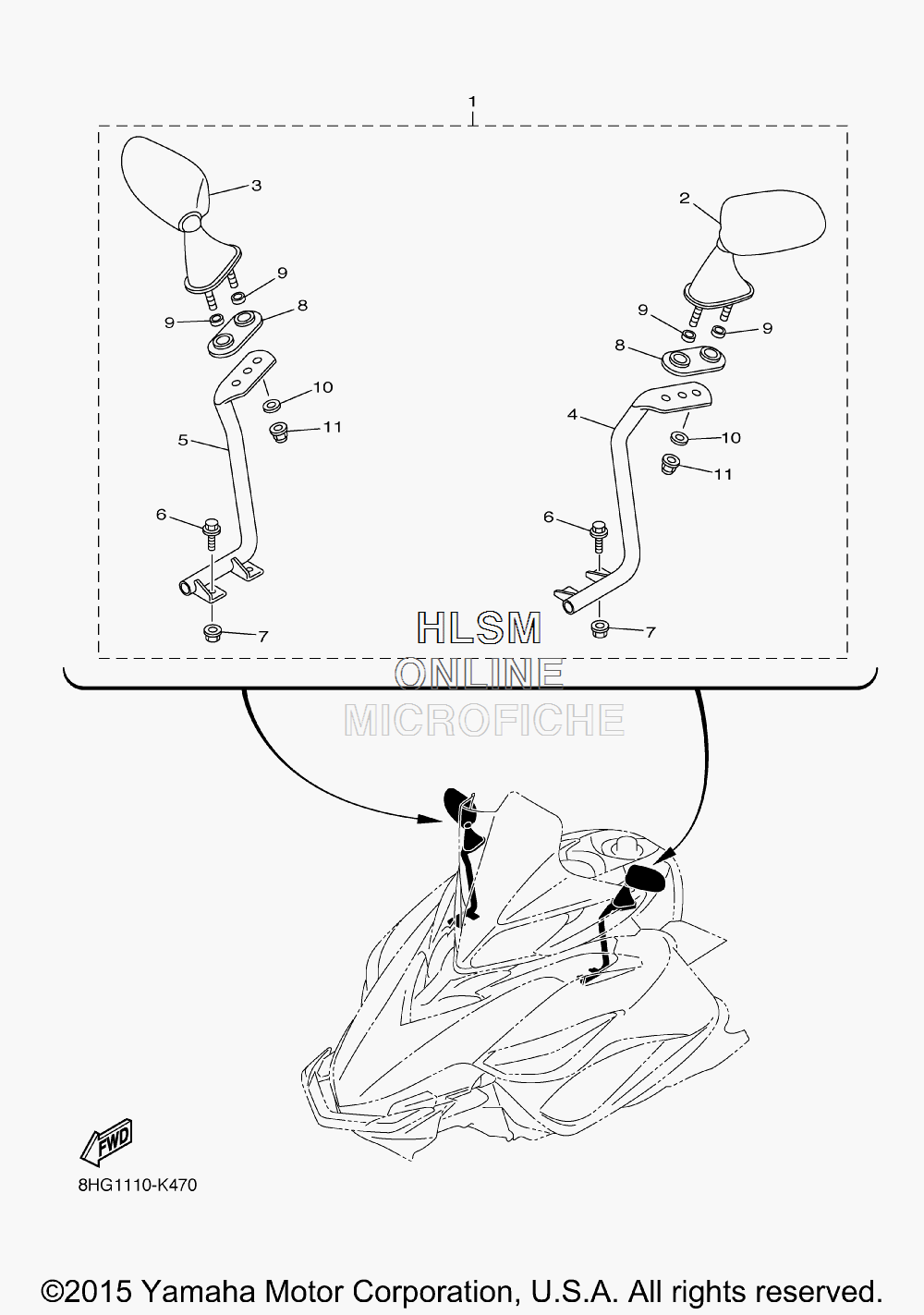

REAR VIEW MIRROR ASSY (OPTION) для Yamaha APEX XTX - 2016 года выпуска
-
№АртикулНазвание
-
18HG-W2628-00-00 REAR VIEW MIRROR SET (OPT)REAR VIEW MIRROR SET (OPT)
-
24SV-26280-00-00 ...REAR VIEW MIRROR ASSY (LEFT)...REAR VIEW MIRROR ASSY (LEFT)
-
34SV-26290-00-00 ...REAR VIEW MIRROR ASSY (RIGHT...REAR VIEW MIRROR ASSY (RIGHT
-
48HG-78386-00-00 ...BRACKET MIRROR 3...BRACKET MIRROR 3
-
58HG-78387-00-00 ...BRACKET MIRROR 4...BRACKET MIRROR 4
-
695822-06012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
795702-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
85VY-26298-00-00 ...PLATE, MIRROR FITTING 1...PLATE, MIRROR FITTING 1
-
990387-06022-00 ...COLLAR...COLLAR
-
1090201-06727-00 ...WASHER, PLATE...WASHER, PLATE
-
1190176-06055-00 ...NUT, CROWN...NUT, CROWN
