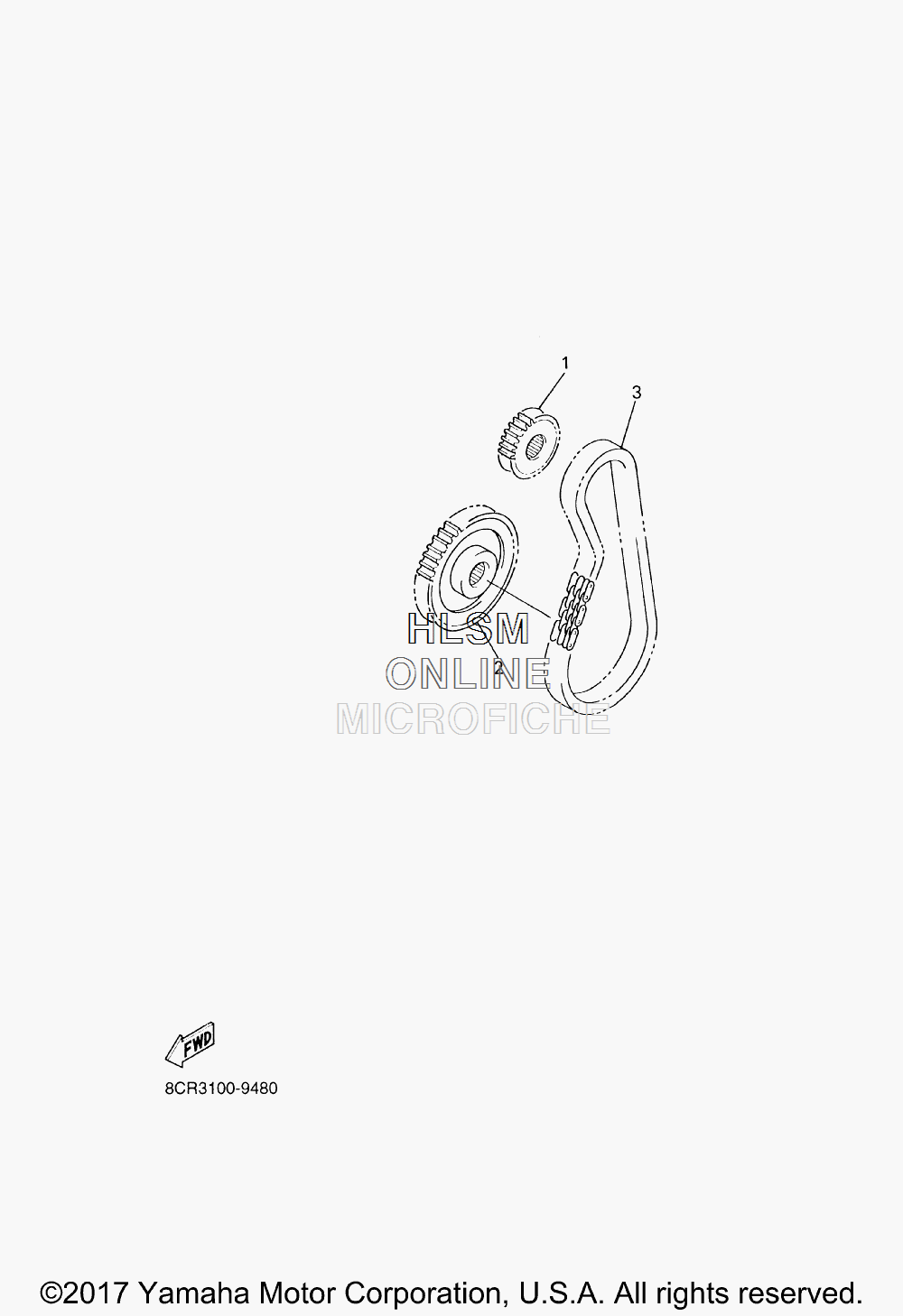

CHAINCASE - SPROCKET AND CHAINS (OPTION) для Yamaha SIDEWINDER S TX 137 DX - 2017 года выпуска
-
№АртикулНазвание
-
18KC-E769A-10-00 DRIVE SPROCKET ASSY. (21T)DRIVE SPROCKET ASSY. (21T)
-
18KC-E769A-40-00 DRIVE SPROCKET ASSY. (24T)DRIVE SPROCKET ASSY. (24T)
-
28JP-G7587-00-00 SPROCKET, CHAIN DRIVEN (50T)SPROCKET, CHAIN DRIVEN (50T)
-
28JP-G7587-10-00 SPROCKET, CHAIN DRIVEN (41T)SPROCKET, CHAIN DRIVEN (41T)
-
28JP-G7587-90-00 SPROCKET, CHAIN DRIVEN (49T)SPROCKET, CHAIN DRIVEN (49T)
-
38KC-RAM01-10-00 CHAIN, BWA (90L)CHAIN, BWA (90L)
-
38KC-RAM01-20-00 CHAIN, BWA (86L)CHAIN, BWA (86L)
-
38KC-RAM01-00-00 CHAIN, BWA (92L)CHAIN, BWA (92L)
